Extended warranty · DS124

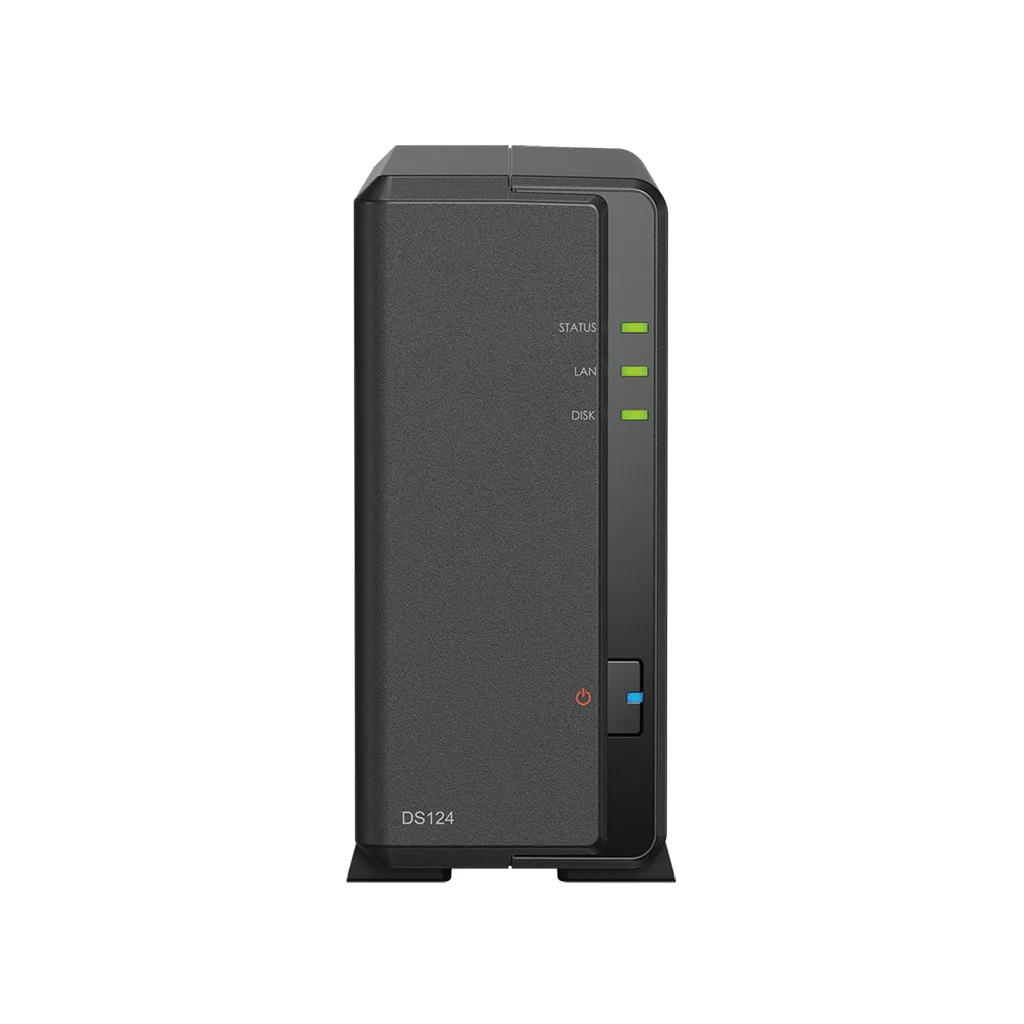

Synology DS124 1 Bay DiskStation NAS 2 Year warranty

Name: Synology DS124 1 Bay DiskStation NAS 2 Year warranty
Brand: Synology
SKU: DS124
Price: 369.00 AUD
Availability: InStock

Smooth data management in a mini form factor

$369.00inc. GST

In stock, 20 available

Australian stock, GST tax invoice
Genuine Synology, full local warranty
Dispatched in 1 business day when in stock
Ask a question about this model

Processor: Realtek RTD1619B
Memory: 1 GB DDR4 non-ECC
Bays: 1 × 3.5" SATA HDD or 2.5" SATA SSD
1GbE LAN ports: 1

Data sheet and downloads on synology.com

Productivity in the private cloud

DS124 is designed for professionals to share, sync, and work together more efficiently.

Store, share, and protect

Use your DS124 to manage all your documents, photos, and other files, or protect your physical assets with professional video surveillance.

About the DS124

Mini Data Management Hub - Bring scattered data under control with the DS124, a super compact data hub that empowers effortless data centralization, organization, and sharing. License-free solutions in Synology DiskStation Manager (DSM) allow you to establish a secure private cloud, conveniently access files from any device, and collaborate seamlessly with partners or clients.

Key points

Bring scattered data under control with the DiskStation DS124 1-Bay NAS Enclosure
1 x 3.5/2.5" SATA HDD/SSD Drive Bay
1.7 GHz Realtek RTD1619B Quad-Core
1GB DDR4 RAM
1 x Gigabit Ethernet Port
2 x USB-A 3.2 Gen 1 Ports
60mm Cooling Fan

Specifications

As published by Synology for the DS124. Confirm the latest data sheet before relying on a figure for a tender.

CPU
CPU Model	Realtek RTD1619B
CPU Quantity	1
CPU Cores	4
CPU Threads	4
CPU Architecture	64-bit
CPU Frequency	1.7 GHz
Memory
System Memory	1 GB DDR4 non-ECC
Storage
Drive Bays	1 × 3.5" SATA HDD or 2.5" SATA SSD
External Ports
RJ-45 1GbE LAN Port	1
USB 3.2 Gen 1 Port	2
Appearance
Size (Height × Width × Depth)	166 mm × 71 mm × 224 mm
Weight	0.7 kg
Others
System Fan	60 mm × 60 mm × 1 pcs
Fan Speed Mode	Full-Speed Mode Cool Mode Quiet Mode Low-power Mode
Noise Level	19.0 dB(A)
Power Supply Unit / Adapter	36 watts
AC Input Power Voltage	100V to 240V AC
Power Frequency	50/60 Hz, Single Phase
Power Consumption	10.69 watts (Access) 3.44 watts (HDD Hibernation)
British Thermal Unit	36.50 BTU/hr (Access) 11.75 BTU/hr (HDD Hibernation)
Temperature
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20°C to 60°C (-5°F to 140°F)
Operating Humidity	8% to 80% RH
Storage Humidity	5% to 95% RH
Warranty

Maximum Single Volume Size	108 TB
Maximum Internal Volume Number	1
Supported RAID Type	Basic

Internal Drives	Btrfs ext4
External Drives	Btrfs ext4 ext3 FAT32 NTFS HFS+ exFAT

File Protocol	SMB AFP NFS FTP WebDAV Rsync
Maximum Number of SMB Connections (FSCT-Based)	5

Maximum Local User Accounts	256
Maximum Local Groups	64
Maximum Shared Folder	64
Maximum Shared Folder Sync Tasks	2

Syslog Events per Second	400

Supported Protocols	SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV
Supported Browsers	Chrome Firefox Edge Safari
Supported Language	English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svenska, Nederlands, Русский, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Český, ภาษาไทย, 日本語, 한국어, 繁體中文, 简体中文
Download Station
Maximum Concurrent Download Tasks	80

Maximum iSCSI Target Number	2
Maximum LUN	4

Maximum Snapshots per Shared Folder	128
Maximum Snapshots per LUN	32
Maximum Snapshots per System	1,024
Maximum Replication Tasks for Shared Folders	16
Maximum Replication Tasks for LUNs	8
Maximum Replication Tasks per System	16

Default Licenses	2
Maximum IP Cameras and Total FPS (H.264)	1080p: 12 channels, 300 FPS 3M: 12 channels, 200 FPS 5M: 12 channels, 140 FPS 4K: 9 channels, 90 FPS
Maximum IP Cameras and Total FPS (H.265)	1080p: 12 channels, 360 FPS 3M: 12 channels, 240 FPS 5M: 12 channels, 200 FPS 4K: 12 channels, 140 FPS

Maximum Number of Users	5
Maximum Number of Hosted Files	100,000 (applies to files indexed or hosted by . For file access through other standard protocols, refer to the File Services section above)

Maximum Number of Users	5

Maximum Connections	2
