DiskStation XS · DS1823XS+

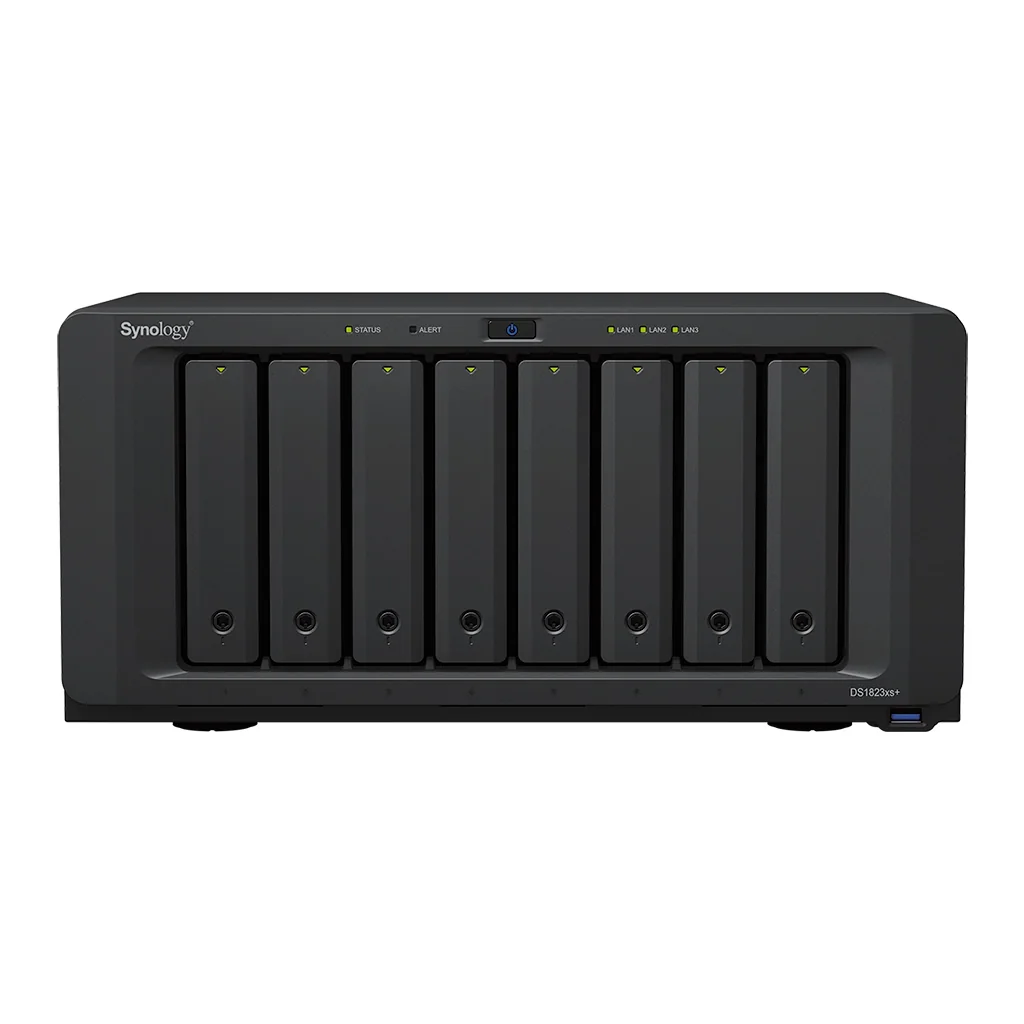

Synology DiskStation DS1823XS+ 8-bay NAS
Flexible large-scale storage for small and medium-sized businesses
$4,059.00inc. GST
Ask about availabilityOut of stock
Sold diskless. Add compatible drives below and we will ship everything together.
- Australian stock, GST tax invoice
- Genuine Synology, full local warranty
- Dispatched in 1 business day when in stock
- Ask a question about this model
- Processor
- AMD Ryzen V1780B
- Memory
- 8 GB DDR4 ECC SODIMM
- Bays
- 8 × 3.5" SATA HDD or 2.5" SATA SSD 2 × M.2 2280 NVMe SSD
- Max bays with expansion
- 18 (DX517 × 2)
- 1GbE LAN ports
- 2
- 10GbE LAN ports
- 1
Get more with DiskStation Manager
Take advantage of a host of native productivity, management, and security solutions available in the web-based Synology DSM operating system.
About the DS1823XS+
The DS1823xs+ is a powerful 8-bay storage server that can easily be deployed anywhere to provide central data storage and sharing, endpoint and server backup, VM storage, surveillance management, and other business applications. It is perfect in settings where no dedicated server rack or data center is available. With over 3,100/2,600 MB/s sequential read/write performance, 144 TB of raw storage and the option to further boost I/O speeds through SSD cache, the DS1823xs+ provides powerful and flexible storage with built-in data rotection capabilities.
Key points
- Combine built-in 10GbE and optional high-speed NIC for over 3,100 MB/s sequential read performance
- Built-in M.2 2280 NVMe SSD slots permit cache acceleration without using storage drive bays
- Back up critical data and reduce your Recovery Time Objective (RTO) with Snapshot Replication
- Full Backup Suite - Cloud Sync / Active Backup for Office 365/G Suite / Hyper Backup
- Virtualization-Ready Platform - Synology Virtual Machine Manager (VMM)
- Synology High Availability
- Lan -1 x 1GbE RJ-45 (out-of-band management and data transfer) + 2 x 1GbE RJ-45 (data transfer) + 1 x 10GbE RJ-45
- Maximum IP camera: 75 (total of 2,250 FPS at 720p, H.264) (Including two free camera licenses. Additional cameras require the purchasing of additional licenses)
Specifications
As published by Synology for the DS1823XS+. Confirm the latest data sheet before relying on a figure for a tender.
| CPU | |
|---|---|
| CPU Model | AMD Ryzen V1780B |
| CPU Quantity | 1 |
| CPU Cores | 4 |
| CPU Threads | 8 |
| CPU Architecture | 64-bit |
| CPU Frequency | 3.35 (base) / 3.6 (turbo) GHz |
| Memory | |
| System Memory | 8 GB DDR4 ECC SODIMM |
| Memory Module Pre-installed | 8 GB (8 GB × 1) |
| Total Memory Slots | 2 |
| Maximum Memory Capacity | 32 GB (16 GB × 2) |
| Storage | |
| Drive Bays | 8 × 3.5" SATA HDD or 2.5" SATA SSD 2 × M.2 2280 NVMe SSD |
| Maximum Drive Bays with Expansion Unit | 18 (DX517 × 2) |
| External Ports | |
| RJ-45 1GbE LAN Port | 2 |
| RJ-45 10GbE LAN Port | 1 |
| Out-of-Band Management LAN Port | 1 |
| USB 3.2 Gen 1 Port | 3 |
| Expansion Port | 2 |
| Expansion Port Type | eSATA |
| PCIe | |
| PCIe Expansion | 1 × Gen3 x8 slot (x4 link) |
| Appearance | |
| Size (Height × Width × Depth) | 166 mm × 343 mm × 243 mm |
| Weight | 6.2 kg |
| Others | |
| System Fan | 120 mm × 120 mm × 2 pcs |
| Fan Speed Mode | Full-Speed Mode Cool Mode Quiet Mode |
| Noise Level | 23.6 dB(A) |
| Power Supply Unit / Adapter | 250 watts |
| AC Input Power Voltage | 100V to 240V AC |
| Power Frequency | 50/60 Hz, Single Phase |
| Power Consumption | 87.93 watts (Access) 28.37 watts (HDD Hibernation) |
| British Thermal Unit | 300.23 BTU/hr (Access) 96.87 BTU/hr (HDD Hibernation) |
| Temperature | |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) |
| Operating Humidity | 8% to 80% RH |
| Storage Humidity | 5% to 95% RH |
| Warranty | |
| Maximum Single Volume Size | 200 TB (32 GB memory required) 108 TB |
| Maximum Internal Volume Number | 256 |
| Supported RAID Type | RAID F1 Basic JBOD RAID 0 RAID 1 RAID 5 RAID 6 RAID 10 |
| RAID Migration | Basic to RAID 1 Basic to RAID 5 RAID 1 to RAID 5 RAID 5 to RAID 6 |
| Volume Expansion with Larger HDDs | RAID F1 RAID 1 RAID 5 RAID 6 RAID 10 |
| Volume Expansion by Adding a HDD | RAID F1 JBOD RAID 5 RAID 6 |
| Global Hot Spare Supported RAID Type | RAID F1 RAID 1 RAID 5 RAID 6 RAID 10 |
| Internal Drives | Btrfs ext4 |
| External Drives | Btrfs ext4 ext3 FAT32 NTFS HFS+ exFAT |
| File Protocol | SMB AFP NFS FTP WebDAV Rsync |
| Maximum Number of SMB Connections (FSCT-Based) | 340 |
| Maximum Local User Accounts | 2,048 |
| Maximum Local Groups | 512 |
| Maximum Shared Folder | 512 |
| Maximum Shared Folder Sync Tasks | 12 |
| Hybrid Share Folder Number | 15 |
| Syslog Events per Second | 3,000 |
| Virtualization | |
| VMware vSphere | ESXi 8.0 U2, ESXi 8.0 U1, ESXi 8.0, ESXi 7.0 U3, ESXi 7.0 U2, ESXi 7.0 U1, ESXi 7.0, ESXi 6.7 U3, ESXi 6.7 U2, ESXi 6.7 U1, ESXi 6.7, ESXi 6.5 U3, ESXi 6.5 U2, ESXi 6.5 U1, ESXi 6.5 |
| Microsoft Hyper-V | Windows Server 2025, Windows Server 2022 |
| Citrix XenServer | XenServer 8.4, XenServer 8, Citrix Hypervisor 8.2 LTSR CU1 |
| OpenStack | Cinder |
| Supported Protocols | SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, Fibre Channel, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV |
| Supported Browsers | Chrome Firefox Edge Safari |
| Supported Language | English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svenska, Nederlands, Русский, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Český, ภาษาไทย, 日本語, 한국어, 繁體中文, 简体中文 |
| Synology AI Console | |
| Maximum De-Identification Rate | 340 words per second |
| Maximum Number of Users | 400 |
| Download Station | |
| Maximum Concurrent Download Tasks | 80 |
| Maximum iSCSI Target Number | 64 |
| Maximum LUN | 128 |
| Free Email Accounts | 5 |
| Maximum Number of Users | 710 |
| Maximum Snapshots per Shared Folder | 256 |
| Maximum Snapshots per LUN | 64 |
| Maximum Snapshots per System | 4,096 |
| Maximum Replication Tasks for Shared Folders | 32 |
| Maximum Replication Tasks for LUNs | 16 |
| Maximum Replication Tasks per System | 32 |
| Default Licenses | 2 |
| Maximum IP Cameras and Total FPS (H.264) | 1080p: 75 channels, 2100 FPS 3M: 75 channels, 1500 FPS 5M: 75 channels, 900 FPS 4K: 55 channels, 550 FPS |
| Maximum IP Cameras and Total FPS (H.265) | 1080p: 75 channels, 2250 FPS 3M: 75 channels, 2250 FPS 5M: 75 channels, 1500 FPS 4K: 75 channels, 900 FPS |
| Maximum Number of Users | 610 |
| Maximum Number of Hosted Files | 5,000,000 (applies to files indexed or hosted by . For file access through other standard protocols, refer to the File Services section above) |
| Maximum Number of Users | 590 |
| Recommended Virtual Machine Instances | 8 |
| Recommended Virtual DSM Number | 8 (including 1 Free License) |
| Maximum Connections | 12 |
