DiskStation Value · DS223

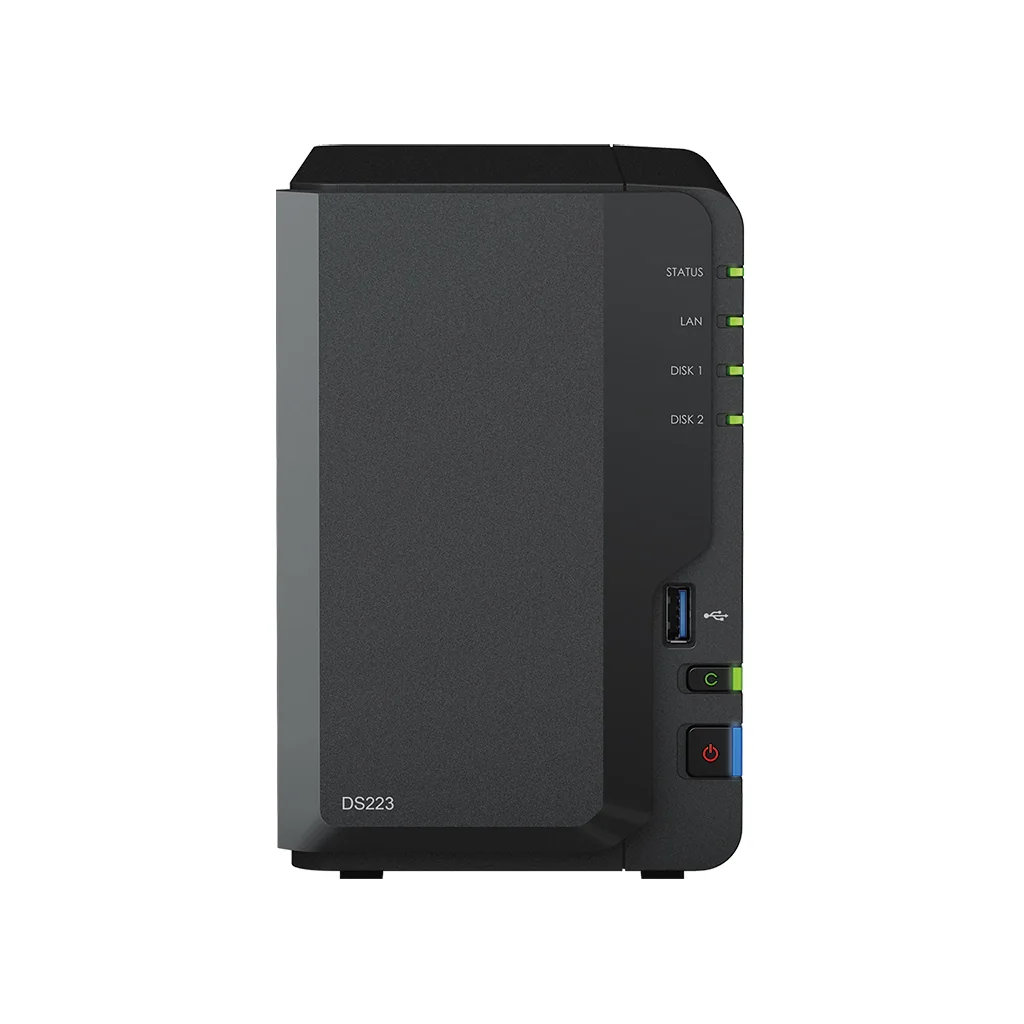

Synology DiskStation DS223 2-bay NAS

Name: Synology DiskStation DS223 2-bay NAS
Brand: Synology
SKU: DS223
Price: 689.00 AUD
Availability: InStock

Data management platform for home and small office

$689.00inc. GST

In stock, 31 available

Sold diskless. Add compatible drives below and we will ship everything together.

Australian stock, GST tax invoice
Genuine Synology, full local warranty
Dispatched in 1 business day when in stock
Ask a question about this model

Processor: Realtek RTD1619B
Memory: 2 GB DDR4 non-ECC
Bays: 2 × 3.5" SATA HDD or 2.5" SATA SSD
1GbE LAN ports: 1

Data sheet and downloads on synology.com

Private cloud made easy

Import data from PCs, Macs, and other external storage devices at a 14% faster rate and keep all your devices in sync for smoother file management.

Your data is in safe hands

Not all data storage is created equal. Synology DiskStation Manager (DSM), the operating system that powers the DS223, leverages the efficient Btrfs file system to protect your data against data corruption and roll back any accidental or malicious changes thanks to the snapshot technology.

Versatile NAS for the modern home

Configure your DS223 to best suit your needs thanks to a host of complete solutions designed for every scenario.

Protect your data platform

Add an extra layer of protection to your files with one of the built-in, license-free solutions available to back up your DS223.

About the DS223

Designed with both leisure and work in mind, the entry-level 2-bay DS223 has all the tools you need to create an intuitive and secure platform to centralize, organize, and share your data. Leverage the license-free, built-in solutions available in Synology DiskStation Manager (DSM) to create your own private cloud, access files from any device, and work efficiently on business projects with clients and collaborators.. Synology DS223 is backed by Synology's 2-year limited warranty.

Key points

Versatile 2-bay NAS for small offices and home users
2 GB DDR4 memory
Running on Synology DiskStation Manager (DSM)
Maximum IP cameras: 20 (total of 600 FPS at 720p, H.264) (includes two free camera licenses; additional cameras require the purchasing of additional licenses)
2 year warranty

Specifications

As published by Synology for the DS223. Confirm the latest data sheet before relying on a figure for a tender.

CPU
CPU Model	Realtek RTD1619B
CPU Quantity	1
CPU Cores	4
CPU Threads	4
CPU Architecture	64-bit
CPU Frequency	1.7 GHz
Memory
System Memory	2 GB DDR4 non-ECC
Storage
Drive Bays	2 × 3.5" SATA HDD or 2.5" SATA SSD
External Ports
RJ-45 1GbE LAN Port	1
USB 3.2 Gen 1 Port	3
Appearance
Size (Height × Width × Depth)	165 mm × 108 mm × 232.7 mm
Weight	1.28 kg
Others
System Fan	92 mm × 92 mm × 1 pcs
Fan Speed Mode	Full-Speed Mode Cool Mode Quiet Mode
Noise Level	14.6 dB(A)
Power Supply Unit / Adapter	60 watts
AC Input Power Voltage	100V to 240V AC
Power Frequency	50/60 Hz, Single Phase
Power Consumption	17.343 watts (Access) 4.08 watts (HDD Hibernation)
British Thermal Unit	59.19 BTU/hr (Access) 13.92 BTU/hr (HDD Hibernation)
Temperature
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20°C to 60°C (-5°F to 140°F)
Operating Humidity	8% to 80% RH
Storage Humidity	5% to 95% RH
Warranty

Maximum Single Volume Size	108 TB
Maximum Internal Volume Number	64
Supported RAID Type	Synology Hybrid RAID Basic JBOD RAID 0 RAID 1
RAID Migration	Basic to RAID 1
Volume Expansion with Larger HDDs	Synology Hybrid RAID RAID 1

Internal Drives	Btrfs ext4
External Drives	Btrfs ext4 ext3 FAT32 NTFS HFS+ exFAT

File Protocol	SMB AFP NFS FTP WebDAV Rsync
Maximum Number of SMB Connections (FSCT-Based)	5

Maximum Local User Accounts	256
Maximum Local Groups	64
Maximum Shared Folder	64
Maximum Shared Folder Sync Tasks	2

Syslog Events per Second	400

Supported Protocols	SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV
Supported Browsers	Chrome Firefox Edge Safari
Supported Language	English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svenska, Nederlands, Русский, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Český, ภาษาไทย, 日本語, 한국어, 繁體中文, 简体中文
Download Station
Maximum Concurrent Download Tasks	80

Maximum iSCSI Target Number	2
Maximum LUN	4

Maximum Snapshots per Shared Folder	128
Maximum Snapshots per LUN	32
Maximum Snapshots per System	1,024
Maximum Replication Tasks for Shared Folders	16
Maximum Replication Tasks for LUNs	8
Maximum Replication Tasks per System	16

Default Licenses	2
Maximum IP Cameras and Total FPS (H.264)	1080p: 20 channels, 460 FPS 3M: 20 channels, 300 FPS 5M: 15 channels, 150 FPS 4K: 11 channels, 110 FPS
Maximum IP Cameras and Total FPS (H.265)	1080p: 20 channels, 500 FPS 3M: 20 channels, 400 FPS 5M: 20 channels, 350 FPS 4K: 20 channels, 200 FPS

Maximum Number of Users	5
Maximum Number of Hosted Files	100,000 (applies to files indexed or hosted by . For file access through other standard protocols, refer to the File Services section above)

Maximum Number of Users	5

Maximum Connections	2
