DiskStation j · DS223J

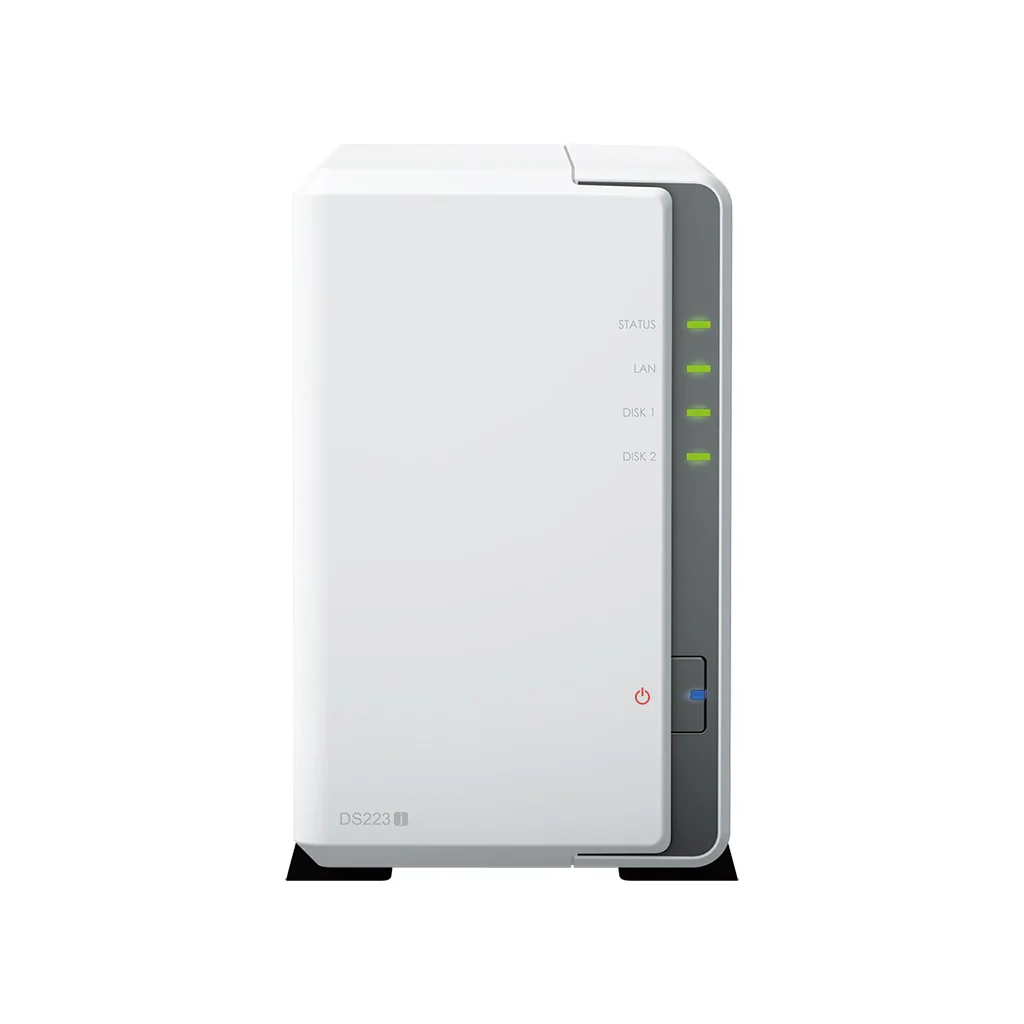

Synology DiskStation DS223J 2-bay NAS

Name: Synology DiskStation DS223J 2-bay NAS
Brand: Synology
SKU: DS223J
Price: 469.00 AUD
Availability: InStock

Compact, quiet, and energy-efficient storage

$469.00inc. GST

In stock, 29 available

Sold diskless. Add compatible drives below and we will ship everything together.

Australian stock, GST tax invoice
Genuine Synology, full local warranty
Dispatched in 1 business day when in stock
Ask a question about this model

Processor: Realtek RTD1619B
Memory: 1 GB DDR4 non-ECC
Bays: 2 × 3.5" SATA HDD or 2.5" SATA SSD
1GbE LAN ports: 1

Data sheet and downloads on synology.com

Built for sharing

DS223j is designed for small teams to share, sync, and collaborate more efficiently.

Your data in safe hands with Btrfs

The advanced Btrfs file system helps safeguard data against corruption through file self-healing and allows for the reversal of unintentional or malicious changes through fast snapshot technology.

Store, share, and protect

Configure your DS223j to manage all your documents, photos, and other files, or protect your physical assets with professional video surveillance.

About the DS223J

The DS223j is an efficient one-stop solution for all your data storage and sharing needs. With two bays of storage and Synology DiskStation Manager (DSM) on board, the DS223j allows you to create a private cloud to protect your files, share your data across several devices, store security footage with intelligent video surveillance tools, and more.

Key points

Designed as an efficient one-stop solution for all your data storage needs
2 x 3.5/2.5" SATA HDD/SSD Drive Bays
1.7 GHz Realtek RTD1619B Quad-Core
1GB of DDR4 RAM
1 x Gigabit Ethernet Port
2 x USB-A 3.2 Gen 1 Ports
RAID 0, 1, Basic, Hybrid, and JBOD

Specifications

As published by Synology for the DS223J. Confirm the latest data sheet before relying on a figure for a tender.

CPU
CPU Model	Realtek RTD1619B
CPU Quantity	1
CPU Cores	4
CPU Threads	4
CPU Architecture	64-bit
CPU Frequency	1.7 GHz
Memory
System Memory	1 GB DDR4 non-ECC
Storage
Drive Bays	2 × 3.5" SATA HDD or 2.5" SATA SSD
External Ports
RJ-45 1GbE LAN Port	1
USB 3.2 Gen 1 Port	2
Appearance
Size (Height × Width × Depth)	165 mm × 100 mm × 225.5 mm
Weight	0.88 kg
Others
System Fan	92 mm × 92 mm × 1 pcs
Fan Speed Mode	Full-Speed Mode Cool Mode Quiet Mode Low-power Mode
Noise Level	18.2 dB(A)
Power Supply Unit / Adapter	60 watts
AC Input Power Voltage	100V to 240V AC
Power Frequency	50/60 Hz, Single Phase
Power Consumption	16.31 watts (Access) 4 watts (HDD Hibernation)
British Thermal Unit	55.62 BTU/hr (Access) 13.64 BTU/hr (HDD Hibernation)
Temperature
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20°C to 60°C (-5°F to 140°F)
Operating Humidity	8% to 80% RH
Storage Humidity	5% to 95% RH
Warranty

Maximum Single Volume Size	108 TB
Maximum Internal Volume Number	64
Supported RAID Type	Synology Hybrid RAID Basic JBOD RAID 0 RAID 1
RAID Migration	Basic to RAID 1
Volume Expansion with Larger HDDs	Synology Hybrid RAID RAID 1

Internal Drives	Btrfs ext4
External Drives	Btrfs ext4 ext3 FAT32 NTFS HFS+ exFAT

File Protocol	SMB AFP NFS FTP WebDAV Rsync
Maximum Number of SMB Connections (FSCT-Based)	5

Maximum Local User Accounts	256
Maximum Local Groups	64
Maximum Shared Folder	64
Maximum Shared Folder Sync Tasks	2

Syslog Events per Second	200

Supported Protocols	SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV
Supported Browsers	Chrome Firefox Edge Safari
Supported Language	English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svenska, Nederlands, Русский, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Český, ภาษาไทย, 日本語, 한국어, 繁體中文, 简体中文
Download Station
Maximum Concurrent Download Tasks	80

Maximum iSCSI Target Number	2
Maximum LUN	4

Maximum Snapshots per Shared Folder	128
Maximum Snapshots per LUN	32
Maximum Snapshots per System	1,024
Maximum Replication Tasks for Shared Folders	16
Maximum Replication Tasks for LUNs	8
Maximum Replication Tasks per System	16

Default Licenses	2
Maximum IP Cameras and Total FPS (H.264)	1080p: 12 channels, 360 FPS 3M: 12 channels, 300 FPS 5M: 12 channels, 150 FPS 4K: 11 channels, 110 FPS
Maximum IP Cameras and Total FPS (H.265)	1080p: 12 channels, 360 FPS 3M: 12 channels, 360 FPS 5M: 12 channels, 350 FPS 4K: 12 channels, 200 FPS

Maximum Number of Users	5
Maximum Number of Hosted Files	100,000 (applies to files indexed or hosted by . For file access through other standard protocols, refer to the File Services section above)

Maximum Number of Users	5

Maximum Connections	2
