DiskStation Plus · DS225+

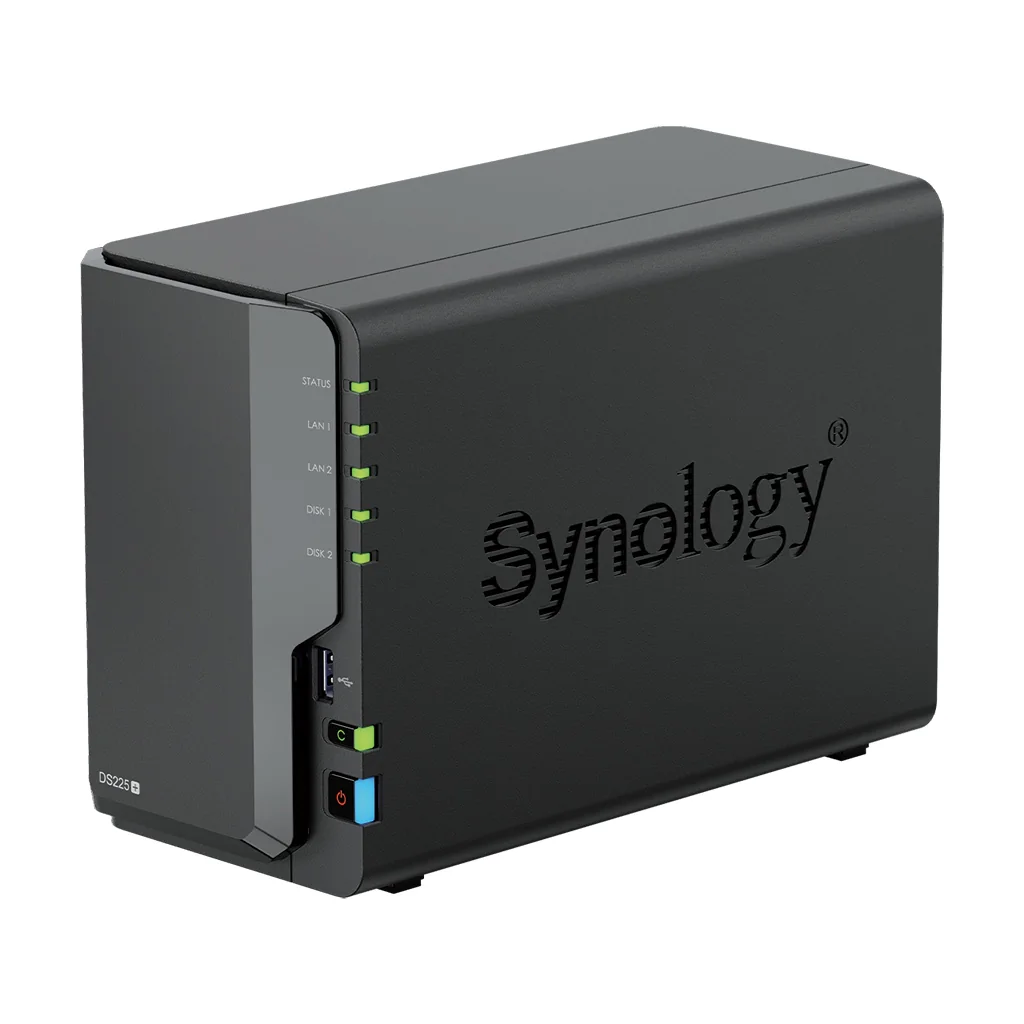

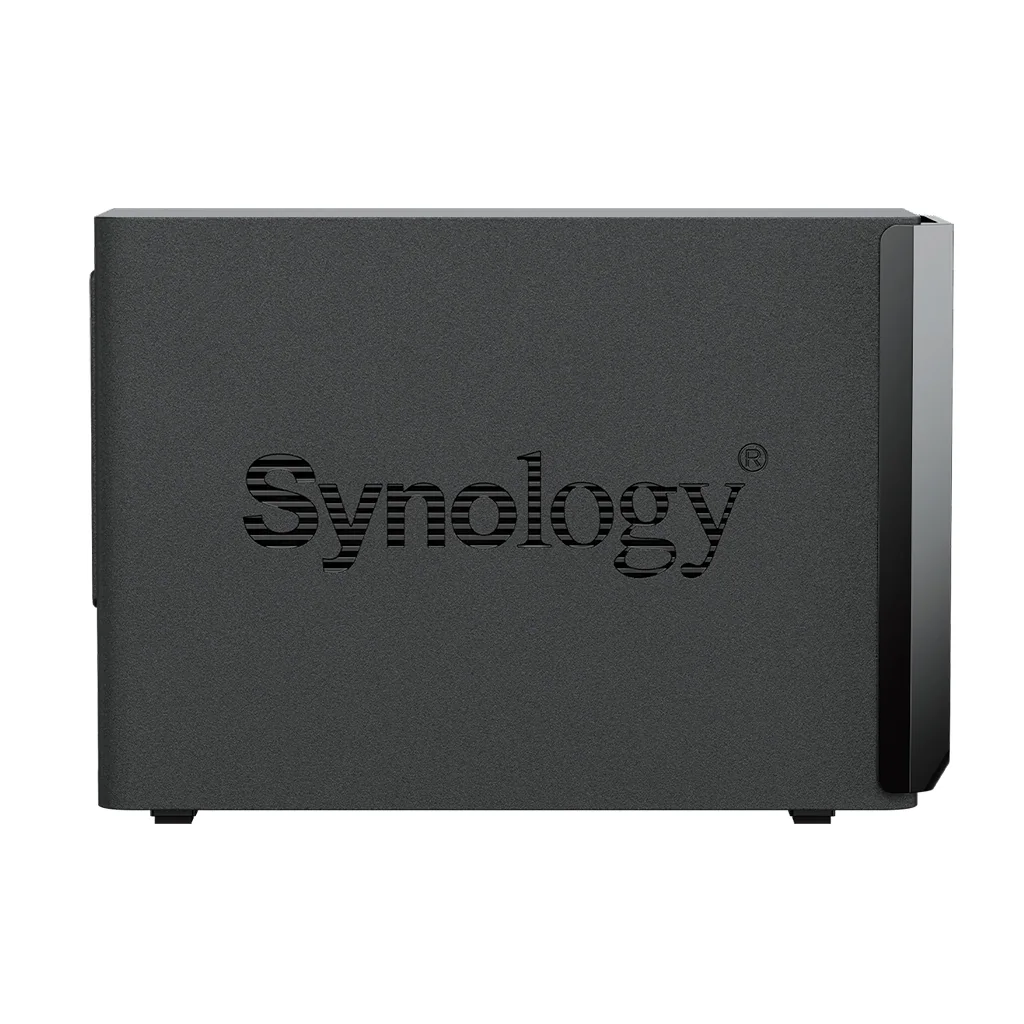

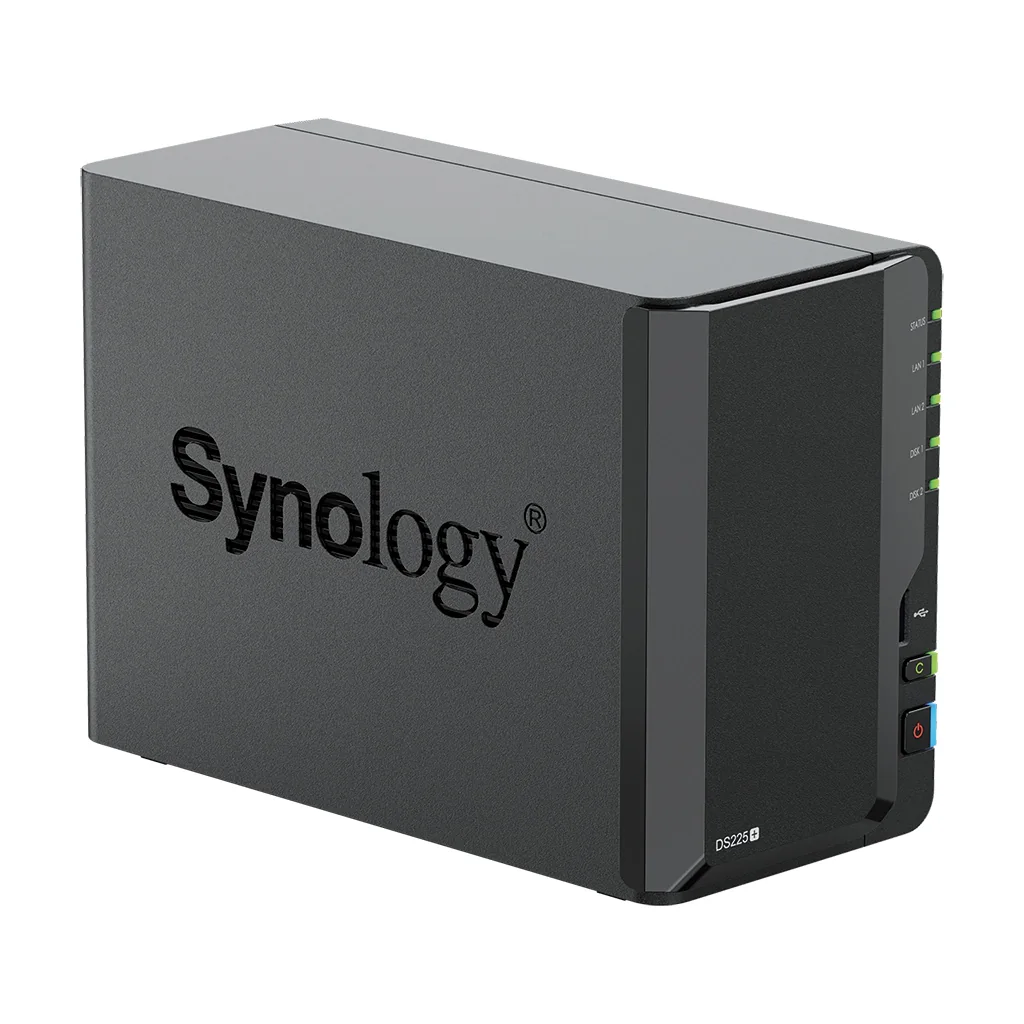

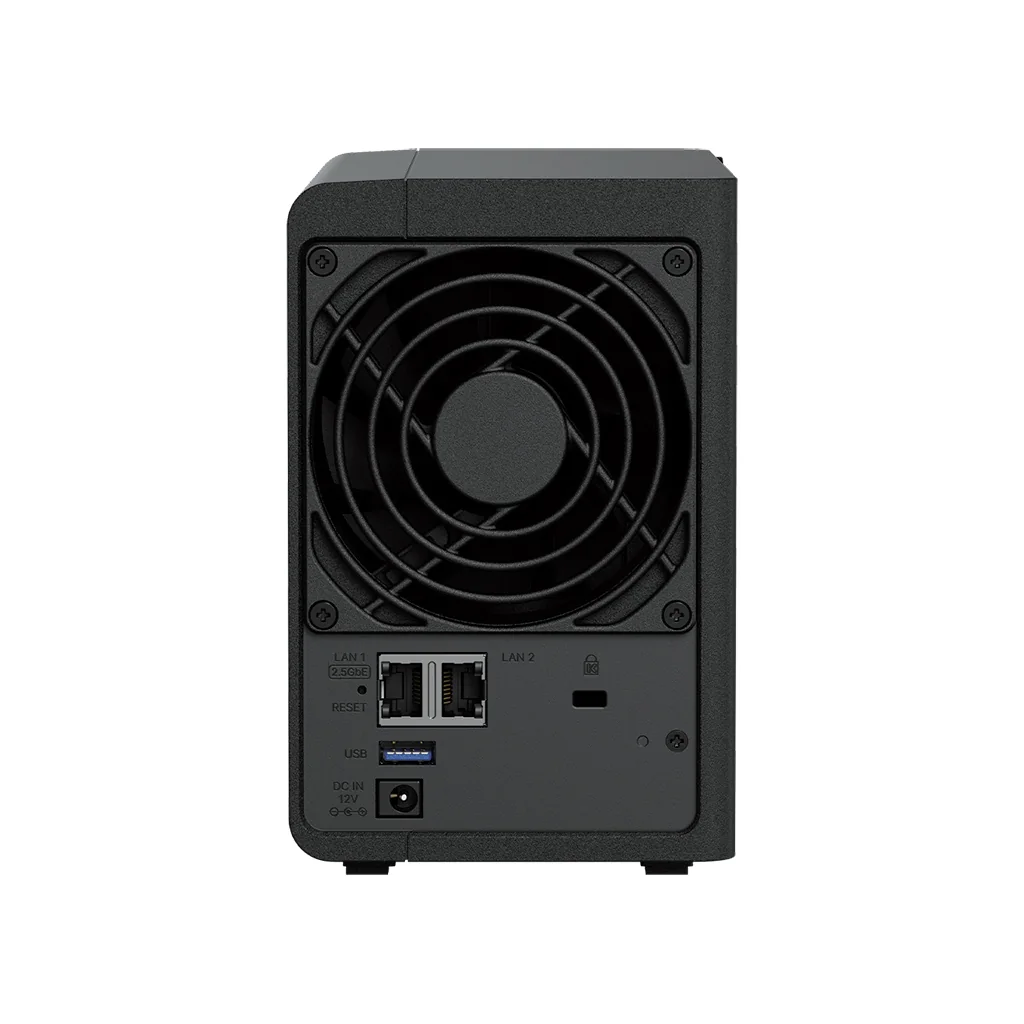

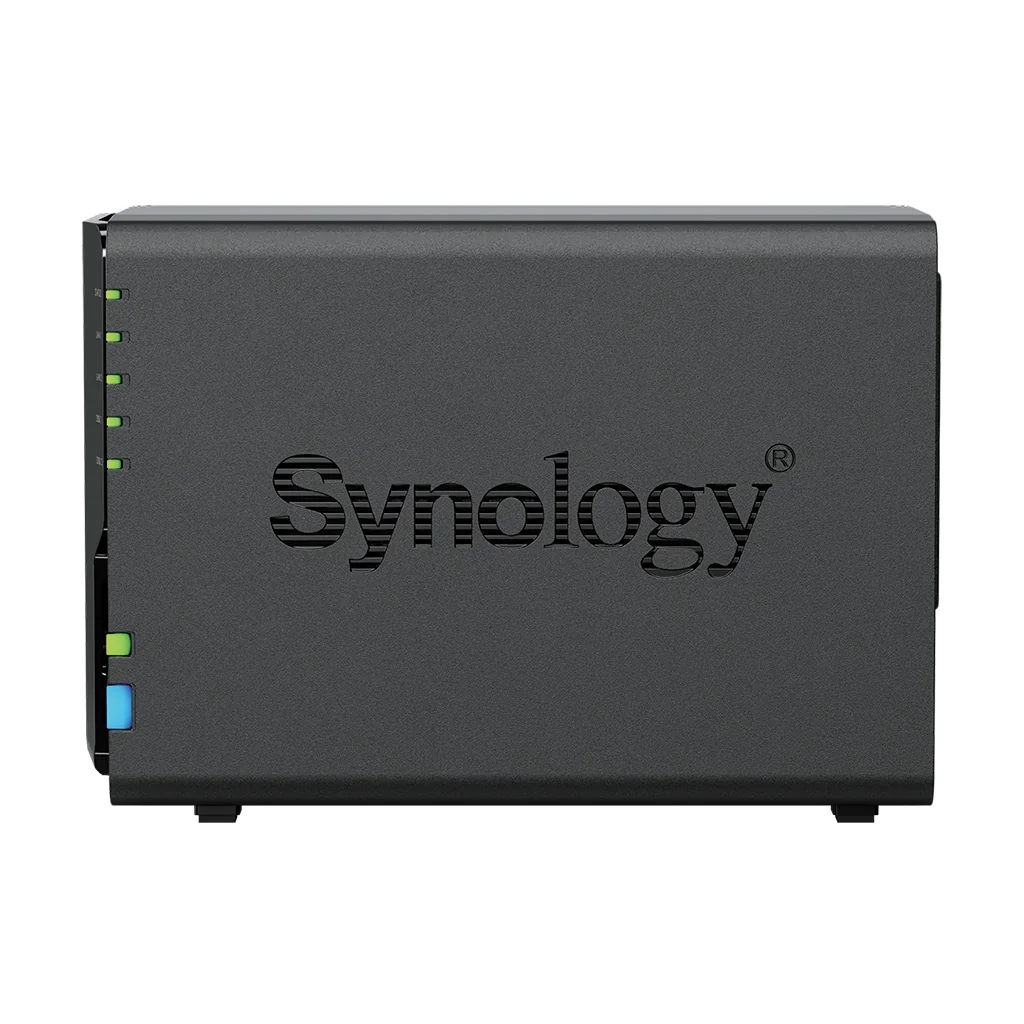

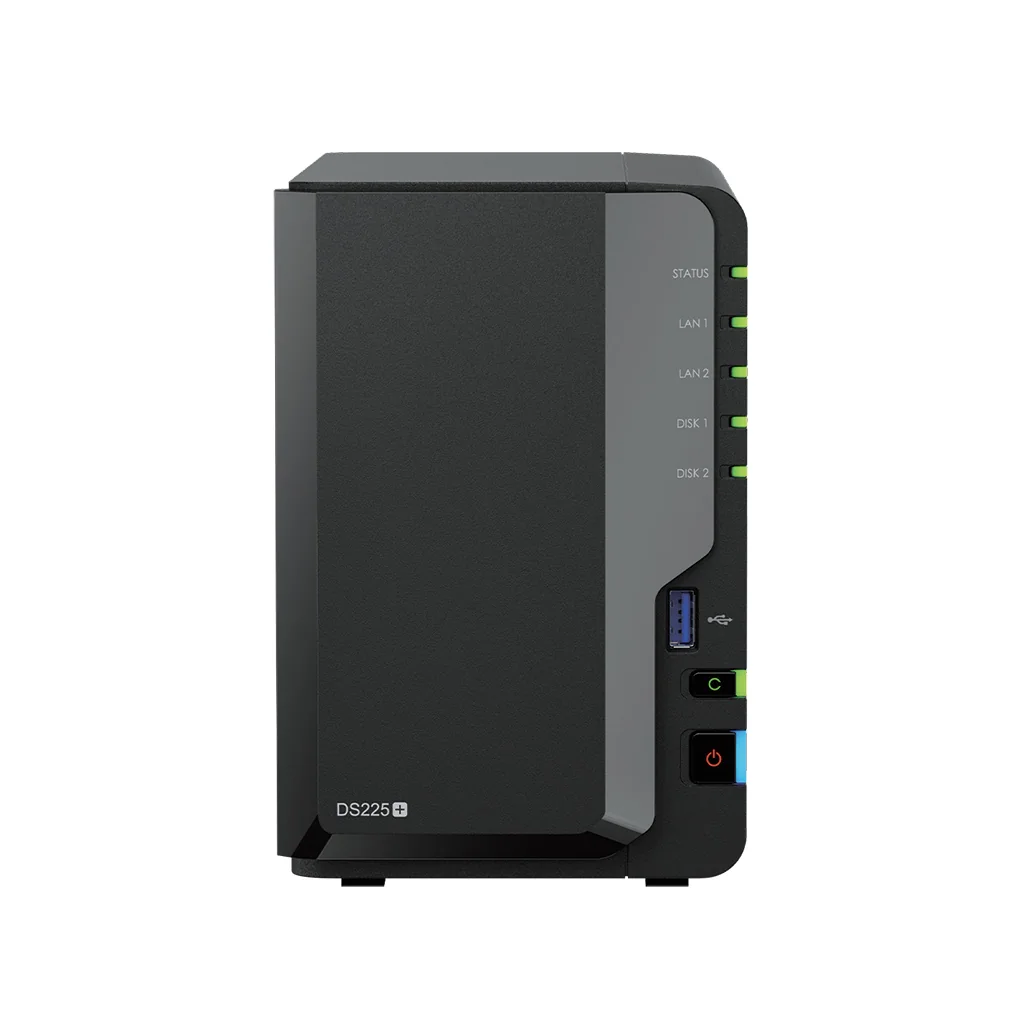

Synology DiskStation DS225+ 2-bay NAS

Name: Synology DiskStation DS225+ 2-bay NAS
Brand: Synology
SKU: DS225+
Price: 749.00 AUD
Availability: OutOfStock

Compact data storage for home & edge

$749.00inc. GST

Out of stock

Ask about availability

Sold diskless. Add compatible drives below and we will ship everything together.

Australian stock, GST tax invoice
Genuine Synology, full local warranty
Dispatched in 1 business day when in stock
Ask a question about this model

Processor: Intel Celeron J4125
Memory: 2 GB DDR4 non-ECC
Bays: 2 × 3.5" SATA HDD or 2.5" SATA SSD
1GbE LAN ports: 1
2.5GbE LAN ports: 1

Data sheet and downloads on synology.com

About the DS225+

The Synology DiskStation DS225+ is a compact 2-bay NAS solution designed to centralize data management, offering a comprehensive suite of tools through Synology DiskStation Manager DSM for managing, sharing, and protecting files and photos, backing up devices and data, and serving as the core of a smart surveillance system. 3 Year Warranty extendable to 5 years with EW201 ( additional purchase)

Key points

2-bay desktop NAS
Intel Celeron J4125 4-core processor
2 GB DDR4 memory (expandable to 6 GB)
Dual network connectivity with 1GbE and 2.5GbE RJ-45 ports
Supports SSD cache
Two USB 3.2 Gen 1 ports for external storage and backup
Supports Synology Hybrid RAID (SHR), RAID 0, RAID 1, and JBOD
Supports up to 108 TB single volume capacity

Specifications

As published by Synology for the DS225+. Confirm the latest data sheet before relying on a figure for a tender.

CPU
CPU Model	Intel Celeron J4125
CPU Quantity	1
CPU Cores	4
CPU Threads	4
CPU Architecture	64-bit
CPU Frequency	2.0 (base) / 2.7 (turbo) GHz
Memory
System Memory	2 GB DDR4 non-ECC
Total Memory Slots	1
Maximum Memory Capacity	6 GB (2 GB + 4 GB)
Storage
Drive Bays	2 × 3.5" SATA HDD or 2.5" SATA SSD
External Ports
RJ-45 1GbE LAN Port	1
RJ-45 2.5GbE LAN Port	1
USB 3.2 Gen 1 Port	2
Appearance
Size (Height × Width × Depth)	165 mm × 108 mm × 232.2 mm
Weight	1.3 kg
Others
System Fan	92 mm × 92 mm × 1 pcs
Fan Speed Mode	Full-Speed Mode Cool Mode Quiet Mode
Noise Level	19.6 dB(A)
Power Supply Unit / Adapter	60 watts
AC Input Power Voltage	100V to 240V AC
Power Frequency	50/60 Hz, Single Phase
Power Consumption	16.98 watts (Access) 6.08 watts (HDD Hibernation)
British Thermal Unit	57.90 BTU/hr (Access) 20.73 BTU/hr (HDD Hibernation)
Temperature
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20°C to 60°C (-5°F to 140°F)
Operating Humidity	8% to 80% RH
Storage Humidity	5% to 95% RH
Warranty

Maximum Single Volume Size	108 TB
Maximum Internal Volume Number	32
Supported RAID Type	Synology Hybrid RAID Basic JBOD RAID 0 RAID 1
RAID Migration	Basic to RAID 1
Volume Expansion with Larger HDDs	Synology Hybrid RAID RAID 1

Internal Drives	Btrfs ext4
External Drives	Btrfs ext4 ext3 FAT32 NTFS HFS+ exFAT

File Protocol	SMB AFP NFS FTP WebDAV Rsync
Maximum Number of SMB Connections (FSCT-Based)	5

Maximum Local User Accounts	512
Maximum Local Groups	128
Maximum Shared Folder	128
Maximum Shared Folder Sync Tasks	4

Hybrid Share Folder Number	10

Syslog Events per Second	800

Supported Protocols	SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV
Supported Browsers	Chrome Firefox Edge Safari
Supported Language	English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svenska, Nederlands, Русский, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Český, ภาษาไทย, 日本語, 한국어, 繁體中文, 简体中文

Maximum Number of Users	100
Download Station
Maximum Concurrent Download Tasks	80

Maximum iSCSI Target Number	2
Maximum LUN	4

Free Email Accounts	5
Maximum Number of Users	20


Maximum Snapshots per Shared Folder	128
Maximum Snapshots per LUN	32
Maximum Snapshots per System	1,024
Maximum Replication Tasks for Shared Folders	16
Maximum Replication Tasks for LUNs	8
Maximum Replication Tasks per System	16

Default Licenses	2
Maximum IP Cameras and Total FPS (H.264)	1080p: 25 channels, 750 FPS 3M: 25 channels, 350 FPS 5M: 25 channels, 280 FPS 4K: 17 channels, 170 FPS
Maximum IP Cameras and Total FPS (H.265)	1080p: 25 channels, 750 FPS 3M: 25 channels, 600 FPS 5M: 25 channels, 480 FPS 4K: 20 channels, 200 FPS

Maximum Number of Users	10
Maximum Number of Hosted Files	100,000 (applies to files indexed or hosted by . For file access through other standard protocols, refer to the File Services section above)

Maximum Number of Users	10

Recommended Virtual Machine Instances	2
Recommended Virtual DSM Number	2 (including 1 Free License)

Maximum Connections	4
