DiskStation Plus · DS2422+

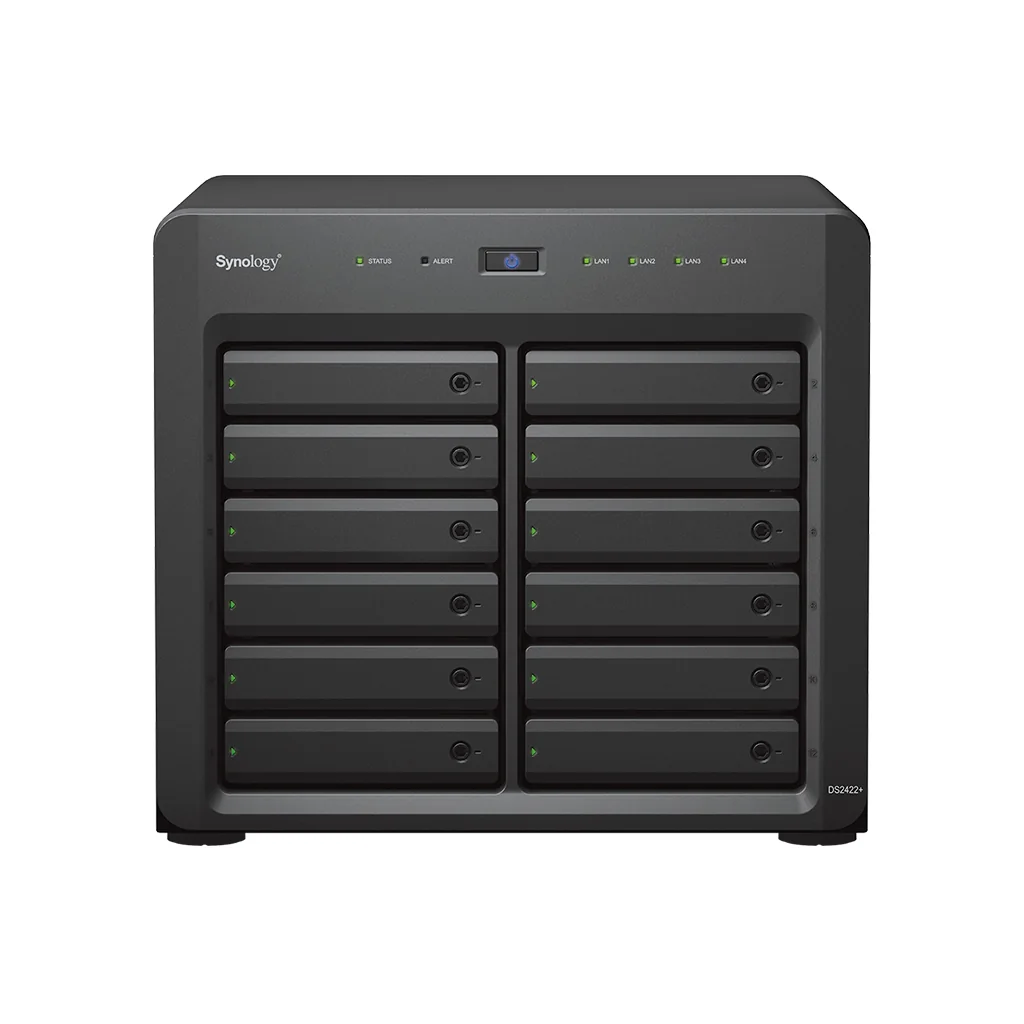

Synology DiskStation DS2422+ 12-bay NAS
Flexible large-scale storage for small and medium-sized businesses.
$4,759.00inc. GST
Only 2 left
Sold diskless. Add compatible drives below and we will ship everything together.
- Australian stock, GST tax invoice
- Genuine Synology, full local warranty
- Dispatched in 1 business day when in stock
- Ask a question about this model
- Processor
- AMD Ryzen V1500B
- Memory
- 4 GB DDR4 ECC SODIMM
- Bays
- 12 × 3.5" SATA HDD or 2.5" SATA HDD/SSD
- Max bays with expansion
- 24 (DX1222 × 1)
- 1GbE LAN ports
- 4
Faster performance
Comfortably run demanding applications and processes with multiple users on the DS2422+ while still enjoying a smooth and fast experience. See the improvements that help make your business productive.
About the DS2422+
Synology DiskStation DS2422+ is a compact 12-bay desktop NAS that takes file sharing and management to the next level. The unit can be scaled to 24 drive bays and excels at serving large data sets in multiuser environments. It comes with powerful file management, surveillance, and backup capabilities, and can serve as high-quality video and VM storage. With support for up to 32 GB of memory, NVMe SSD cache, and 25GbE network cards, the DS2422+ is ready for large-scale business application. Model mainly supports Synology drives, Please check compatability list.
Key points
- Delivers up to 2,201 MB/s read and 1,383 MB/s sequential write performance
- Quad-Core, 2.2 GHz CPU with AESNI support. 4 GB DDR4 ECC SODIMM (expandable up to 32 GB with 2 x D4ES01-16G)
- Four built-in 1GbE (RJ-45) ports with failover and Link Aggregation support.
- Advanced Btrfs file system
- Synology High Availability (SHA) allows for uninterrupted services with seamless transitioning between clustered servers
- Maximum IP camera: 40 (total of 1,200 FPS at 720p, H.264) (including two free camera licenses; additional cameras require the purchasing of additional licenses)
- Deploy and run various virtual machines on Synology NAS, including Windows, Linux, or Virtual DSM
- DS2422+ supports up to 24 drives with one Synology DX1222 expansion unit, sold separately
Specifications
As published by Synology for the DS2422+. Confirm the latest data sheet before relying on a figure for a tender.
| CPU | |
|---|---|
| CPU Model | AMD Ryzen V1500B |
| CPU Quantity | 1 |
| CPU Cores | 4 |
| CPU Threads | 8 |
| CPU Architecture | 64-bit |
| CPU Frequency | 2.2 GHz |
| Memory | |
| System Memory | 4 GB DDR4 ECC SODIMM |
| Memory Module Pre-installed | 4 GB (4 GB × 1) |
| Total Memory Slots | 2 |
| Maximum Memory Capacity | 32 GB (16 GB × 2) |
| Storage | |
| Drive Bays | 12 × 3.5" SATA HDD or 2.5" SATA HDD/SSD |
| Maximum Drive Bays with Expansion Unit | 24 (DX1222 × 1) |
| External Ports | |
| RJ-45 1GbE LAN Port | 4 |
| USB 3.2 Gen 1 Port | 2 |
| Expansion Port | 1 |
| Expansion Port Type | Mini-SAS HD |
| PCIe | |
| PCIe Expansion | 1 × Gen3 x8 slot (x4 link) |
| Appearance | |
| Size (Height × Width × Depth) | 270 mm × 300 mm × 340 mm |
| Weight | 9.5 kg |
| Others | |
| System Fan | 120 mm × 120 mm × 2 pcs |
| Fan Speed Mode | Full-Speed Mode Cool Mode Quiet Mode |
| Noise Level | 25 dB(A) |
| Power Supply Unit / Adapter | 550 watts |
| AC Input Power Voltage | 100V to 240V AC |
| Power Frequency | 50/60 Hz, Single Phase |
| Power Consumption | 73.11 watts (Access) 32.12 watts (HDD Hibernation) |
| British Thermal Unit | 249.63 BTU/hr (Access) 109.67 BTU/hr (HDD Hibernation) |
| Temperature | |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) |
| Operating Humidity | 8% to 80% RH |
| Storage Humidity | 5% to 95% RH |
| Warranty | |
| Maximum Single Volume Size | 108 TB |
| Maximum Internal Volume Number | 64 |
| Supported RAID Type | Synology Hybrid RAID Basic JBOD RAID 0 RAID 1 RAID 5 RAID 6 RAID 10 |
| RAID Migration | Basic to RAID 1 Basic to RAID 5 RAID 1 to RAID 5 RAID 5 to RAID 6 |
| Volume Expansion with Larger HDDs | Synology Hybrid RAID RAID 1 RAID 5 RAID 6 RAID 10 |
| Volume Expansion by Adding a HDD | Synology Hybrid RAID JBOD RAID 5 RAID 6 |
| Global Hot Spare Supported RAID Type | Synology Hybrid RAID RAID 1 RAID 5 RAID 6 RAID 10 |
| Internal Drives | Btrfs ext4 |
| External Drives | Btrfs ext4 ext3 FAT32 NTFS HFS+ exFAT |
| File Protocol | SMB AFP NFS FTP WebDAV Rsync |
| Maximum Number of SMB Connections (FSCT-Based) | 90 |
| Maximum Local User Accounts | 1,024 |
| Maximum Local Groups | 256 |
| Maximum Shared Folder | 256 |
| Maximum Shared Folder Sync Tasks | 8 |
| Hybrid Share Folder Number | 10 |
| Syslog Events per Second | 1,000 |
| Virtualization | |
| VMware vSphere | ESXi 8.0 U2, ESXi 8.0 U1, ESXi 8.0, ESXi 7.0 U3, ESXi 7.0 U2, ESXi 7.0 U1, ESXi 7.0, ESXi 6.7 U3, ESXi 6.7 U2, ESXi 6.7 U1, ESXi 6.7, ESXi 6.5 U3, ESXi 6.5 U2, ESXi 6.5 U1, ESXi 6.5 |
| Microsoft Hyper-V | Windows Server 2025, Windows Server 2022 |
| Citrix XenServer | XenServer 8.4, XenServer 8, Citrix Hypervisor 8.2 LTSR CU1 |
| OpenStack | Cinder |
| Supported Protocols | SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV |
| Supported Browsers | Chrome Firefox Edge Safari |
| Supported Language | English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svenska, Nederlands, Русский, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Český, ภาษาไทย, 日本語, 한국어, 繁體中文, 简体中文 |
| Synology AI Console | |
| Maximum De-Identification Rate | 90 words per second |
| Maximum Number of Users | 150 |
| Download Station | |
| Maximum Concurrent Download Tasks | 80 |
| Maximum iSCSI Target Number | 64 |
| Maximum LUN | 128 |
| Free Email Accounts | 5 |
| Maximum Number of Users | 190 |
| Maximum Snapshots per Shared Folder | 256 |
| Maximum Snapshots per LUN | 64 |
| Maximum Snapshots per System | 4,096 |
| Maximum Replication Tasks for Shared Folders | 32 |
| Maximum Replication Tasks for LUNs | 16 |
| Maximum Replication Tasks per System | 32 |
| Default Licenses | 2 |
| Maximum IP Cameras and Total FPS (H.264) | 1080p: 40 channels, 1050 FPS 3M: 40 channels, 600 FPS 5M: 40 channels, 440 FPS 4K: 32 channels, 320 FPS |
| Maximum IP Cameras and Total FPS (H.265) | 1080p: 40 channels, 1200 FPS 3M: 40 channels, 1120 FPS 5M: 40 channels, 600 FPS 4K: 40 channels, 480 FPS |
| Maximum Number of Users | 170 |
| Maximum Number of Hosted Files | 1,000,000 (applies to files indexed or hosted by . For file access through other standard protocols, refer to the File Services section above) |
| Maximum Number of Users | 160 |
| Recommended Virtual Machine Instances | 8 |
| Recommended Virtual DSM Number | 8 (including 1 Free License) |
| Maximum Connections | 8 |
