DiskStation XS · DS3622XS+

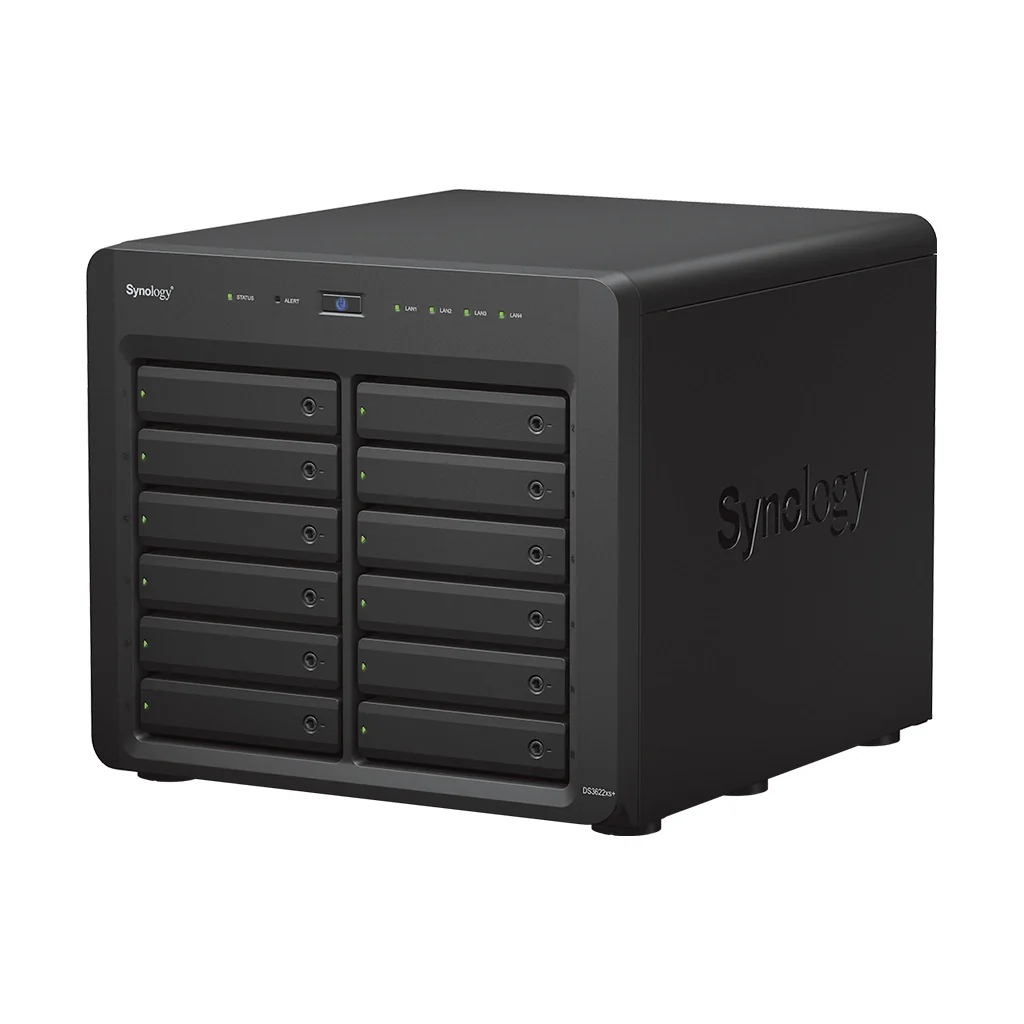

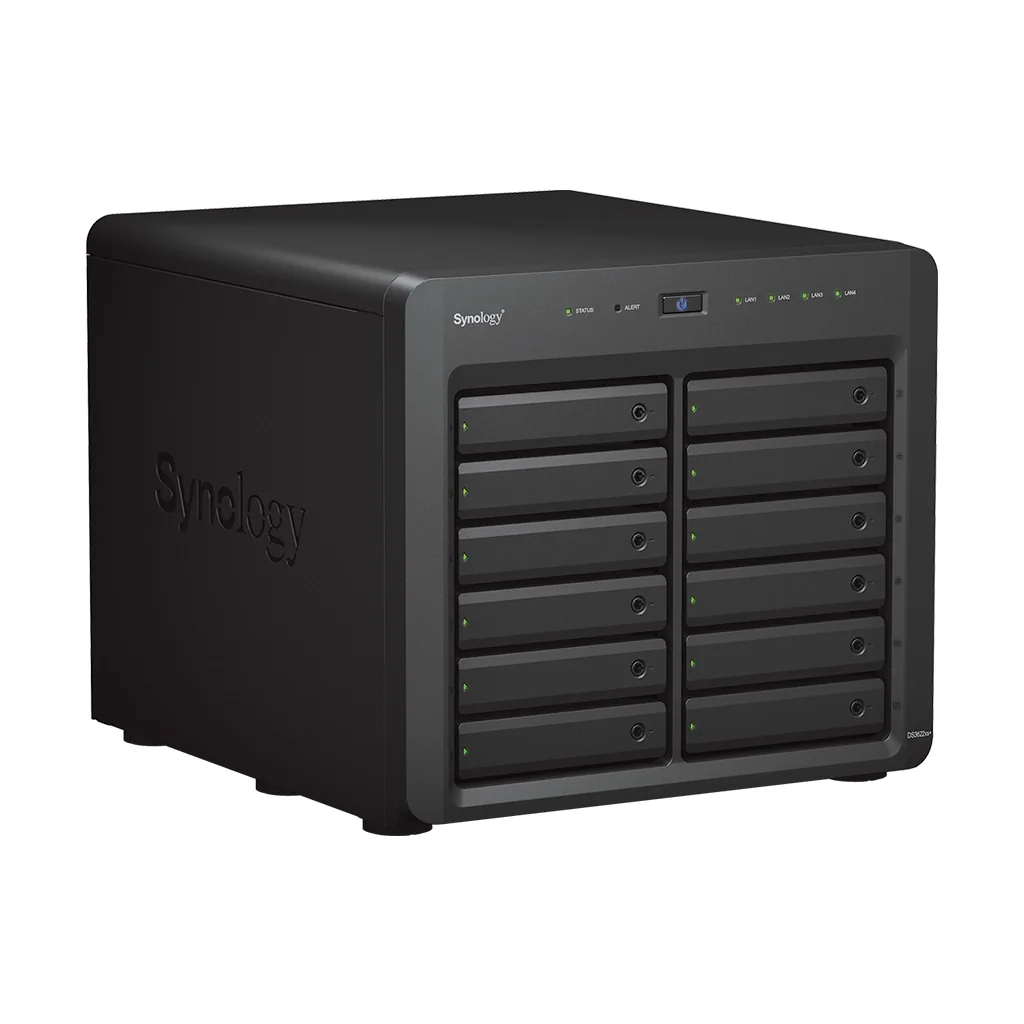

Synology DiskStation DS3622XS+ 12-bay NAS
Powerful and high-capacity storage that fits in any environment
$7,419.00inc. GST
Only 1 left
Sold diskless. Add compatible drives below and we will ship everything together.
- Australian stock, GST tax invoice
- Genuine Synology, full local warranty
- Dispatched in 1 business day when in stock
- Ask a question about this model
- Processor
- Intel Xeon D-1531
- Memory
- 16 GB DDR4 ECC SODIMM
- Bays
- 12 × 3.5" SATA HDD or 2.5" SATA HDD/SSD
- Max bays with expansion
- 36 (DX1222 × 2)
- 1GbE LAN ports
- 2
- 10GbE LAN ports
- 2
Faster performance
Enjoy a smooth experience even with multiple users running demanding applications. See the numbers that make the DS3622xs+ more efficient.
Centralized surveillance for your business
Transform the DS3622xs+ into a powerful network video recorder with Synology Surveillance Station.
Get more with DiskStation Manager
Take advantage of a whole host of native productivity, management, and security solutions available on the web-based Synology DSM operating system.
We have you covered
The DS3622xs+ is backed by Synology's 5-year limited warranty, including technical support and hardware replacement services to maximize your return on investment and enjoy high-quality performance.
About the DS3622XS+
Synology DiskStation DS3622xs+ is a 12-bay tower server NAS for businesses that need large and powerful storage. The DS3622xs+ matches high capacity with strong processing capabilities, making it ideal for business surveillance, virtual machine storage, and video editing. Its storage capacity is easily tripled with two 12-bay DX1222 expansion units. Connectivity, storage, and memory are easily expandable to handle even more demanding workloads. Coupled with a large offering of business applications available for Synology DiskStation anager (DSM), the DS3622xs+ is much more than a storage device. Backed by Synology's 5-year limited warranty.
Key points
- Designed for small and medium business environments with intensive and multi-user workloads

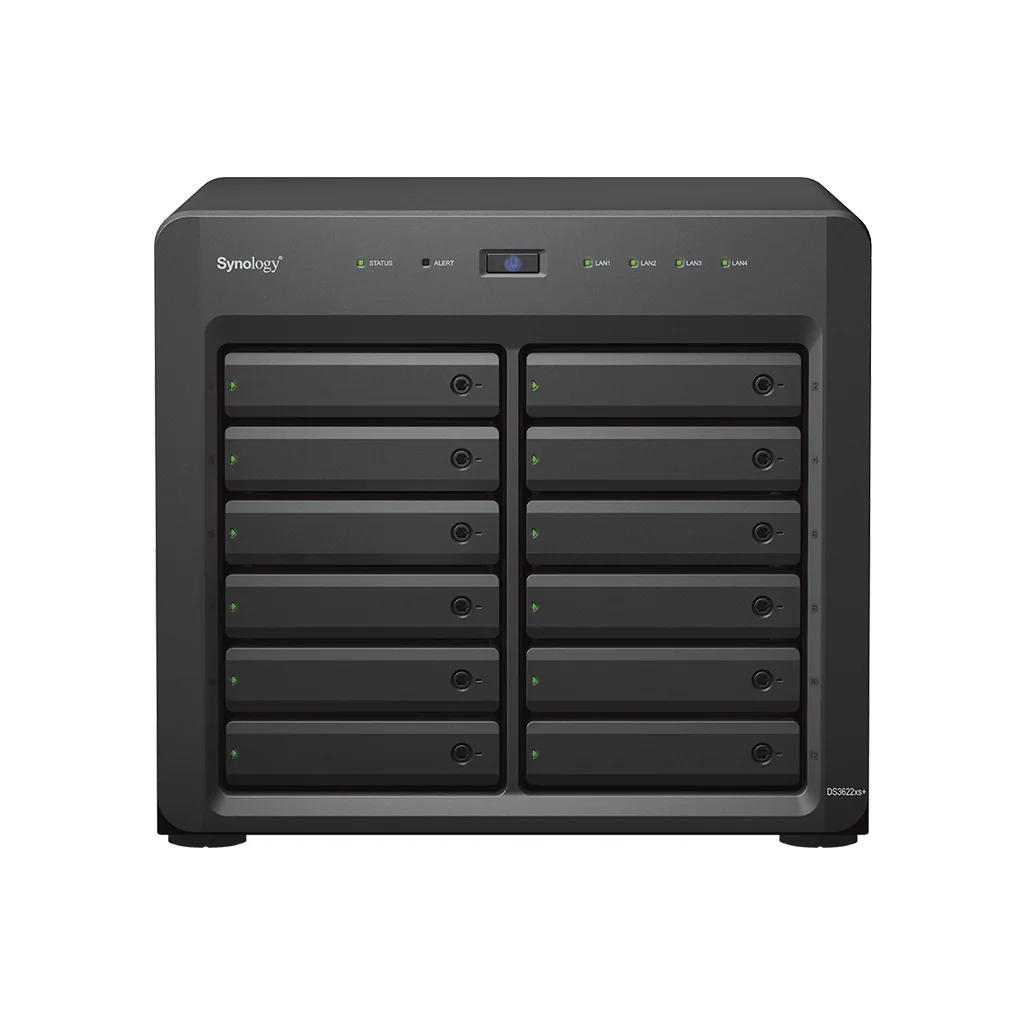

- 12 x 3.5"/2.5" SATA Drive Bays
- 2.2 GHz Intel Xeon D-1531 Six-Core
- 16GB of DDR4 ECC RAM
- Up to 4719 MB/s Reads & 2400 MB/s Writes
- 1 x PCIe 3.0 x8/x8 Slot
Specifications
As published by Synology for the DS3622XS+. Confirm the latest data sheet before relying on a figure for a tender.
| CPU | |
|---|---|
| CPU Model | Intel Xeon D-1531 |
| CPU Quantity | 1 |
| CPU Cores | 6 |
| CPU Threads | 12 |
| CPU Architecture | 64-bit |
| CPU Frequency | 2.2 (base) / 2.7 (turbo) GHz |
| Memory | |
| System Memory | 16 GB DDR4 ECC SODIMM |
| Memory Module Pre-installed | 16 GB (8 GB × 2) |
| Total Memory Slots | 4 |
| Maximum Memory Capacity | 48 GB (8 GB x 2 + 16 GB × 2) |
| Storage | |
| Drive Bays | 12 × 3.5" SATA HDD or 2.5" SATA HDD/SSD |
| Maximum Drive Bays with Expansion Unit | 36 (DX1222 × 2) |

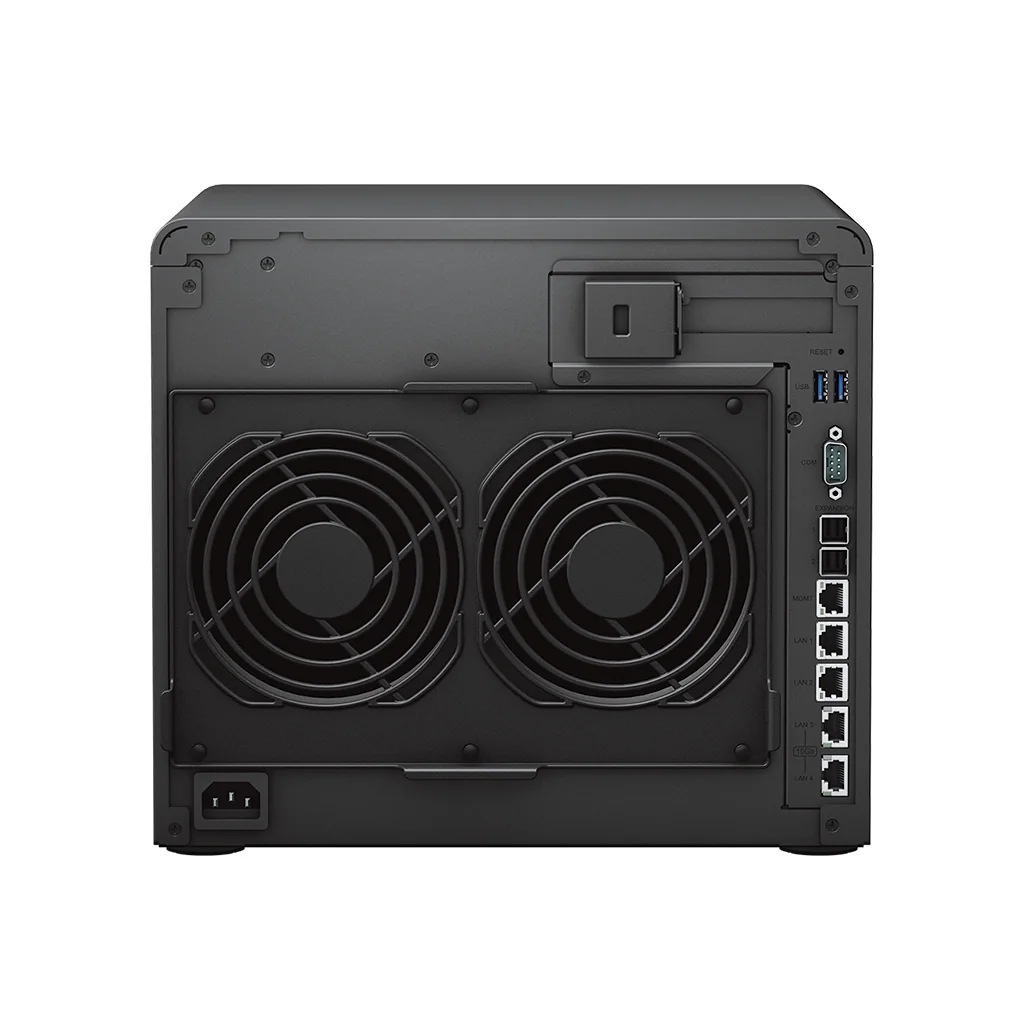

| External Ports | |
| RJ-45 1GbE LAN Port | 2 |
| RJ-45 10GbE LAN Port | 2 |
| Out-of-Band Management LAN Port | 1 |
| USB 3.2 Gen 1 Port | 2 |
| Expansion Port | 2 |
| Expansion Port Type | Mini-SAS HD |
| PCIe | |
| PCIe Expansion | 1 × Gen3 x8 slot (x8 link) |
| Appearance | |
| Size (Height × Width × Depth) | 270 mm × 300 mm × 340 mm |
| Weight | 9.8 kg |
| Others | |
| System Fan | 120 mm × 120 mm × 2 pcs |
| Fan Speed Mode | Full-Speed Mode Cool Mode Quiet Mode |
| Noise Level | 25 dB(A) |
| Power Supply Unit / Adapter | 550 watts |
| AC Input Power Voltage | 100V to 240V AC |
| Power Frequency | 50/60 Hz, Single Phase |
| Power Consumption | 94.42 watts (Access) 54.33 watts (HDD Hibernation) |
| British Thermal Unit | 322.39 BTU/hr (Access) 185.51 BTU/hr (HDD Hibernation) |
| Temperature | |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) |
| Operating Humidity | 8% to 80% RH |
| Storage Humidity | 5% to 95% RH |
| Warranty | |
| Maximum Single Volume Size | 200 TB (32 GB memory required) 108 TB |
| Maximum Internal Volume Number | 256 |
| Supported RAID Type | RAID F1 Basic JBOD RAID 0 RAID 1 RAID 5 RAID 6 RAID 10 |
| RAID Migration | Basic to RAID 1 Basic to RAID 5 RAID 1 to RAID 5 RAID 5 to RAID 6 |
| Volume Expansion with Larger HDDs | RAID F1 RAID 1 RAID 5 RAID 6 RAID 10 |
| Volume Expansion by Adding a HDD | RAID F1 JBOD RAID 5 RAID 6 |
| Global Hot Spare Supported RAID Type | RAID F1 RAID 1 RAID 5 RAID 6 RAID 10 |
| Internal Drives | Btrfs ext4 |
| External Drives | Btrfs ext4 ext3 FAT32 NTFS HFS+ exFAT |
| File Protocol | SMB AFP NFS FTP WebDAV Rsync |
| Maximum Number of SMB Connections (FSCT-Based) | 600 |
| Maximum Local User Accounts | 5,120 |
| Maximum Local Groups | 512 |
| Maximum Shared Folder | 512 |
| Maximum Shared Folder Sync Tasks | 16 |
| Hybrid Share Folder Number | 15 |
| Syslog Events per Second | 3,000 |
| Virtualization | |
| VMware vSphere | ESXi 8.0 U2, ESXi 8.0 U1, ESXi 8.0, ESXi 7.0 U3, ESXi 7.0 U2, ESXi 7.0 U1, ESXi 7.0, ESXi 6.7 U3, ESXi 6.7 U2, ESXi 6.7 U1, ESXi 6.7, ESXi 6.5 U3, ESXi 6.5 U2, ESXi 6.5 U1, ESXi 6.5 |
| Microsoft Hyper-V | Windows Server 2025, Windows Server 2022 |
| Citrix XenServer | XenServer 8, Citrix Hypervisor 8.2 LTSR CU1 |
| OpenStack | Cinder |
| Supported Protocols | SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, Fibre Channel, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV |
| Supported Browsers | Chrome Firefox Edge Safari |
| Supported Language | English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svenska, Nederlands, Русский, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Český, ภาษาไทย, 日本語, 한국어, 繁體中文, 简体中文 |
| Synology AI Console | |
| Maximum De-Identification Rate | 600 words per second |
| Maximum Number of Users | 500 |
| Download Station | |
| Maximum Concurrent Download Tasks | 80 |
| Maximum iSCSI Target Number | 128 |
| Maximum LUN | 256 |
| Free Email Accounts | 5 |
| Maximum Number of Users | 1,300 |
| Maximum Snapshots per Shared Folder | 512 |
| Maximum Snapshots per LUN | 128 |
| Maximum Snapshots per System | 16,384 |
| Maximum Replication Tasks for Shared Folders | 64 |
| Maximum Replication Tasks for LUNs | 32 |
| Maximum Replication Tasks per System | 64 |
| Default Licenses | 2 |
| Maximum IP Cameras and Total FPS (H.264) | 1080p: 90 channels, 2250 FPS 3M: 90 channels, 1500 FPS 5M: 90 channels, 900 FPS 4K: 55 channels, 550 FPS |
| Maximum IP Cameras and Total FPS (H.265) | 1080p: 90 channels, 2700 FPS 3M: 90 channels, 2250 FPS 5M: 90 channels, 1500 FPS 4K: 90 channels, 1080 FPS |
| Maximum Number of Users | 1,100 |
| Maximum Number of Hosted Files | 15,000,000 (applies to files indexed or hosted by . For file access through other standard protocols, refer to the File Services section above) |
| Maximum Number of Users | 1,100 |
| Recommended Virtual Machine Instances | 12 |
| Recommended Virtual DSM Number | 12 (including 1 Free License) |
| Maximum Connections | 16 |
