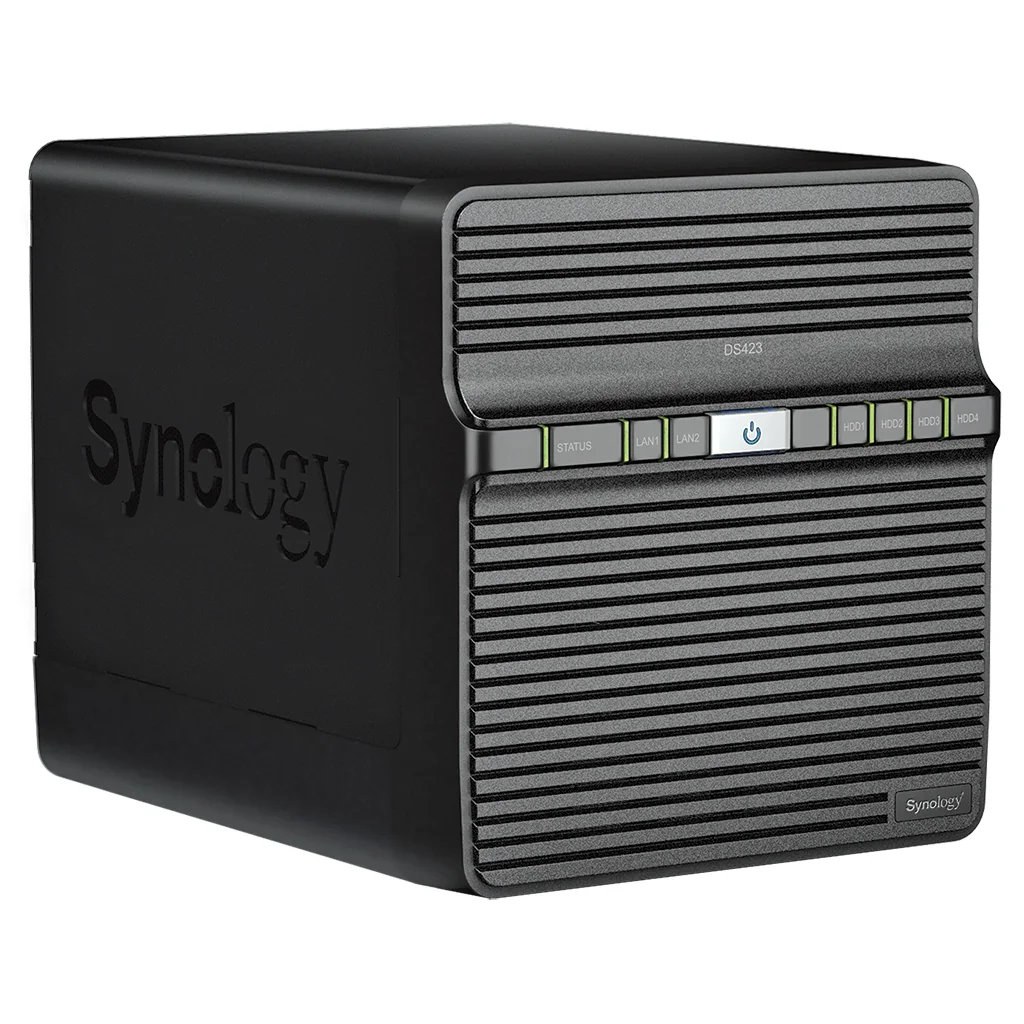

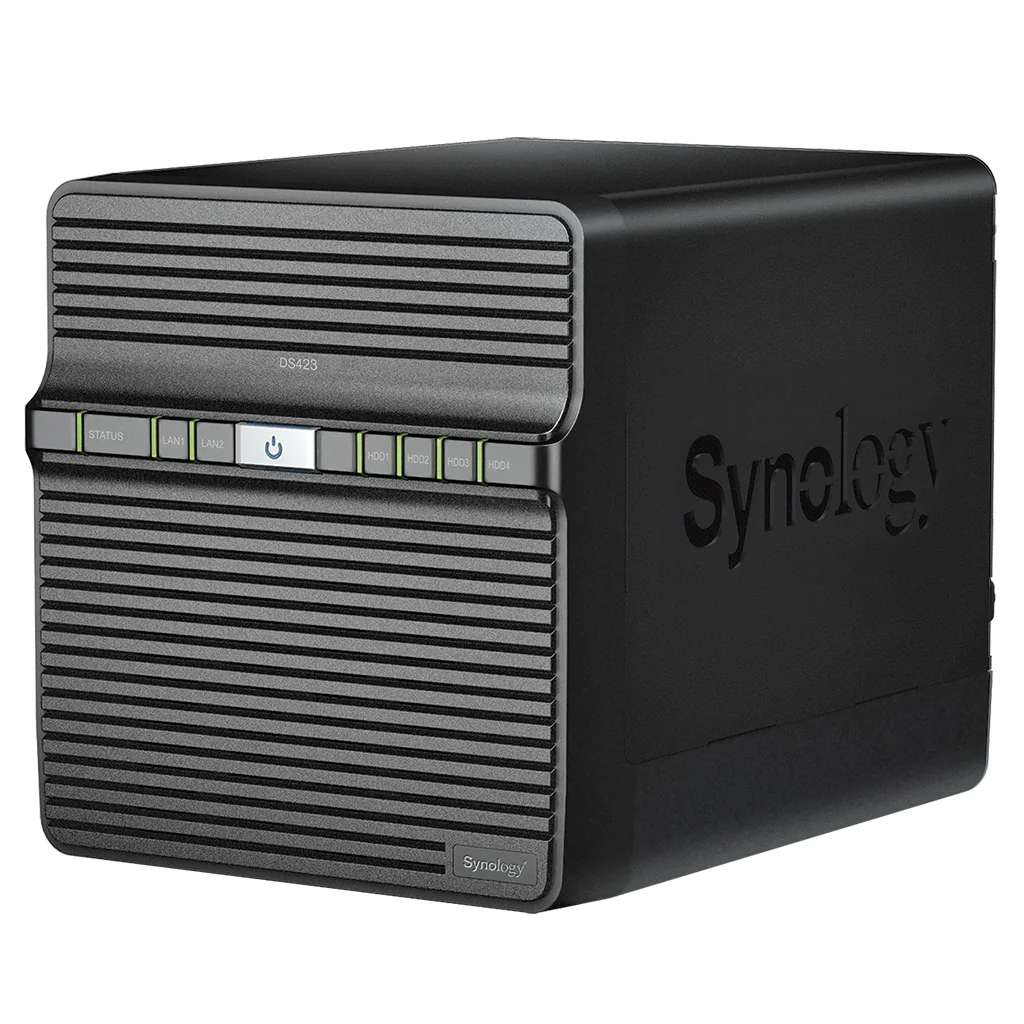

Synology DiskStation DS423 4-bay NAS

Name: Synology DiskStation DS423 4-bay NAS
Brand: Synology
SKU: DS423
Price: 909.00 AUD
Availability: InStock

Versatile data management platform for work and more

$909.00inc. GST

In stock, 55 available

Sold diskless. Add compatible drives below and we will ship everything together.

Australian stock, GST tax invoice
Genuine Synology, full local warranty
Dispatched in 1 business day when in stock
Ask a question about this model

Processor: Realtek RTD1619B
Memory: 2 GB DDR4 non-ECC
Bays: 4 × 3.5" SATA HDD or 2.5" SATA SSD
1GbE LAN ports: 2

Data sheet and downloads on synology.com

Create a private cloud hub for your data

Import and sync data scattered across PCs, Macs, phones, and external storage devices to implement well-organized file management for your business.

Safeguard your data

Powered by Synology DiskStation Manager (DSM), the DS423 utilizes Btrfs, a next-generation file system, to secure data against corruption and allows users to roll back any accidental or malicious changes with instantaneous snapshots.

Versatile storage solution for essential needs

Manage and organize photos efficiently, back up and secure your digital data, and safeguard your physical premises with the DS423.

Multi-layered backup solutions

Leverage Synology solutions to back up all data stored on your DS423 onto a secondary server, external storage device, or the cloud.

About the DS423

The Synology DiskStation DS423 offers four bays of storage and everything you need to consolidate, organize, and secure your data. Leverage built-in solutions in Synology DiskStation Manager (DSM) to sync and access files across multiple devices, create a digital photo hub for work or leisure, or secure your premises with intelligent video surveillance tools. (Replaces the DS420J and DS418)

Key points

4-bay desktop NAS
Realtek RTD1619B 4-core processor
2 GB DDR4 memory
Dual 1GbE RJ-45 network ports
Supports SSD cache
Two USB 3.2 Gen 1 ports for external storage and backup
Supports Synology Hybrid RAID (SHR), RAID 0, RAID 1, RAID 5, RAID 6, and RAID 10
Supports up to 108 TB single volume capacity

Specifications

As published by Synology for the DS423. Confirm the latest data sheet before relying on a figure for a tender.

CPU
CPU Model	Realtek RTD1619B
CPU Quantity	1
CPU Cores	4
CPU Threads	4
CPU Architecture	64-bit
CPU Frequency	1.7 GHz
Memory
System Memory	2 GB DDR4 non-ECC
Storage
Drive Bays	4 × 3.5" SATA HDD or 2.5" SATA SSD
External Ports
RJ-45 1GbE LAN Port	2
USB 3.2 Gen 1 Port	2
Appearance
Size (Height × Width × Depth)	184 mm × 168 mm × 230 mm
Weight	2.21 kg
Others
System Fan	80 mm × 80 mm × 2 pcs
Fan Speed Mode	Full-Speed Mode Cool Mode Quiet Mode
Noise Level	20.6 dB(A)
Power Supply Unit / Adapter	90 watts
AC Input Power Voltage	100V to 240V AC
Power Frequency	50/60 Hz, Single Phase
Power Consumption	32.41 watts (Access) 4.97 watts (HDD Hibernation)
British Thermal Unit	110.52 BTU/hr (Access) 16.95 BTU/hr (HDD Hibernation)
Temperature
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20°C to 60°C (-5°F to 140°F)
Operating Humidity	8% to 80% RH
Storage Humidity	5% to 95% RH
Warranty

Maximum Single Volume Size	108 TB
Maximum Internal Volume Number	64
Supported RAID Type	Synology Hybrid RAID Basic JBOD RAID 0 RAID 1 RAID 5 RAID 6 RAID 10
RAID Migration	Basic to RAID 1 Basic to RAID 5 RAID 1 to RAID 5 RAID 5 to RAID 6
Volume Expansion with Larger HDDs	Synology Hybrid RAID RAID 1 RAID 5 RAID 6 RAID 10
Volume Expansion by Adding a HDD	Synology Hybrid RAID JBOD RAID 5
Global Hot Spare Supported RAID Type	Synology Hybrid RAID RAID 1 RAID 5

Internal Drives	Btrfs ext4
External Drives	Btrfs ext4 ext3 FAT32 NTFS HFS+ exFAT

File Protocol	SMB AFP NFS FTP WebDAV Rsync
Maximum Number of SMB Connections (FSCT-Based)	5

Maximum Local User Accounts	256
Maximum Local Groups	64
Maximum Shared Folder	64
Maximum Shared Folder Sync Tasks	2

Syslog Events per Second	400

Supported Protocols	SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV
Supported Browsers	Chrome Firefox Edge Safari
Supported Language	English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svenska, Nederlands, Русский, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Český, ภาษาไทย, 日本語, 한국어, 繁體中文, 简体中文
Download Station
Maximum Concurrent Download Tasks	80

Maximum iSCSI Target Number	2
Maximum LUN	4

Maximum Snapshots per Shared Folder	128
Maximum Snapshots per LUN	32
Maximum Snapshots per System	1,024
Maximum Replication Tasks for Shared Folders	16
Maximum Replication Tasks for LUNs	8
Maximum Replication Tasks per System	16

Default Licenses	2
Maximum IP Cameras and Total FPS (H.264)	1080p: 30 channels, 600 FPS 3M: 30 channels, 300 FPS 5M: 20 channels, 200 FPS 4K: 15 channels, 150 FPS
Maximum IP Cameras and Total FPS (H.265)	1080p: 30 channels, 800 FPS 3M: 30 channels, 500 FPS 5M: 30 channels, 450 FPS 4K: 20 channels, 200 FPS

Maximum Number of Users	5
Maximum Number of Hosted Files	100,000 (applies to files indexed or hosted by . For file access through other standard protocols, refer to the File Services section above)

Maximum Number of Users	5

Maximum Connections	2
