DiskStation Plus · DS425+

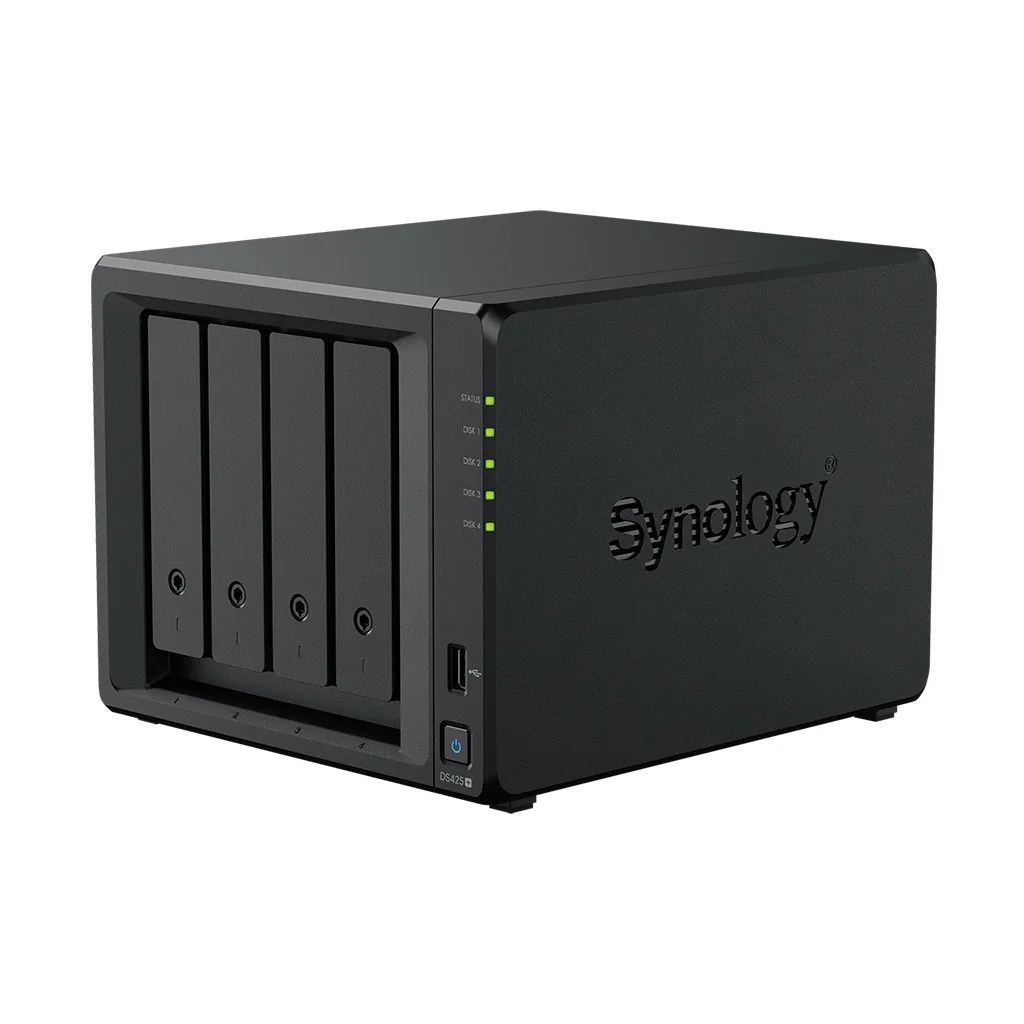

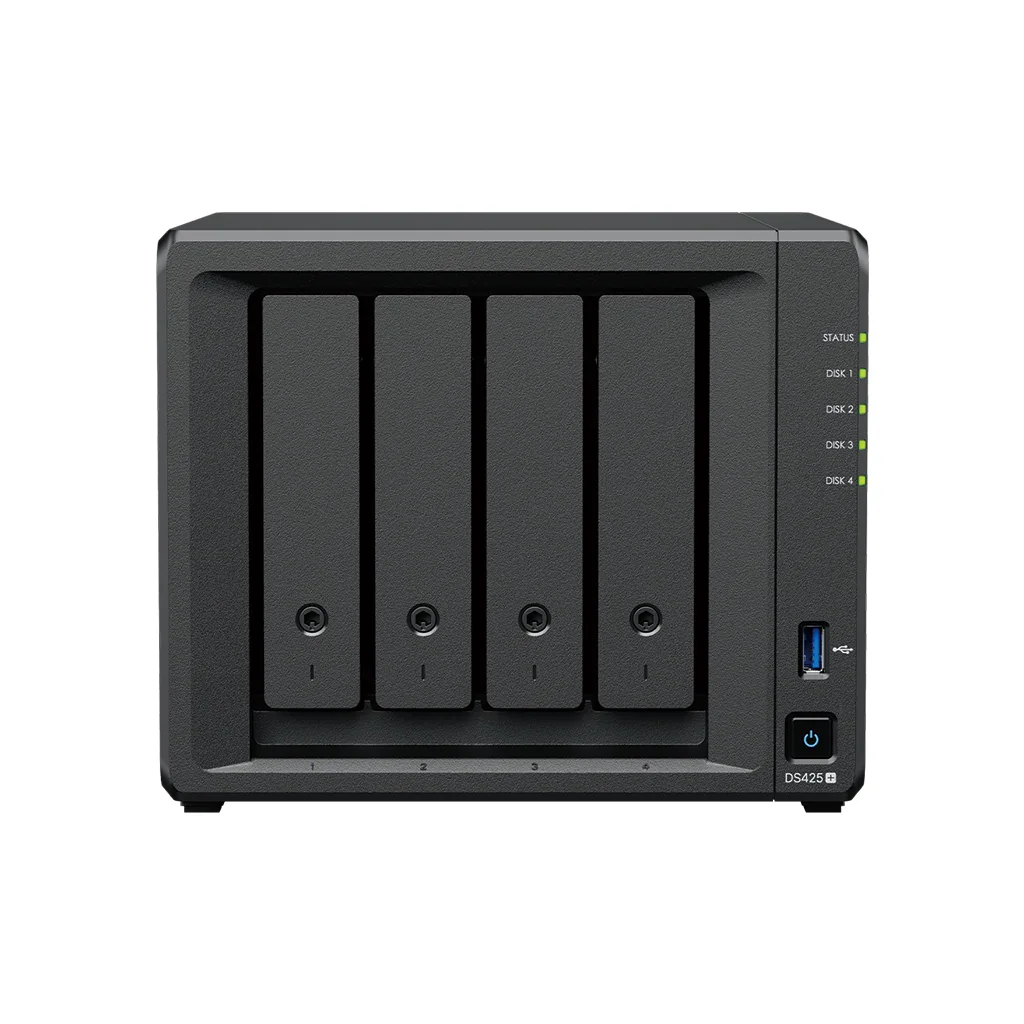

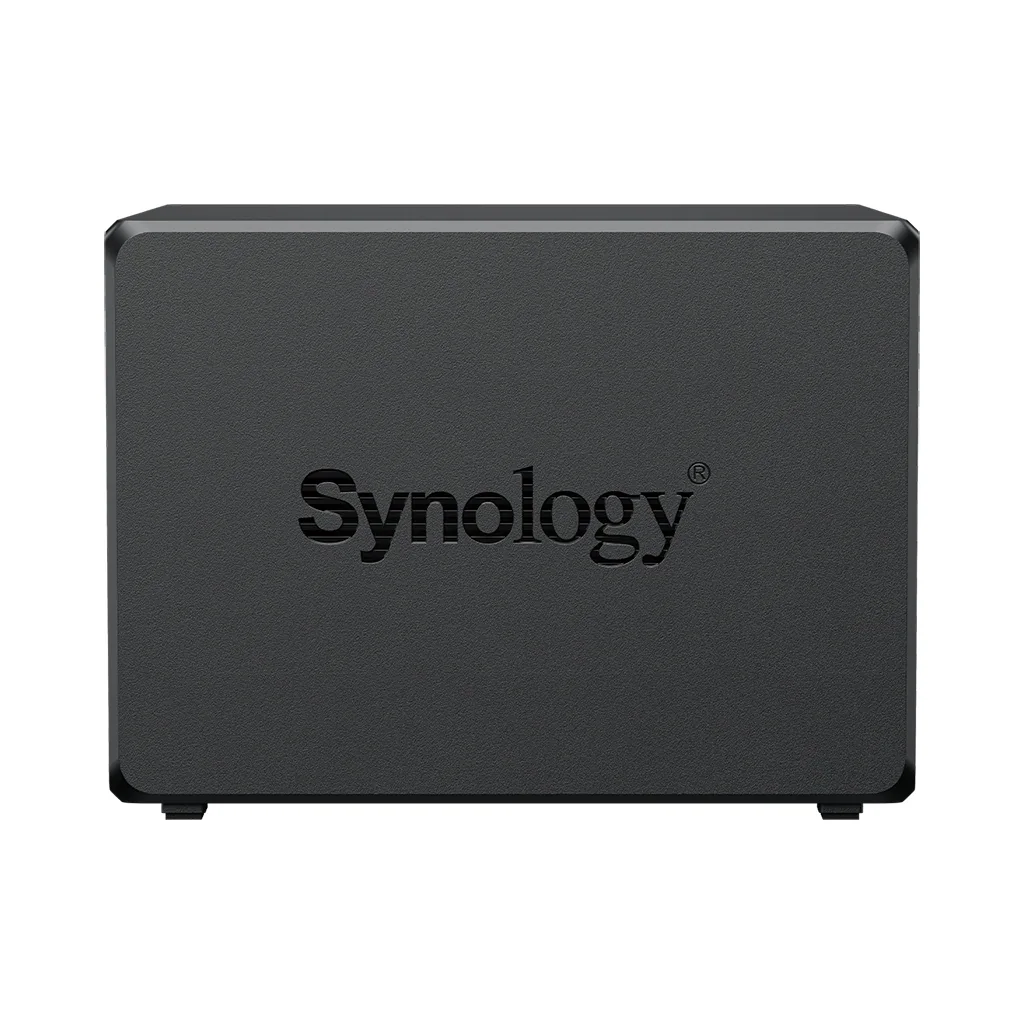

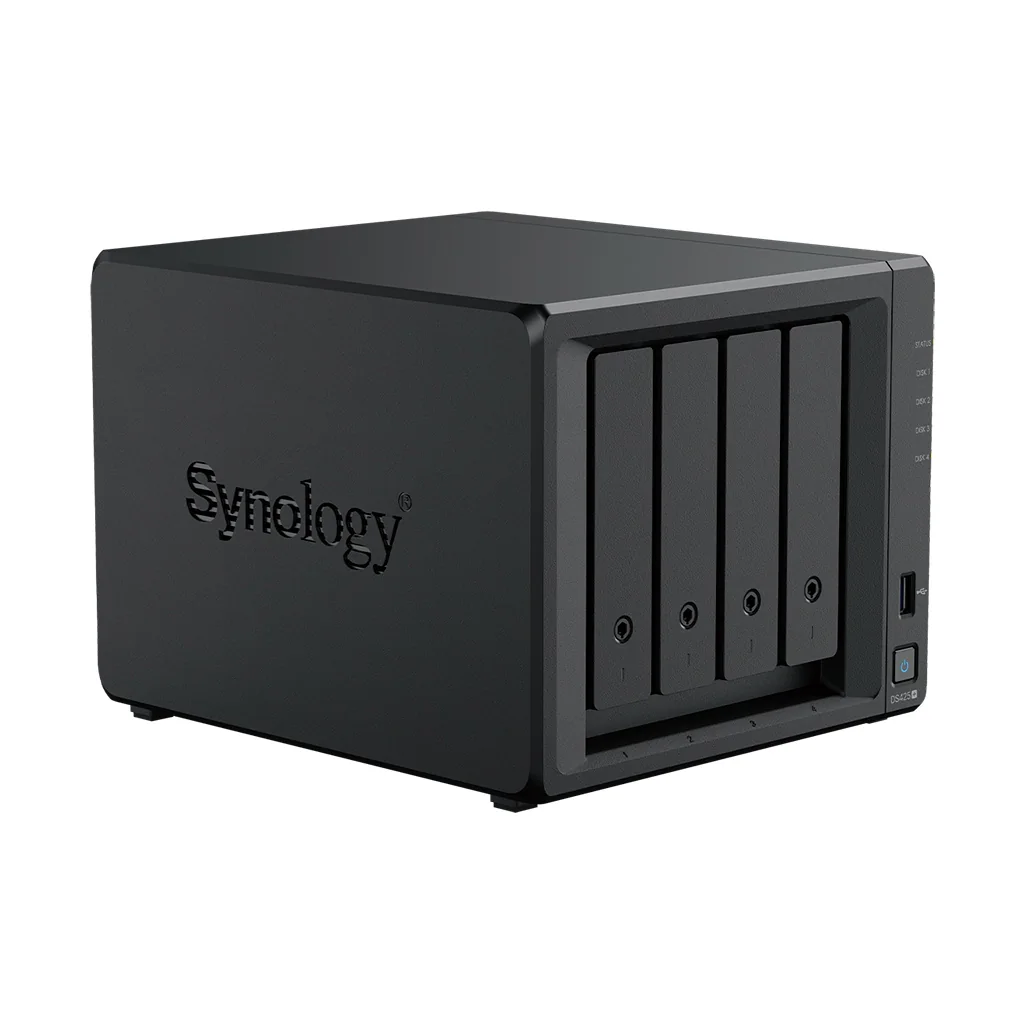

Synology DiskStation DS425+ 4-bay NAS

Name: Synology DiskStation DS425+ 4-bay NAS
Brand: Synology
SKU: DS425+
Price: 1299.00 AUD
Availability: InStock

A compact storage hub with 100% data ownership

$1,299.00inc. GST

In stock, 69 available

Sold diskless. Add compatible drives below and we will ship everything together.

Australian stock, GST tax invoice
Genuine Synology, full local warranty
Dispatched in 1 business day when in stock
Ask a question about this model

Processor: Intel Celeron J4125
Memory: 2 GB DDR4 non-ECC
Bays: 4 × 3.5" SATA HDD or 2.5" SATA SSD 2 × M.2 2280 NVMe SSD
1GbE LAN ports: 1
2.5GbE LAN ports: 1

Data sheet and downloads on synology.com

About the DS425+

The DS425+ delivers powerful functionality in a compact 4-bay, desktopfriendly design. Built-in 2.5GbE networking provides excellent network speeds out of the box. Powered by Synology DiskStation Manager (DSM), the DS425+ serves as a versatile all-in-one solution for data sharing, synchronization, backup, and surveillance.3-year hardware warranty, extendable to 5 years with EW201 ( additional purchase)

Key points

4-bay desktop NAS
Intel Celeron J4125 4-core processor
2 GB DDR4 memory (expandable to 6 GB)
Dual network connectivity with 1GbE and 2.5GbE RJ-45 ports
Supports SSD cache and M.2 NVMe SSD storage pools
Two built-in M.2 2280 NVMe SSD slots
Supports Synology Hybrid RAID (SHR), RAID 0, RAID 1, RAID 5, RAID 6, and RAID 10
Supports up to 108 TB single volume capacity

Specifications

As published by Synology for the DS425+. Confirm the latest data sheet before relying on a figure for a tender.

CPU
CPU Model	Intel Celeron J4125
CPU Quantity	1
CPU Cores	4
CPU Threads	4
CPU Architecture	64-bit
CPU Frequency	2.0 (base) / 2.7 (turbo) GHz
Memory
System Memory	2 GB DDR4 non-ECC
Total Memory Slots	1
Maximum Memory Capacity	6 GB (2 GB + 4 GB)
Storage
Drive Bays	4 × 3.5" SATA HDD or 2.5" SATA SSD 2 × M.2 2280 NVMe SSD
External Ports
RJ-45 1GbE LAN Port	1
RJ-45 2.5GbE LAN Port	1
USB 3.2 Gen 1 Port	2
Appearance
Size (Height × Width × Depth)	166 mm × 199 mm × 223 mm
Weight	2.18 kg
Others
System Fan	92 mm × 92 mm × 2 pcs
Fan Speed Mode	Full-Speed Mode Cool Mode Quiet Mode
Noise Level	21.6 dB(A)
Power Supply Unit / Adapter	90 watts
AC Input Power Voltage	100V to 240V AC
Power Frequency	50/60 Hz, Single Phase
Power Consumption	28.25 watts (Access) 6.10 watts (HDD Hibernation)
British Thermal Unit	96.33 BTU/hr (Access) 20.79 BTU/hr (HDD Hibernation)
Temperature
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20°C to 60°C (-5°F to 140°F)
Operating Humidity	8% to 80% RH
Storage Humidity	5% to 95% RH
Warranty

Maximum Single Volume Size	108 TB
Maximum Internal Volume Number	32
Supported RAID Type	Synology Hybrid RAID Basic JBOD RAID 0 RAID 1 RAID 5 RAID 6 RAID 10
RAID Migration	Basic to RAID 1 Basic to RAID 5 RAID 1 to RAID 5 RAID 5 to RAID 6
Volume Expansion with Larger HDDs	Synology Hybrid RAID RAID 1 RAID 5 RAID 6 RAID 10
Volume Expansion by Adding a HDD	Synology Hybrid RAID JBOD RAID 5
Global Hot Spare Supported RAID Type	Synology Hybrid RAID RAID 1 RAID 5

Internal Drives	Btrfs ext4
External Drives	Btrfs ext4 ext3 FAT32 NTFS HFS+ exFAT

File Protocol	SMB AFP NFS FTP WebDAV Rsync
Maximum Number of SMB Connections (FSCT-Based)	10

Maximum Local User Accounts	512
Maximum Local Groups	128
Maximum Shared Folder	128
Maximum Shared Folder Sync Tasks	4

Hybrid Share Folder Number	10

Syslog Events per Second	800
Virtualization
VMware vSphere	ESXi 8.0 U2, ESXi 8.0 U1, ESXi 8.0, ESXi 7.0 U3, ESXi 7.0 U2, ESXi 7.0 U1, ESXi 7.0, ESXi 6.7 U3, ESXi 6.7 U2, ESXi 6.7 U1, ESXi 6.7, ESXi 6.5 U3, ESXi 6.5 U2, ESXi 6.5 U1, ESXi 6.5
Microsoft Hyper-V	Windows Server 2025, Windows Server 2022
Citrix XenServer	XenServer 8, Citrix Hypervisor 8.2 LTSR CU1
OpenStack	Cinder

Supported Protocols	SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV
Supported Browsers	Chrome Firefox Edge Safari
Supported Language	English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svenska, Nederlands, Русский, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Český, ภาษาไทย, 日本語, 한국어, 繁體中文, 简体中文

Maximum Number of Users	100
Download Station
Maximum Concurrent Download Tasks	80

Maximum iSCSI Target Number	2
Maximum LUN	4

Free Email Accounts	5
Maximum Number of Users	20


Maximum Snapshots per Shared Folder	128
Maximum Snapshots per LUN	32
Maximum Snapshots per System	1,024
Maximum Replication Tasks for Shared Folders	16
Maximum Replication Tasks for LUNs	8
Maximum Replication Tasks per System	16

Default Licenses	2
Maximum IP Cameras and Total FPS (H.264)	1080p: 40 channels, 800 FPS 3M: 35 channels, 350 FPS 5M: 28 channels, 280 FPS 4K: 17 channels, 170 FPS
Maximum IP Cameras and Total FPS (H.265)	1080p: 40 channels, 1200 FPS 3M: 40 channels, 600 FPS 5M: 40 channels, 480 FPS 4K: 20 channels, 200 FPS

Maximum Number of Users	20
Maximum Number of Hosted Files	500,000 (applies to files indexed or hosted by . For file access through other standard protocols, refer to the File Services section above)

Maximum Number of Users	20

Recommended Virtual Machine Instances	2
Recommended Virtual DSM Number	2 (including 1 Free License)

Maximum Connections	4

Shipping

In-stock items leave our Australian warehouse within one business day. Order-in items usually arrive in 3 to 7 business days from the distributor. Shipping is calculated at checkout from the weight of your order (this item: 4.7 kg).

Shipping details

Warranty

Genuine Australian stock with Synology's manufacturer warranty, serviced locally. Most Plus and xs+ models carry a three or five year warranty and are eligible for EW201/EW202 extension.

Returns and warranty
