DiskStation slim · DS620SLIM

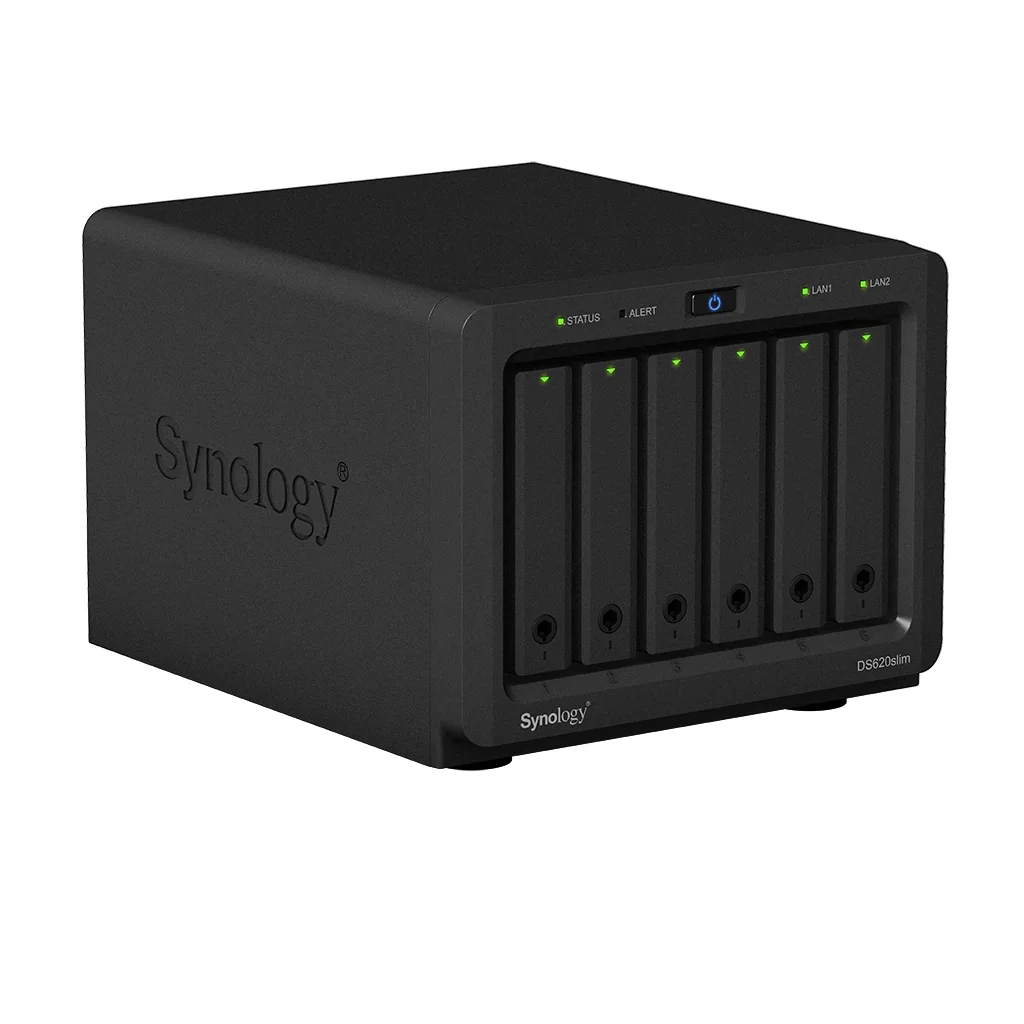

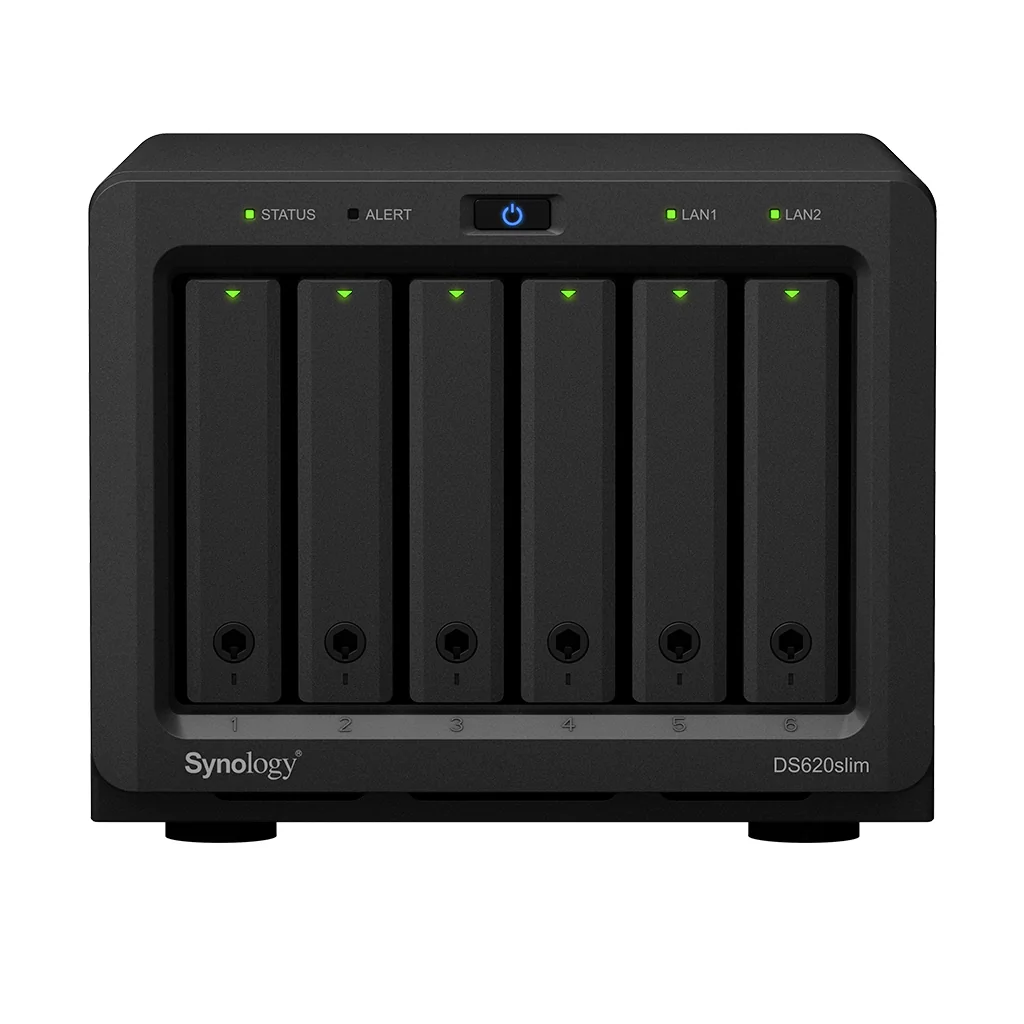

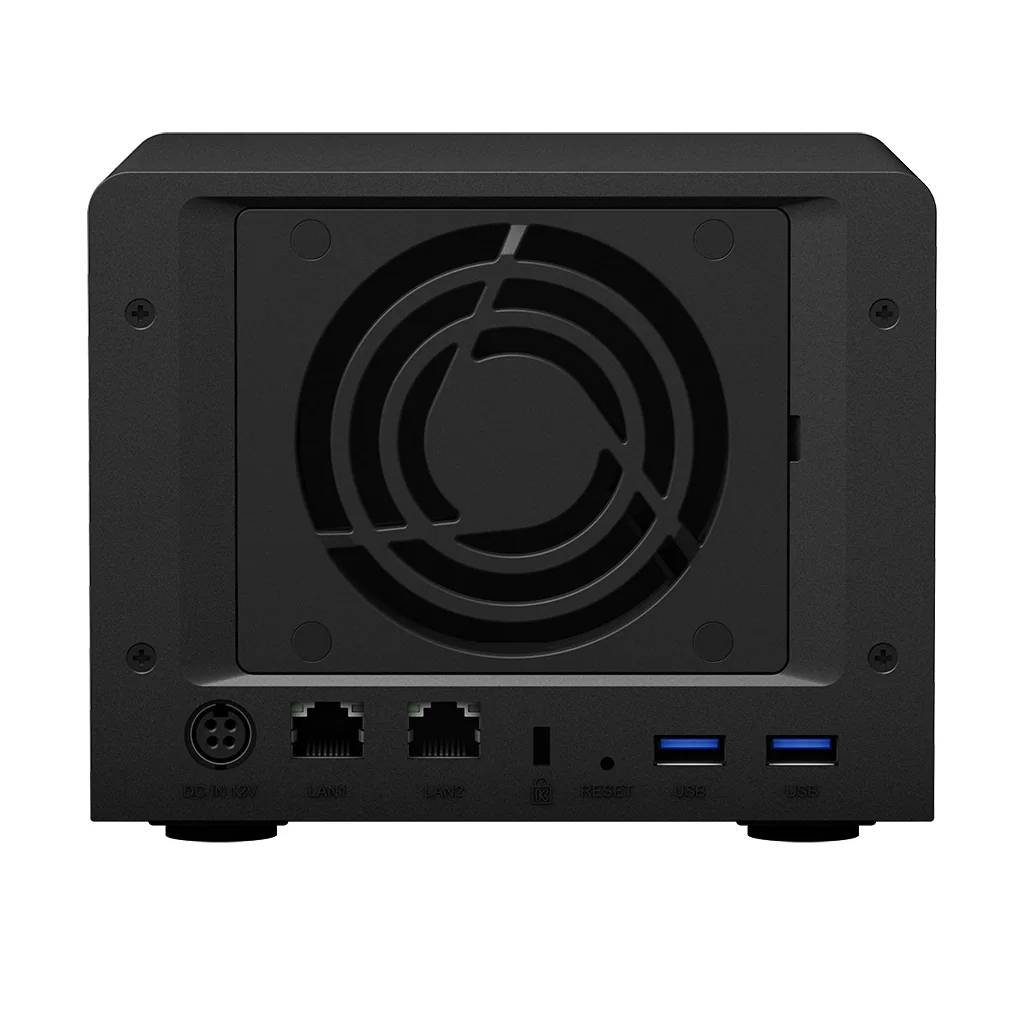

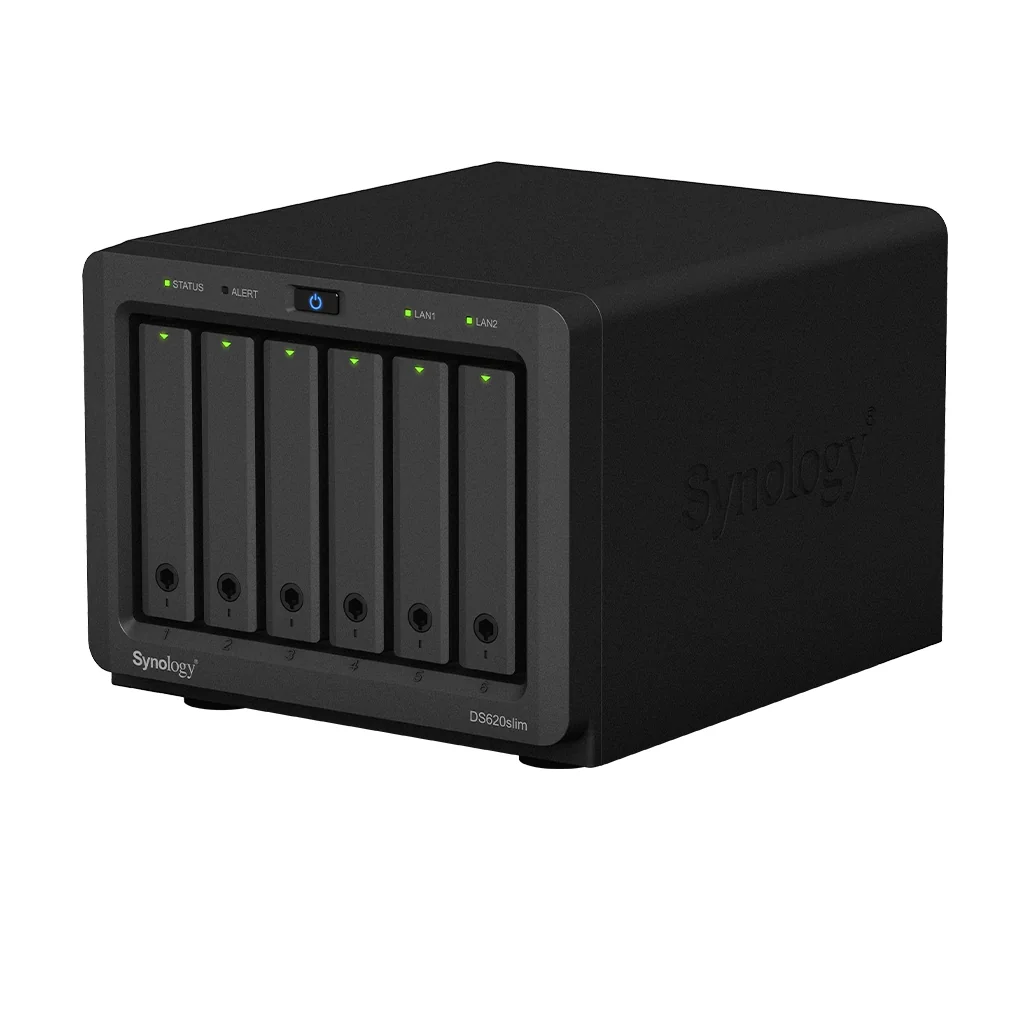

Synology DiskStation DS620SLIM 6-bay NAS
Secure digital content with a modern look
$1,240.00inc. GST
Clearance, 5 left
Sold diskless. Add compatible drives below and we will ship everything together.
- Australian stock, GST tax invoice
- Genuine Synology, full local warranty
- Dispatched in 1 business day when in stock
- Ask a question about this model
- Processor
- Intel Celeron J3355
- Memory
- 2 GB DDR3 non-ECC SODIMM
- Bays
- 6 × 2.5" SATA HDD/SSD
- 1GbE LAN ports
- 2
Btrfs: Next generation storage efficiency
The Btrfs file system introduces cutting-edge storage technologies and optimized snapshots to prevent data corruption and reduce maintenance overhead. While ensuring high-level data integrity, it also offers flexible, efficient data protection and recovery tools.
Ultimate file management and sharing
File Station is a web-based, fast and secure management tool built to allow easy, drag-and-drop operations without requiring any complex setup on Mac or PC. Advanced search and filtering tools allow for easy organization and file sharing. For complete compatibility, DS620slim supports the following protocols: AFP, FTP, iSCSI, NFS, SMB, and WebDAV.
Access and sync your files seamlessly
Synology Drive provides a built-in universal portal to access your data anytime and anywhere, and synchronize all your files across platforms, including Windows, macOS, Linux, Android, and iOS.
About the DS620SLIM
Greet the unique and compact DS620slim, ready to boost your productivity at work, and its mini design allows it to blend in any workplace harmoniously. It is the First 2.5" form factor DiskStation NAS with Btrfs file system supporting Snapshot Replication. RAID Flexibility: Flexible in variety of RAID configurations to utilize maximum 30TB raw capacity or better data protection with RAID 5/6/10
Key points
- Mini-sized yet powerful 6-bay NAS, ready to maximize your work productivity
- 6 drive bays with better RAID flexibility to configure 2.5 HDDs and SSDs
- 2GB DDR3L memory, expandable up to 6GB
- Over 220 MB/s reading and 190 MB/s writing even under encrypted data transmission
- Dual-channel H.265/H.264 4K video transcoding on the fly
- Advanced Btrfs file system, offering 65,000 system-wide snapshots and 1,024 snapshots per shared folder
- Anywhere access with iOS and Android ready mobile apps
- Maximum IP camera: 25 (total of 750 FPS at 720p, H.264) (Including two free camera licenses; additional cameras require the purchasing of additional licenses)
- No expansion unit available for this model.
- Sapres - Disk Tray - 2.5" Disk Tray (D1)
Specifications
As published by Synology for the DS620SLIM. Confirm the latest data sheet before relying on a figure for a tender.
| CPU | |
|---|---|
| CPU Model | Intel Celeron J3355 |
| CPU Quantity | 1 |
| CPU Cores | 2 |
| CPU Threads | 2 |
| CPU Architecture | 64-bit |
| CPU Frequency | 2.0 (base) / 2.5 (turbo) GHz |
| Memory | |
| System Memory | 2 GB DDR3 non-ECC SODIMM |
| Memory Module Pre-installed | 2 GB (2 GB × 1) |
| Total Memory Slots | 2 |
| Maximum Memory Capacity | 6 GB (2 GB + 4 GB) |
| Storage | |
| Drive Bays | 6 × 2.5" SATA HDD/SSD |
| External Ports | |
| RJ-45 1GbE LAN Port | 2 |
| USB 3.2 Gen 1 Port | 2 |
| Appearance | |
| Size (Height × Width × Depth) | 121 mm × 151 mm × 175 mm |
| Weight | 1.4 kg |
| Others | |
| System Fan | 80 mm × 80 mm × 1 pcs |
| Fan Speed Mode | Full-Speed Mode Cool Mode Quiet Mode |
| Noise Level | 20.5 dB(A) |
| Power Supply Unit / Adapter | 65 watts |
| AC Input Power Voltage | 100V to 240V AC |
| Power Frequency | 50/60 Hz, Single Phase |
| Power Consumption | 34.88 watts (Access) 7.59 watts (HDD Hibernation) |
| British Thermal Unit | 119.1 BTU/hr (Access) 25.92 BTU/hr (HDD Hibernation) |
| Temperature | |
| Operating Temperature | 5°C to 40°C (40°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) |
| Operating Humidity | 8% to 80% RH |
| Storage Humidity | 5% to 95% RH |
| Warranty | |
| Maximum Single Volume Size | 108 TB |
| Maximum Internal Volume Number | 64 |
| Supported RAID Type | Synology Hybrid RAID Basic JBOD RAID 0 RAID 1 RAID 5 RAID 6 RAID 10 |
| RAID Migration | Basic to RAID 1 Basic to RAID 5 RAID 1 to RAID 5 RAID 5 to RAID 6 |
| Volume Expansion with Larger HDDs | Synology Hybrid RAID RAID 1 RAID 5 RAID 6 RAID 10 |
| Volume Expansion by Adding a HDD | Synology Hybrid RAID JBOD RAID 5 RAID 6 |
| Global Hot Spare Supported RAID Type | Synology Hybrid RAID RAID 1 RAID 5 RAID 6 RAID 10 |
| Internal Drives | Btrfs ext4 |
| External Drives | Btrfs ext4 ext3 FAT32 NTFS HFS+ exFAT |
| File Protocol | SMB AFP NFS FTP WebDAV Rsync |
| Maximum Number of SMB Connections (FSCT-Based) | 5 |
| Maximum Local User Accounts | 512 |
| Maximum Local Groups | 128 |
| Maximum Shared Folder | 128 |
| Maximum Shared Folder Sync Tasks | 4 |
| Hybrid Share Folder Number | 10 |
| Syslog Events per Second | 800 |
| Virtualization | |
| VMware vSphere | ESXi 8.0 U2, ESXi 8.0 U1, ESXi 8.0, ESXi 7.0 U3, ESXi 7.0 U2, ESXi 7.0 U1, ESXi 7.0, ESXi 6.7 U3, ESXi 6.7 U2, ESXi 6.7 U1, ESXi 6.7, ESXi 6.5 U3, ESXi 6.5 U2, ESXi 6.5 U1, ESXi 6.5 |
| Microsoft Hyper-V | Windows Server 2025, Windows Server 2019, Windows Server 2016 |
| Citrix XenServer | XenServer 7 |
| OpenStack | Cinder |
| Supported Protocols | SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV |
| Supported Browsers | Chrome Firefox Edge Safari |
| Supported Language | English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svenska, Nederlands, Русский, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Český, ภาษาไทย, 日本語, 한국어, 繁體中文, 简体中文 |
| Download Station | |
| Maximum Concurrent Download Tasks | 80 |
| Maximum iSCSI Target Number | 2 |
| Maximum LUN | 4 |
| Free Email Accounts | 5 |
| Maximum Number of Users | 10 |
| Maximum Snapshots per Shared Folder | 128 |
| Maximum Snapshots per LUN | 32 |
| Maximum Snapshots per System | 1,024 |
| Maximum Replication Tasks for Shared Folders | 16 |
| Maximum Replication Tasks for LUNs | 8 |
| Maximum Replication Tasks per System | 16 |
| Default Licenses | 2 |
| Maximum IP Cameras and Total FPS (H.264) | 1080p: 25 channels, 600 FPS 3M: 25 channels, 350 FPS 5M: 20 channels, 250 FPS 4K: 12 channels, 120 FPS |
| Maximum IP Cameras and Total FPS (H.265) | 1080p: 25 channels, 750 FPS 3M: 25 channels, 450 FPS 5M: 25 channels, 250 FPS 4K: 20 channels, 200 FPS |
| Maximum Number of Users | 5 |
| Maximum Number of Hosted Files | 100,000 (applies to files indexed or hosted by . For file access through other standard protocols, refer to the File Services section above) |
| Maximum Number of Users | 5 |
| Recommended Virtual Machine Instances | 2 |
| Recommended Virtual DSM Number | 2 (including 1 Free License) |
| Maximum Connections | 4 |
