DX expansion · DX1222

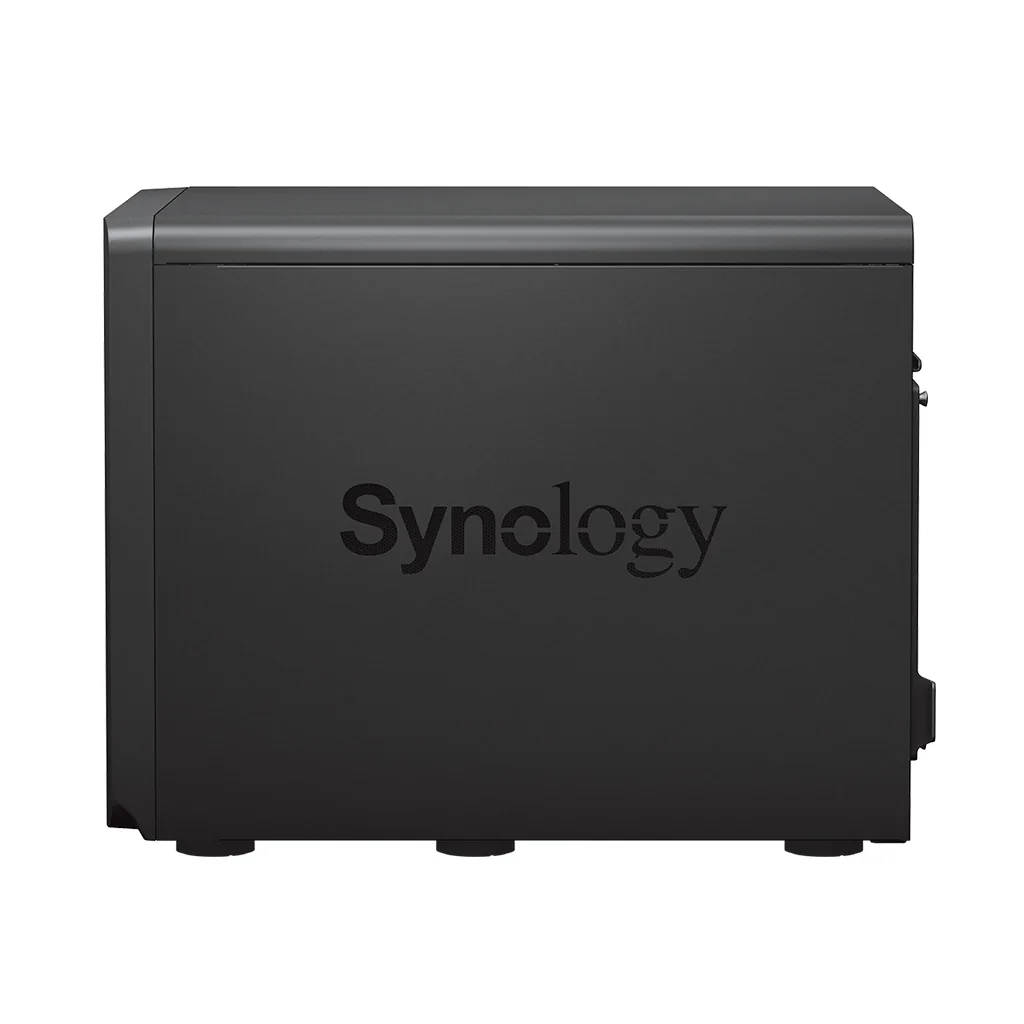

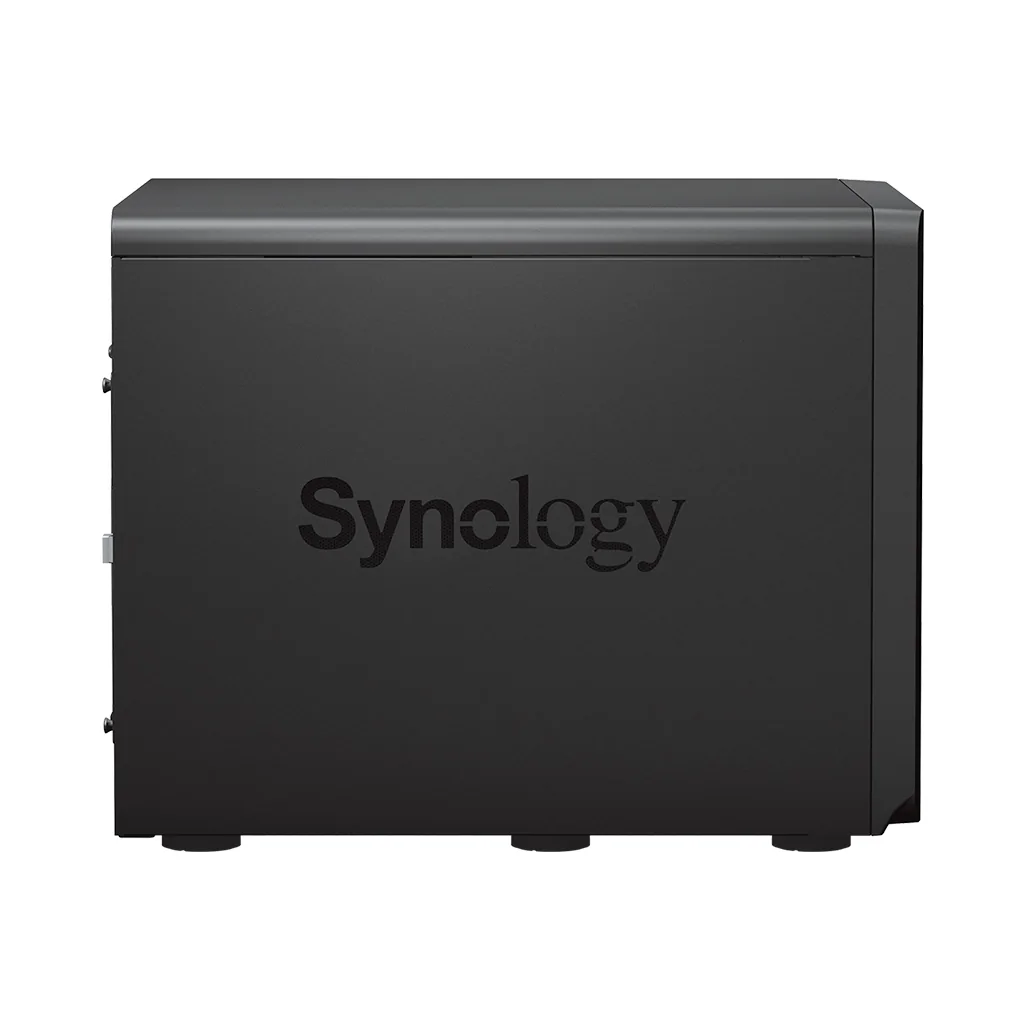

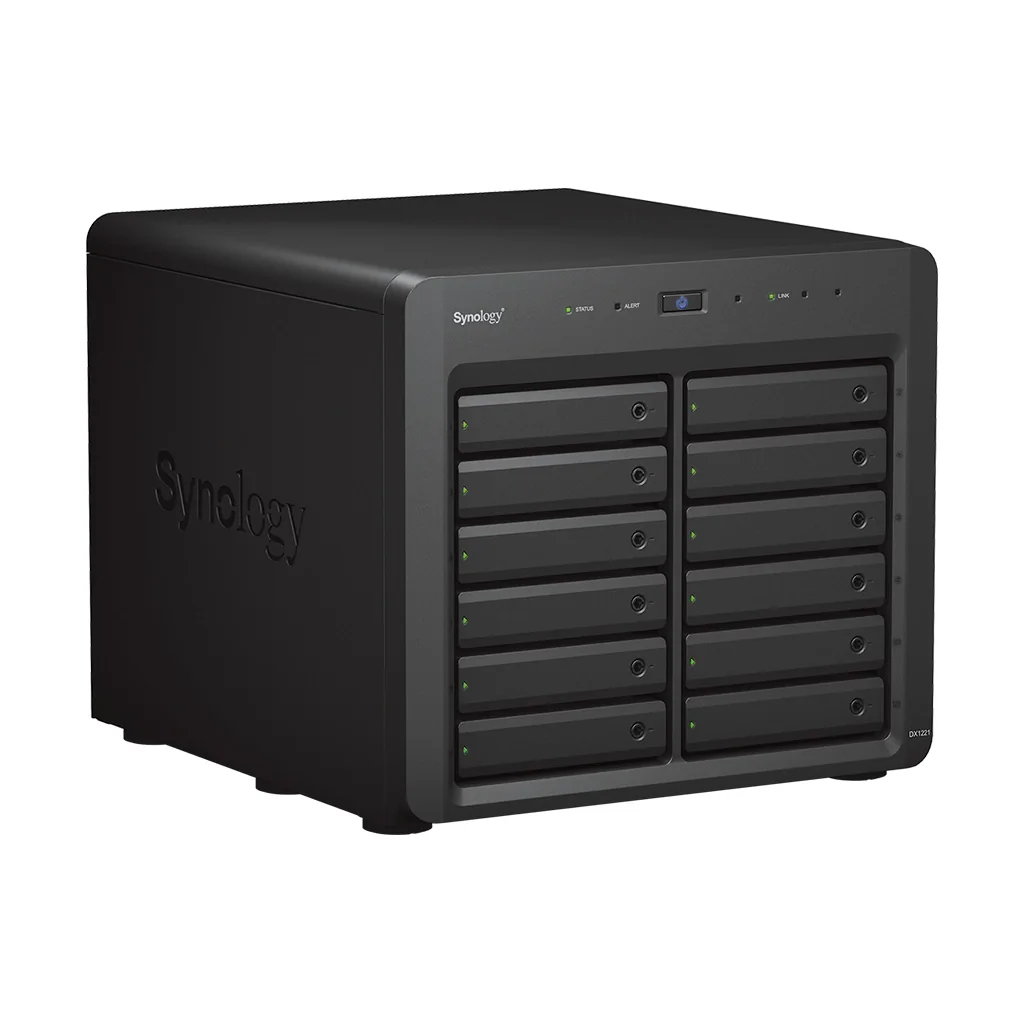

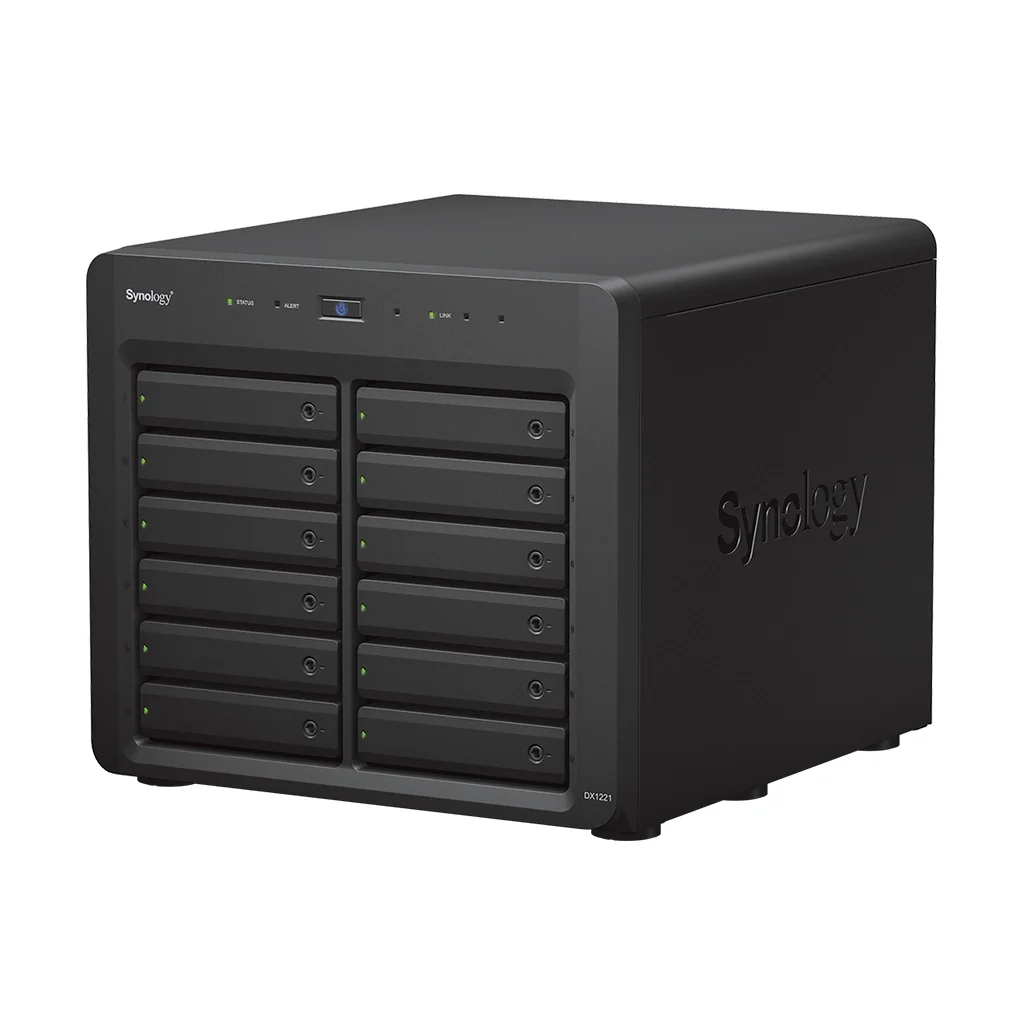

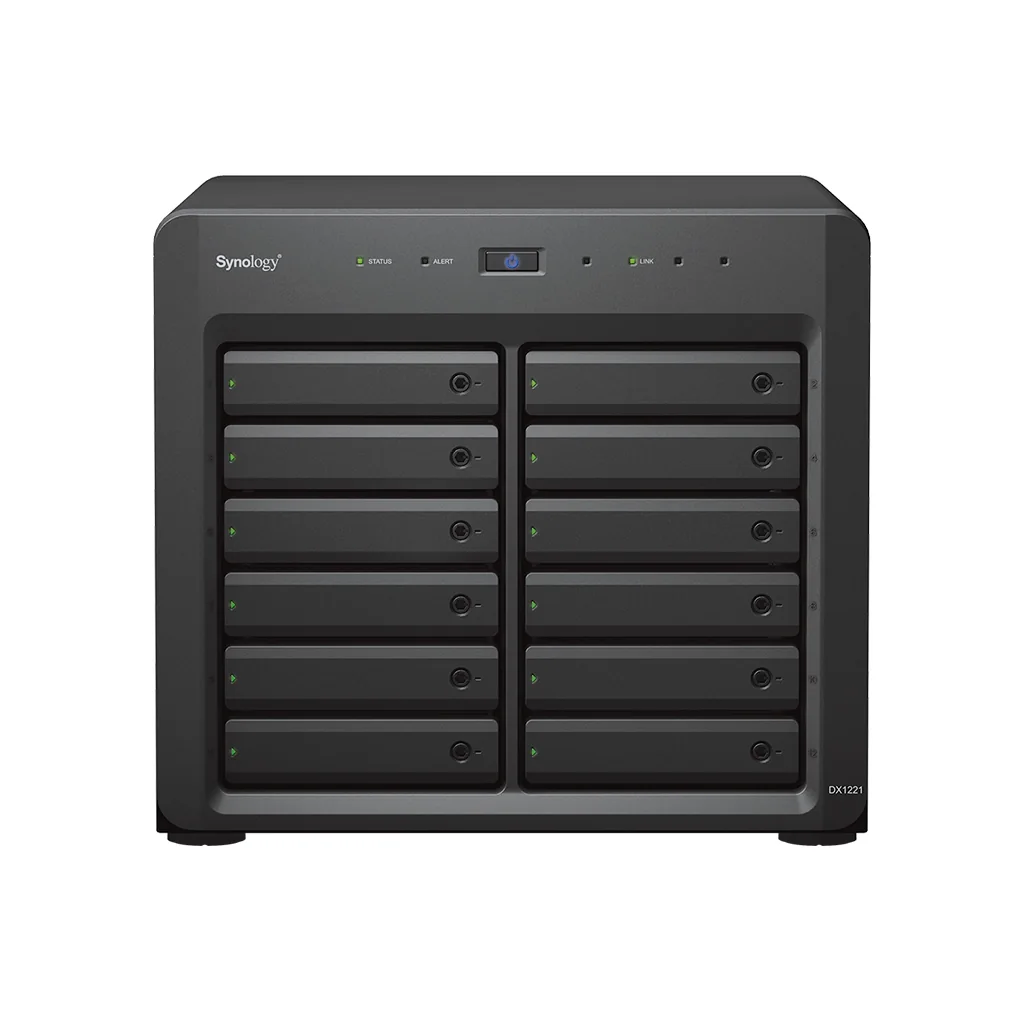

Synology DX1222 12-bay expansion unit

Name: Synology DX1222 12-bay expansion unit
Brand: Synology
SKU: DX1222
Price: 2589.00 AUD
Availability: InStock

Easily double or triple the storage capacity of your Synology DiskStation.

$2,589.00inc. GST

Only 1 left

Australian stock, GST tax invoice
Genuine Synology, full local warranty
Dispatched in 1 business day when in stock
Ask a question about this model

Bays: 12

Data sheet and downloads on synology.com

Fast setup

Your additional storage will be ready to use in a matter of moments after you connect it to your host NAS. Online volume expansion enables you add a new volume or expand RAID volumes without reformatting drives through DiskStation Manager (DSM).

Centrally manage all your drives

Benefit from unified drive management after connecting the DX1222 to your primary NAS. Maintenance, monitoring, and administration of drives on both units is simple with Synology DSM.

5-year warranty

At Synology, we are committed to product innovation and quality. Synology guarantees a robust and reliable data management experience with a 5-year limited warranty, providing responsive technical support and hardware replacement services to maximize your return on investment.

About the DX1222

Synology DX1222 expansion units let you add capacity to your Synology DiskStation on the fly. Instantly leverage up to 12 additional 2.5 or 3.5 inch drives in the same deployment thanks to a small footprint, quick installation, and Synology DiskStation Manager’s (DSM) intuitive volume management options. The unit is backed by Synology’s 5-year limited warranty. Applied Models - DS3622xs+ DS2422+

Key points

Add 12 additional drive bays to your DiskStation with minimal disruption
Applied Models - DS3622xs+ DS2422+

Specifications

As published by Synology for the DX1222. Confirm the latest data sheet before relying on a figure for a tender.

Applied Models
Supports creating volumes across different units	22 series: DS3622xs+, DS2422+
Storage
Drive Bays	12
Drive Type	3.5" SATA HDD 2.5" SATA HDD 2.5" SATA SSD
External Ports
Expansion Port	1
Appearance
Size (Height × Width × Depth)	270 mm x 300 mm x 340 mm
Weight	9.02 kg
Power
Power Recovery	Synchronized with the Synology DiskStation
Power Supply Unit / Adapter	550 W
AC Input Power Voltage	100V to 240V AC
Power Frequency	50/60 Hz, Single Phase
Power Consumption	57.71 W (Access) 16.25 W (HDD Hibernation)
British Thermal Unit	194.96 BTU/hr (Access) 55.48 BTU/hr (HDD Hibernation)
Temperature
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20°C to 60°C (-5°F to 140°F)
Operating Humidity	8% to 80% RH
Storage Humidity	5% to 95% RH
Others

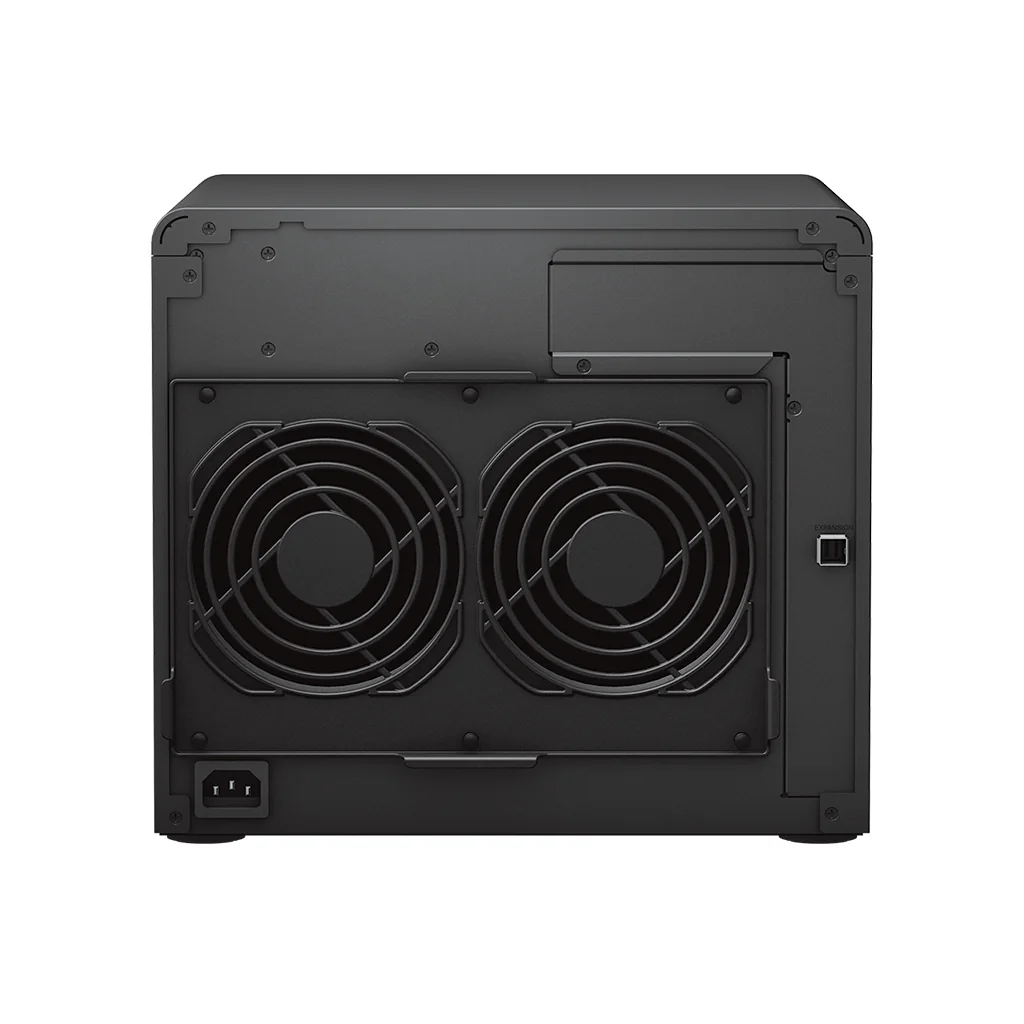

System Fan	120 mm x 120 mm x 2 pcs
Noise Level	24.6 dB(A)
