FlashStation · FS2500

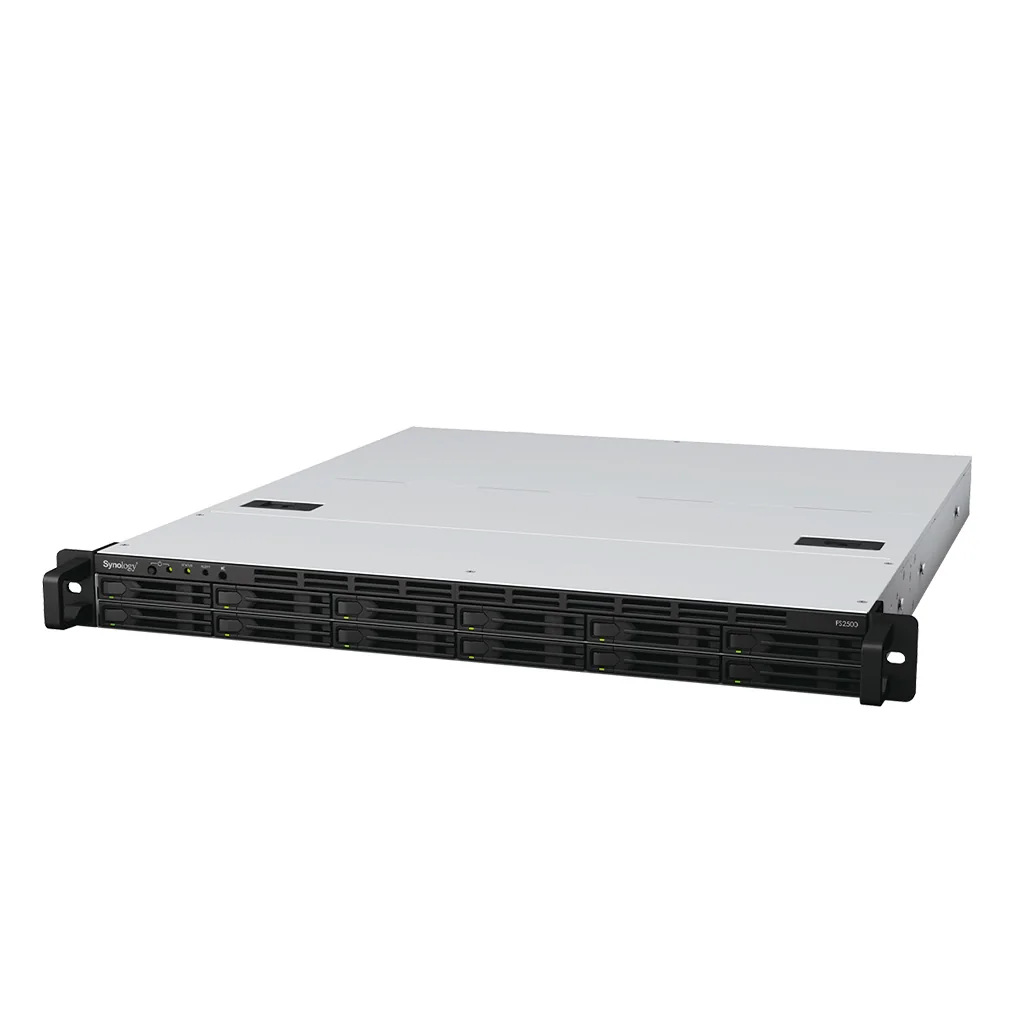

Synology FlashStation FS2500 12-bay storage system

Name: Synology FlashStation FS2500 12-bay storage system
Brand: Synology
SKU: FS2500
Price: 8299.00 AUD
Availability: OutOfStock

Cost-effective all-flash storage for small and medium-sized businesses

$8,299.00inc. GST

Out of stock

Ask about availability

Australian stock, GST tax invoice
Genuine Synology, full local warranty
Dispatched in 1 business day when in stock
Ask a question about this model

Processor: AMD Ryzen V1780B
Memory: 8 GB DDR4 ECC UDIMM
Bays: 12 × 2.5" SATA SSD
1GbE LAN ports: 2
10GbE LAN ports: 2
Form Factor: 1U

Data sheet and downloads on synology.com

Dependable storage for many scenarios

Synology NAS is a versatile storage platform that fits perfectly in file server, block storage, or light application server roles that require high availability, reliability, and leading-edge storage technology.

All the connectivity options you need

Ample built-in and supported networking options ensure that your applications fully benefit from the speed of all-flash arrays and make the FS2500 easy to integrate in any IT environment.

Built to boost service continuity

The FS2500 protects data and services through robust hardware and software safeguards, ensuring access to your digital assets even in the face of disaster.

Flash volume deduplication

Remove duplicate data on all-flash arrays with volume-wide deduplication to greatly increase storage efficiency. Eliminate redundant data to save up to 65% in storage space use in applications like virtual desktop infrastructure, and virtual machine.

Enabling effective collaboration

Give your teams reliable tools to collaborate and communicate, wherever they are.

Get more with DiskStation Manager

Take advantage of a whole host of native productivity, management, and security solutions available on the web-based Synology DSM operating system.

About the FS2500

With its compact 1U form factor, the 12-bay Synology FlashStation FS2500 is the ideal storage solution for small and medium-sized businesses looking to improve the responsiveness of I/O-intensive applications such as virtual machines (VMs), light databases, or email servers.

Key points

Designed for I/O-intensive and latency-sensitive applications, the FlashStation FS2500 12-Bay NAS Enclosure from Synology is an all-flash server
12 x 2.5" SATA SSD Drive Bays
3.35 GHz AMD Ryzen V1780B Quad-Core
8GB of DDR4 ECC RAM
Sequential Reads up to 4700 MB/s
Sequential Writes up to 2500 MB/s

Specifications

As published by Synology for the FS2500. Confirm the latest data sheet before relying on a figure for a tender.

CPU
CPU Model	AMD Ryzen V1780B
CPU Quantity	1
CPU Cores	4
CPU Threads	8
CPU Architecture	64-bit
CPU Frequency	3.35 (base) / 3.6 (turbo) GHz
Memory
System Memory	8 GB DDR4 ECC UDIMM
Memory Module Pre-installed	8 GB (8 GB × 1)
Total Memory Slots	2
Maximum Memory Capacity	32 GB (16 GB × 2)
Storage
Drive Bays	12 × 2.5" SATA SSD
External Ports
RJ-45 1GbE LAN Port	2
RJ-45 10GbE LAN Port	2
USB 3.2 Gen 1 Port	2
PCIe
PCIe Expansion	1 × Gen3 x8 slot (x4 link)
Appearance
Form Factor (RU)	1U
Size (Height × Width × Depth)	44 mm × 481.9 mm × 555.9 mm
Weight	8.3 kg
Rack Installation Support	4-post 19" rack (Synology Rail Kit - )
Others
System Fan	40 mm × 40 mm × 4 pcs
Fan Speed Mode	Full-Speed Mode Cool Mode Quiet Mode
Noise Level	57.6 dB(A)
Power Supply Unit / Adapter	350 watts
AC Input Power Voltage	100V to 240V AC
Power Frequency	50/60 Hz, Single Phase
Power Consumption	74.83 watts (Access)
British Thermal Unit	255.17 BTU/hr (Access)
Temperature
Operating Temperature	0°C to 35°C (32°F to 95°F)
Storage Temperature	-20°C to 60°C (-5°F to 140°F)
Operating Humidity	8% to 80% RH
Storage Humidity	5% to 95% RH
Warranty
Optional Accessories

Maximum Single Volume Size	200 TB (32 GB memory required) 108 TB
Maximum Internal Volume Number	256
Supported RAID Type	RAID F1 Basic JBOD RAID 0 RAID 1 RAID 5 RAID 6 RAID 10
RAID Migration	Basic to RAID 1 Basic to RAID 5 RAID 1 to RAID 5 RAID 5 to RAID 6
Volume Expansion with Larger HDDs	RAID F1 RAID 1 RAID 5 RAID 6 RAID 10
Volume Expansion by Adding a HDD	RAID F1 JBOD RAID 5 RAID 6
Global Hot Spare Supported RAID Type	RAID F1 RAID 1 RAID 5 RAID 6 RAID 10

Internal Drives	Btrfs ext4
External Drives	Btrfs ext4 ext3 FAT32 NTFS HFS+ exFAT

File Protocol	SMB AFP NFS FTP WebDAV Rsync
Maximum Number of SMB Connections (FSCT-Based)	700

Maximum Local User Accounts	2,048
Maximum Local Groups	512
Maximum Shared Folder	512
Maximum Shared Folder Sync Tasks	12

Hybrid Share Folder Number	15


Syslog Events per Second	3,000
Virtualization
VMware vSphere	ESXi 8.0 U2, ESXi 8.0 U1, ESXi 8.0, ESXi 7.0 U3, ESXi 7.0 U2, ESXi 7.0 U1, ESXi 7.0, ESXi 6.7 U3, ESXi 6.7 U2, ESXi 6.7 U1, ESXi 6.7, ESXi 6.5 U3, ESXi 6.5 U2, ESXi 6.5 U1, ESXi 6.5
Microsoft Hyper-V	Windows Server 2025, Windows Server 2022
Citrix XenServer	XenServer 8.4, XenServer 8, Citrix Hypervisor 8.2 LTSR CU1
OpenStack	Cinder

Supported Protocols	SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, Fibre Channel, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV
Supported Browsers	Chrome Firefox Edge Safari
Supported Language	English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svenska, Nederlands, Русский, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Český, ภาษาไทย, 日本語, 한국어, 繁體中文, 简体中文
Synology AI Console
Maximum De-Identification Rate	700 words per second

Maximum Number of Users	300

Maximum iSCSI Target Number	64
Maximum LUN	128

Free Email Accounts	5
Maximum Number of Users	1,600

Maximum Snapshots per Shared Folder	256
Maximum Snapshots per LUN	64
Maximum Snapshots per System	4,096
Maximum Replication Tasks for Shared Folders	32
Maximum Replication Tasks for LUNs	16
Maximum Replication Tasks per System	32

Default Licenses	2
Maximum IP Cameras and Total FPS (H.264)	1080p: 100 channels, 2800 FPS 3M: 100 channels, 1200 FPS 5M: 70 channels, 700 FPS 4K: 50 channels, 500 FPS
Maximum IP Cameras and Total FPS (H.265)	1080p: 100 channels, 3000 FPS 3M: 100 channels, 2400 FPS 5M: 100 channels, 1300 FPS 4K: 80 channels, 800 FPS

Maximum Number of Users	1,300
Maximum Number of Hosted Files	15,000,000 (applies to files indexed or hosted by . For file access through other standard protocols, refer to the File Services section above)

Maximum Number of Users	1,300

Recommended Virtual Machine Instances	8
Recommended Virtual DSM Number	8 (including 1 Free License)

Maximum Connections	12

Shipping

In-stock items leave our Australian warehouse within one business day. Order-in items usually arrive in 3 to 7 business days from the distributor. Shipping is calculated at checkout from the weight of your order (this item: 20.1 kg).
