RackStation Plus · RS2423+

Synology RackStation RS2423+ 12-bay rackmount NAS

Name: Synology RackStation RS2423+ 12-bay rackmount NAS
Brand: Synology
SKU: RS2423+
Price: 6158.60 AUD
Availability: InStock

Efficient storage for centralized data management

$6,158.60inc. GST

Only 2 left

Sold diskless. Add compatible drives below and we will ship everything together.

Australian stock, GST tax invoice
Genuine Synology, full local warranty
Dispatched in 1 business day when in stock
Ask a question about this model

Processor: AMD Ryzen V1780B
Memory: 8 GB DDR4 ECC UDIMM
Bays: 12 × 3.5" SATA HDD or 2.5" SATA SSD
Max bays with expansion: 24 (RX1223RP × 1)
1GbE LAN ports: 2
10GbE LAN ports: 1

Data sheet and downloads on synology.com

About the RS2423+

The RS2423+ is versatile and cost-effective 2U 12- bay storage servers for central data storage and sharing, endpoint and server backup, surveillance management, and other business applications. With over 3,500/1,700 MB/s sequential read/write performance, up to 216 TB of raw storage, and the option to boost I/O speeds through SSD caching, the RS2423+ provide flexible storage. Synology RS2423+ is backed by Synology's 3-year limited warranty. 5 year warranty is available as an optional bundle with EW202, 2-year Extended Warranty service add-on. Synology Live Chat available - https://www.synology.com/en-global.

Key points

The DiskStation RS2423+ 12-Bay NAS Enclosure from Synology is a versatile and cost-effective storage server for central data storage and sharing
12 x 3.5" / 2.5" SATA Drive Bays
3.35 GHz AMD Ryzen V1780B 4-Core CPU
8GB DDR4 ECC RAM
1 x Mini-SAS HD Expansion Port
PCIe 3.0 x8/x4 Expansion Slot

Specifications

As published by Synology for the RS2423+. Confirm the latest data sheet before relying on a figure for a tender.

CPU
CPU Model	AMD Ryzen V1780B
CPU Quantity	1
CPU Cores	4
CPU Threads	8
CPU Architecture	64-bit
CPU Frequency	3.35 (base) / 3.6 (turbo) GHz
Memory
System Memory	8 GB DDR4 ECC UDIMM
Memory Module Pre-installed	8 GB (8 GB × 1)
Total Memory Slots	2
Maximum Memory Capacity	32 GB (16 GB × 2)
Storage
Drive Bays	12 × 3.5" SATA HDD or 2.5" SATA SSD
Maximum Drive Bays with Expansion Unit	24 (RX1223RP × 1)

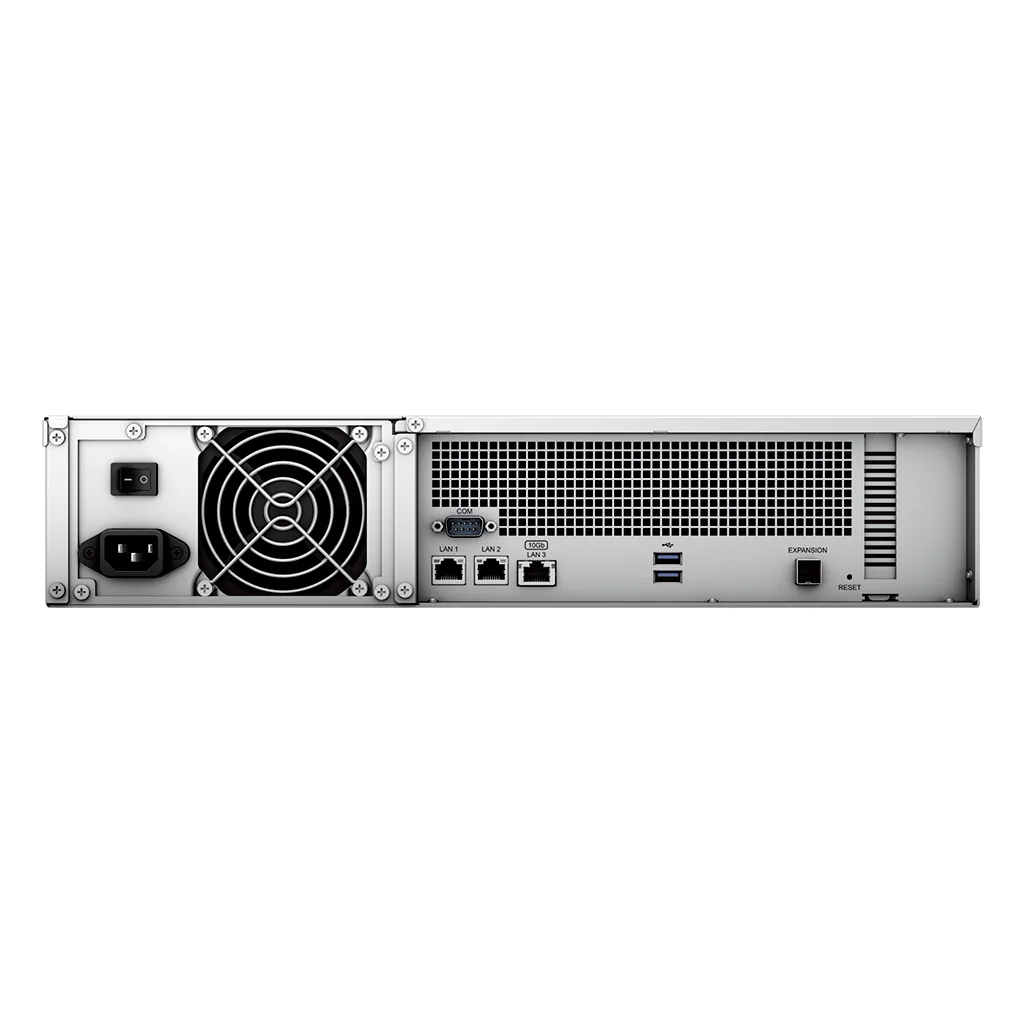

External Ports
RJ-45 1GbE LAN Port	2
RJ-45 10GbE LAN Port	1
USB 3.2 Gen 1 Port	2
Expansion Port	1
Expansion Port Type	Mini-SAS HD
PCIe
PCIe Expansion	1 × Gen3 x8 slot (x4 link)
Appearance
Form Factor (RU)	2U
Size (Height × Width × Depth)	88 mm × 482 mm × 552 mm
Weight	11.5 kg
Rack Installation Support	4-post 19" rack (Synology Rail Kit - )
Others
System Fan	60 mm × 60 mm × 3 pcs
Fan Speed Mode	Full-Speed Mode Cool Mode Quiet Mode
Noise Level	52.3 dB(A)
Power Supply Unit / Adapter	500 watts
AC Input Power Voltage	100 V to 240 V AC
Power Frequency	50/60 Hz, Single Phase
Power Consumption	119.95 watts (Access) 46.21 watts (HDD Hibernation)
British Thermal Unit	409.56 BTU/hr (Access) 157.78 BTU/hr (HDD Hibernation)
Temperature
Operating Temperature	0°C to 35°C (32°F to 95°F)
Storage Temperature	-20°C to 60°C (-5°F to 140°F)
Operating Humidity	8% to 80% RH
Storage Humidity	5% to 95% RH
Certification
	FCC CE BSMI VCCI RCM UKCA EAC CCC KC UL
Warranty
	3-year hardware warranty, extendable to 5 years with
Environment
	RoHS Compliant
Packaging Content
	Main Unit × 1 Accessory Pack × 1 AC Power Cord × 1 Quick Installation Guide × 1
Optional Accessories
	DDR4 ECC UDIMM: / Expansion Units: Enterprise Series 3.5" SATA HDD: Plus Series 3.5" SATA HDD: Enterprise Series 2.5" SATA SSD: M.2 SSD & 10GbE Combo Adapter Card: M.2 SSD Adapter Card: 25GbE Network Interface Card: 10GbE Network Interface Card: / / Rail Kit Sliding:

Shipping

In-stock items leave our Australian warehouse within one business day. Order-in items usually arrive in 3 to 7 business days from the distributor. Shipping is calculated at checkout from the weight of your order (this item: 29.001 kg).

Shipping details

Warranty

Genuine Australian stock with Synology's manufacturer warranty, serviced locally. Most Plus and xs+ models carry a three or five year warranty and are eligible for EW201/EW202 extension.

Returns and warranty
