RackStation RP · RS2825RP+

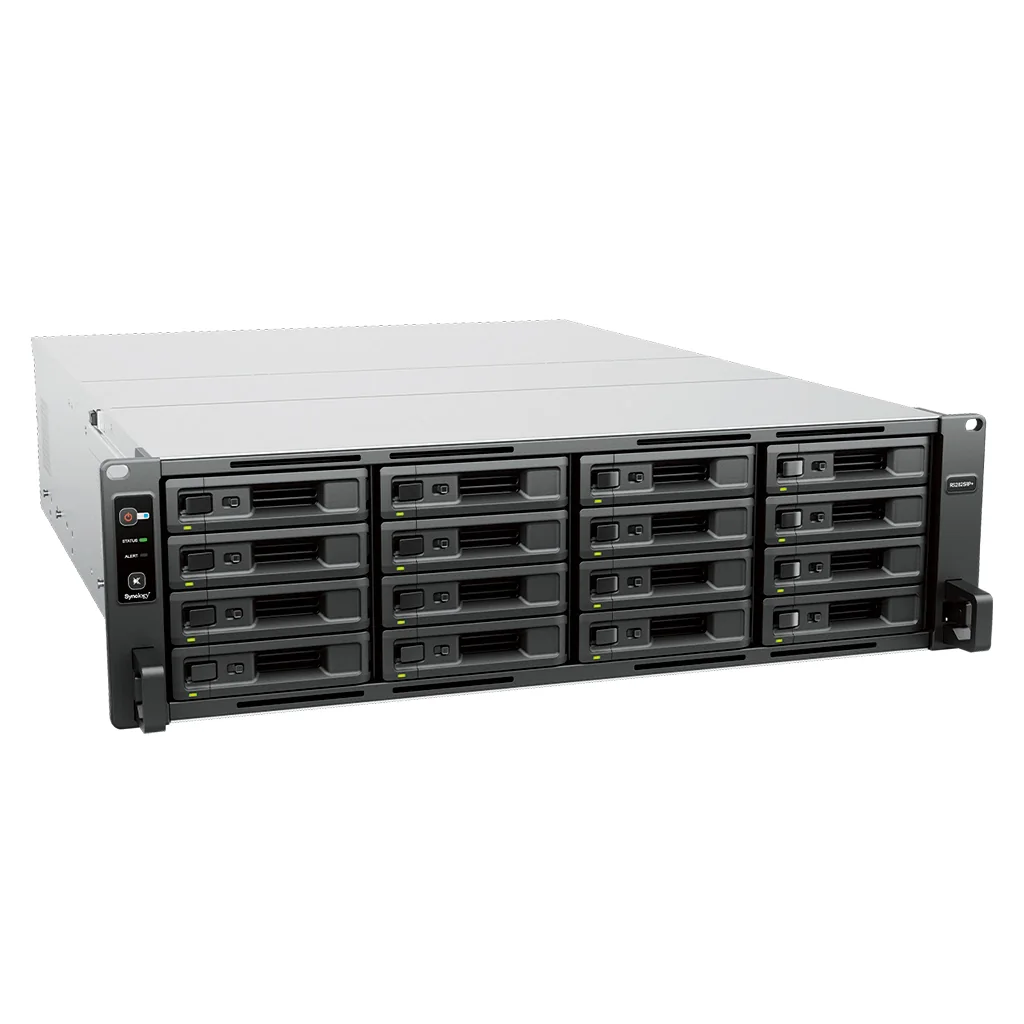

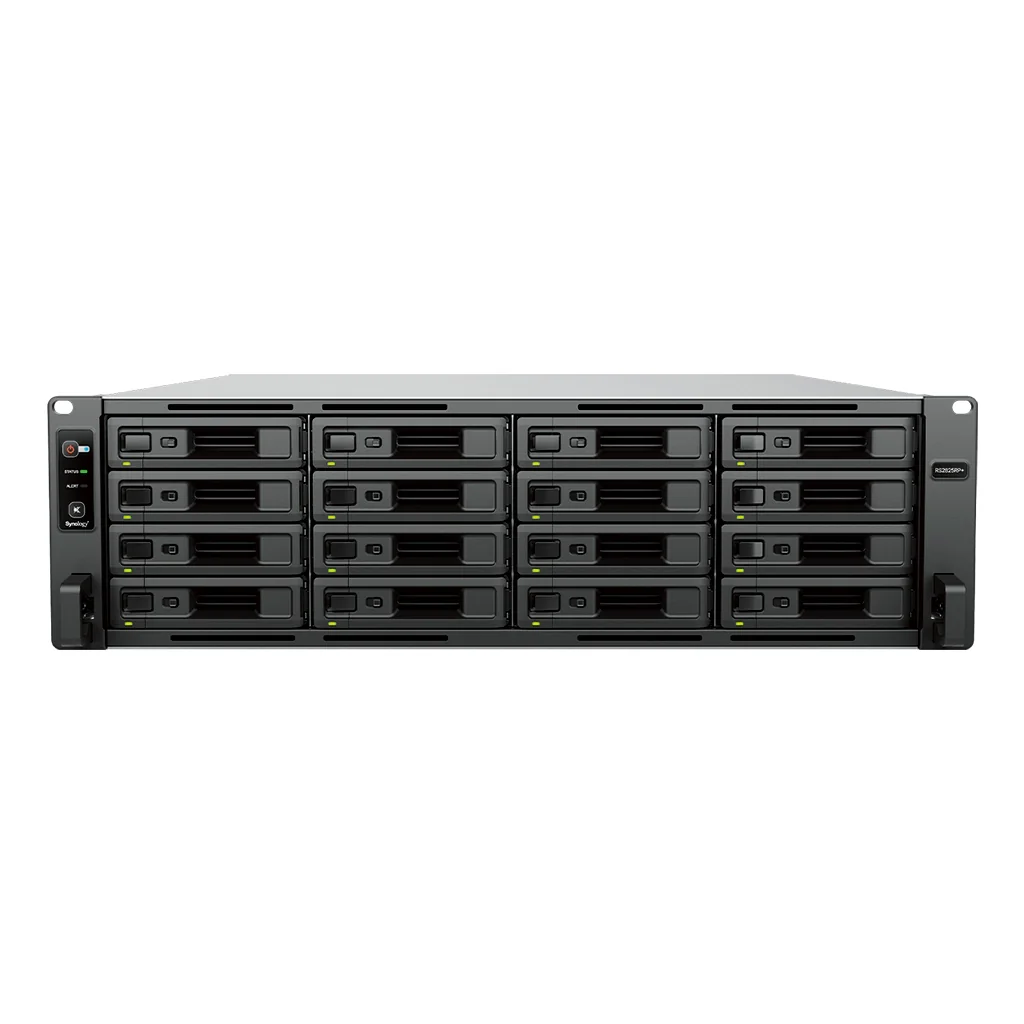

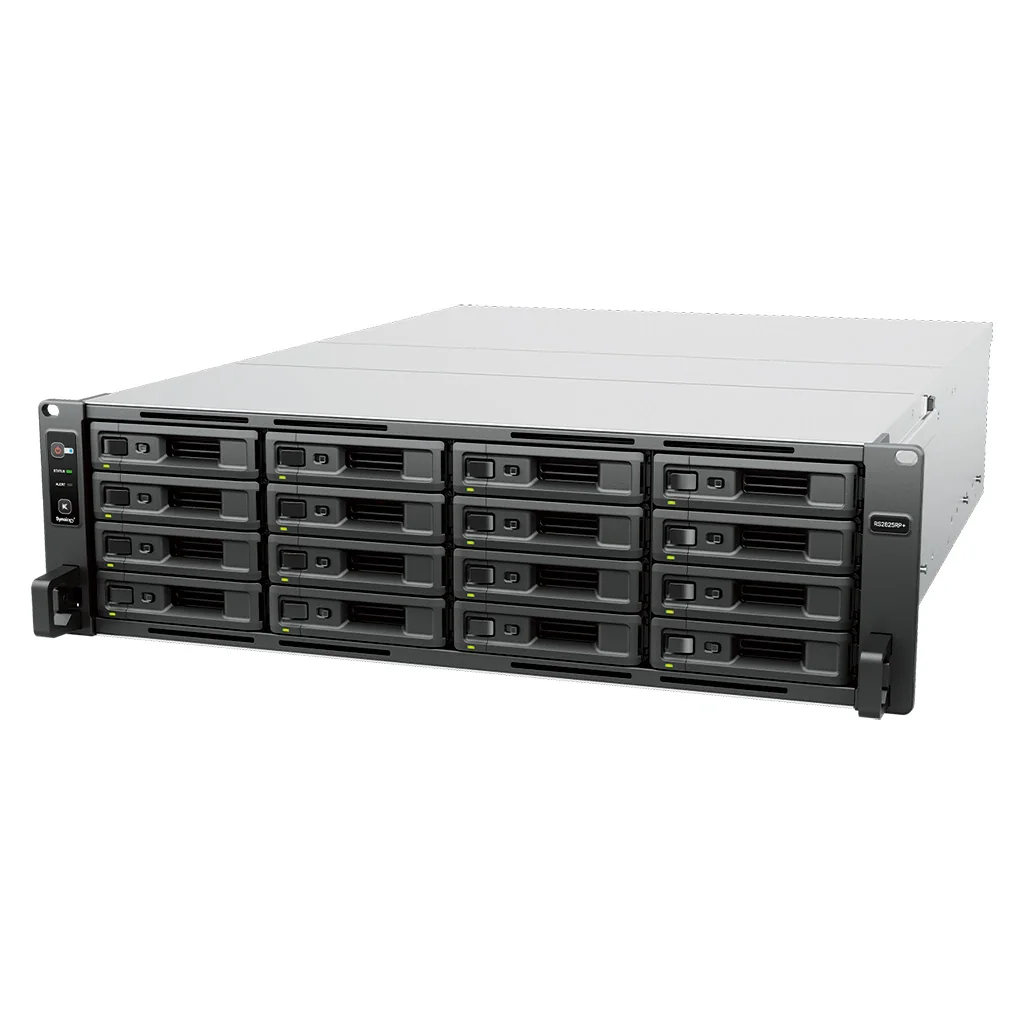

Synology RackStation RS2825RP+ 16-bay rackmount NAS

Name: Synology RackStation RS2825RP+ 16-bay rackmount NAS
Brand: Synology
SKU: RS2825RP+
Price: 8399.00 AUD
Availability: InStock

Reliable storage for data protection, file serving, and more.

$8,399.00inc. GST

Only 2 left

Sold diskless. Add compatible drives below and we will ship everything together.

Australian stock, GST tax invoice
Genuine Synology, full local warranty
Dispatched in 1 business day when in stock
Ask a question about this model

Processor: AMD Ryzen V1780B
Memory: 8 GB DDR4 ECC UDIMM
Bays: 16 × 3.5" SATA HDD or 2.5" SATA SSD
Max bays with expansion: 28 (RX1225RP × 1)
1GbE LAN ports: 2
10GbE LAN ports: 1

Data sheet and downloads on synology.com

About the RS2825RP+

Accommodates future expansion The RS2825RP+ can be flexibly configured to meet evolving needs through faster networking, local SSD cache, or increased storage. Redundant power Redundant power supplies ensure maximum server uptime by preventing single-point power failures. High-availability Pair two identical devices with Synology High Availability and enable automatic minute-level failover between both devices in the event one server fails. Learn more Network redundancy and load balancing Built-in 1x 10GbE and 2x 1GbE ports can be bonded with Link Aggregation to enable automatic network failover and load balancing. Request quote for project support

Specifications

As published by Synology for the RS2825RP+. Confirm the latest data sheet before relying on a figure for a tender.

CPU
CPU Model	AMD Ryzen V1780B
CPU Quantity	1
CPU Cores	4
CPU Threads	8
CPU Architecture	64-bit
CPU Frequency	3.35 (base) / 3.6 (turbo) GHz
Memory
System Memory	8 GB DDR4 ECC UDIMM
Memory Module Pre-installed	8 GB (8 GB × 1)
Total Memory Slots	2
Maximum Memory Capacity	32 GB (16 GB × 2)
Storage
Drive Bays	16 × 3.5" SATA HDD or 2.5" SATA SSD
Maximum Drive Bays with Expansion Unit	28 (RX1225RP × 1)

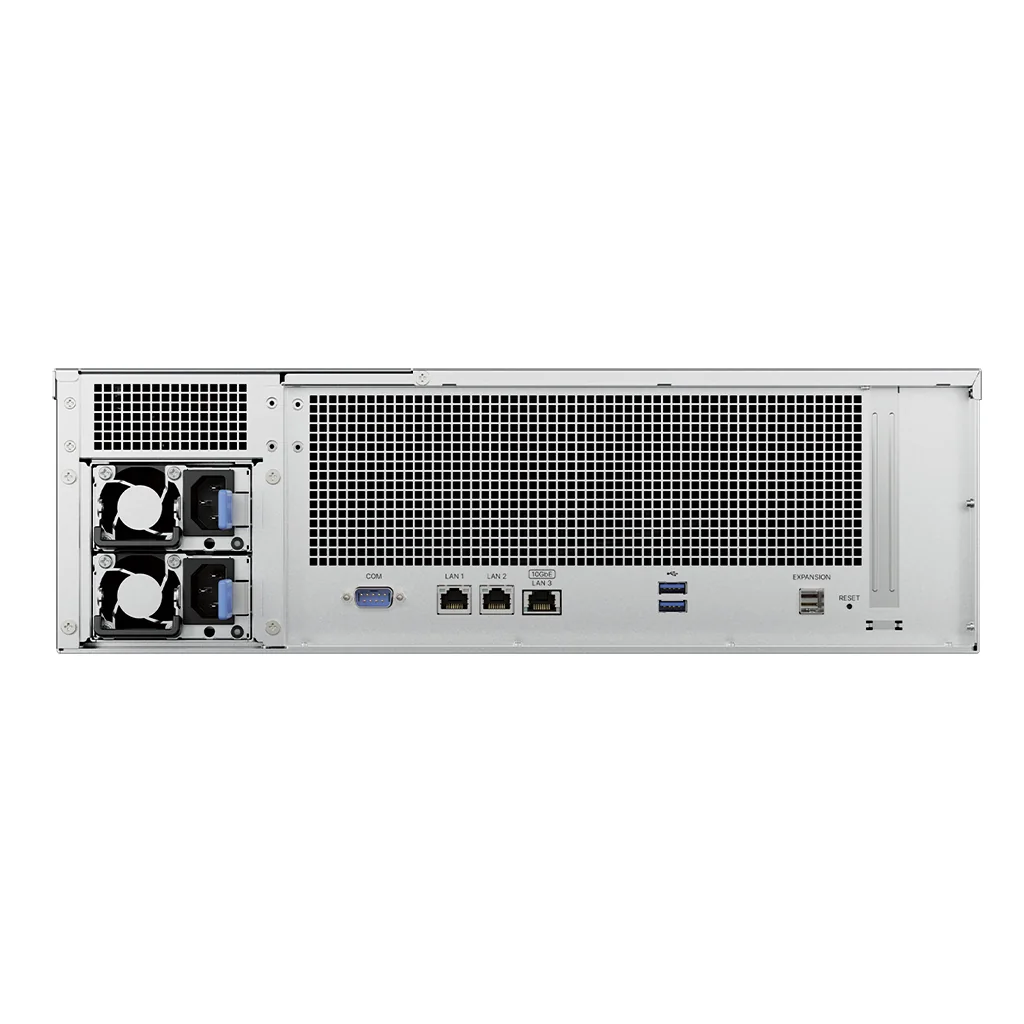

External Ports
RJ-45 1GbE LAN Port	2
RJ-45 10GbE LAN Port	1
USB 3.2 Gen 1 Port	2
Expansion Port	1
Expansion Port Type	Mini-SAS HD
PCIe
PCIe Expansion	1 × Gen3 x8 slot (x4 link)
Appearance
Form Factor (RU)	3U
Size (Height × Width × Depth)	132.3 mm × 482 mm × 656.5 mm
Weight	17.3 kg
Rack Installation Support	4-post 19" rack (Synology Rail Kit - )
Others
System Fan	80 mm × 80 mm × 3 pcs
Fan Speed Mode	Full-Speed Mode Cool Mode Quiet Mode
Noise Level	49.6 dB(A)
Power Supply Unit / Adapter	550 watts
AC Input Power Voltage	100 V to 240 V AC
Power Frequency	50/60 Hz, Single Phase
Power Consumption	134.48 watts (Access) 50.81 watts (HDD Hibernation)
British Thermal Unit	459.17 BTU/hr (Access) 173.49 BTU/hr (HDD Hibernation)
Temperature
Operating Temperature	0°C to 35°C (32°F to 95°F)
Storage Temperature	-20°C to 60°C (-5°F to 140°F)
Operating Humidity	8% to 80% RH
Storage Humidity	5% to 95% RH
Warranty
Optional Accessories

Maximum Single Volume Size	200 TB (32 GB memory required) 108 TB
Maximum Internal Volume Number	32
Supported RAID Type	Synology Hybrid RAID Basic JBOD RAID 0 RAID 1 RAID 5 RAID 6 RAID 10
RAID Migration	Basic to RAID 1 Basic to RAID 5 RAID 1 to RAID 5 RAID 5 to RAID 6
Volume Expansion with Larger HDDs	Synology Hybrid RAID RAID 1 RAID 5 RAID 6 RAID 10
Volume Expansion by Adding a HDD	Synology Hybrid RAID JBOD RAID 5 RAID 6
Global Hot Spare Supported RAID Type	Synology Hybrid RAID RAID 1 RAID 5 RAID 6 RAID 10

Internal Drives	Btrfs
External Drives	Btrfs ext4 ext3 FAT32 NTFS HFS+ exFAT

File Protocol	SMB AFP NFS FTP WebDAV Rsync
Maximum Number of SMB Connections (FSCT-Based)	560

Maximum Local User Accounts	1,024
Maximum Local Groups	256
Maximum Shared Folder	256
Maximum Shared Folder Sync Tasks	12

Hybrid Share Folder Number	10

Syslog Events per Second	1,000
Virtualization
VMware vSphere	ESXi 8.0 U2, ESXi 8.0 U1, ESXi 8.0, ESXi 7.0 U3, ESXi 7.0 U2, ESXi 7.0 U1, ESXi 7.0, ESXi 6.7 U3, ESXi 6.7 U2, ESXi 6.7 U1, ESXi 6.7, ESXi 6.5 U3, ESXi 6.5 U2, ESXi 6.5 U1, ESXi 6.5
Microsoft Hyper-V	Windows Server 2025, Windows Server 2022
Citrix XenServer	XenServer 8.4, XenServer 8, Citrix Hypervisor 8.2 LTSR CU1
OpenStack	Cinder

Supported Protocols	SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV
Supported Browsers	Chrome Firefox Edge Safari
Supported Language	English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svenska, Nederlands, Русский, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Český, ภาษาไทย, 日本語, 한국어, 繁體中文, 简体中文
Synology AI Console
Maximum De-Identification Rate	500 words per second

Maximum Number of Users	300
Download Station
Maximum Concurrent Download Tasks	80

Maximum iSCSI Target Number	64
Maximum LUN	128

Free Email Accounts	5
Maximum Number of Users	1,100

Maximum Snapshots per Shared Folder	256
Maximum Snapshots per LUN	64
Maximum Snapshots per System	4,096
Maximum Replication Tasks for Shared Folders	32
Maximum Replication Tasks for LUNs	16
Maximum Replication Tasks per System	32

Default Licenses	2
Maximum IP Cameras and Total FPS (H.264)	1080p: 90 channels, 2250 FPS 3M: 90 channels, 1500 FPS 5M: 90 channels, 900 FPS 4K: 55 channels, 550 FPS
Maximum IP Cameras and Total FPS (H.265)	1080p: 90 channels, 2700 FPS 3M: 90 channels, 2250 FPS 5M: 90 channels, 1500 FPS 4K: 90 channels, 1080 FPS

Maximum Number of Users	1,000
Maximum Number of Hosted Files	15,000,000 (applies to files indexed or hosted by . For file access through other standard protocols, refer to the File Services section above)

Maximum Number of Users	900

Recommended Virtual Machine Instances	8
Recommended Virtual DSM Number	8 (including 1 Free License)

Maximum Connections	12
