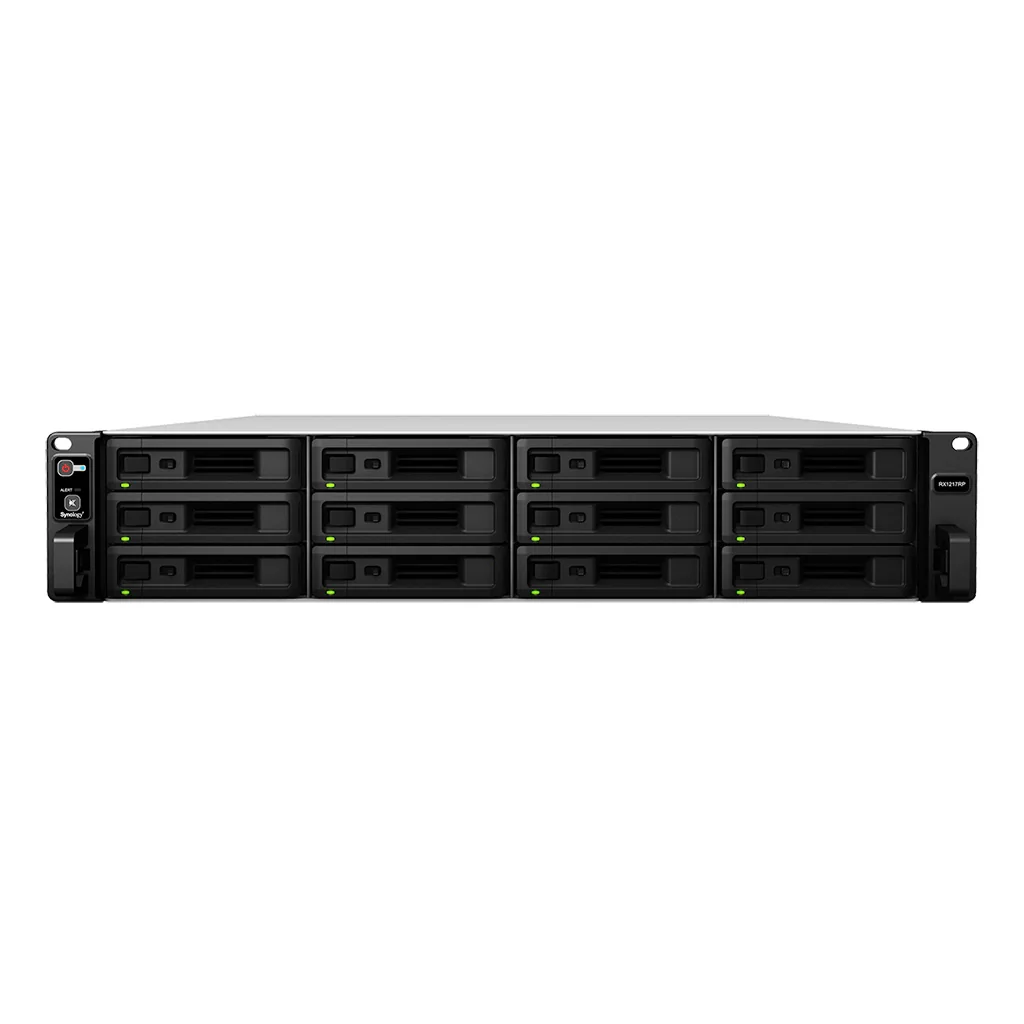

Synology RX1217 12-bay expansion unit

Name: Synology RX1217 12-bay expansion unit
Brand: Synology
SKU: RX1217
Price: 3291.00 AUD
Availability: InStock

Scale up your RackStation in a breeze

$3,291.00inc. GST

Only 2 left

Australian stock, GST tax invoice
Genuine Synology, full local warranty
Dispatched in 1 business day when in stock
Ask a question about this model

Bays: 12

Data sheet and downloads on synology.com

Volume expansion & backup

When drive capacity is running low on a Synology RackStation, Synology RX1217RP/RX1217 offers an easy way to immediately expand storage by providing 12 additional drive slots. The RAID volume on the Synology RackStation can be expanded directly without having to reformat the existing hard drives, ensuring service continuity during the expansion process. To ensure 24/7 service uptime, Synology RX1217RP is equipped with redundant power supplies, allowing automatic failover support if one of the PSUs fail.

Reliable plug-and-use design

Synology RX1217RP/RX1217 securely connects to Synology RackStation servers with a high-bandwidth expansion cable, ensuring maximum data throughput and smooth operation — as if they are part of the internal drives of Synology RackStation. SATA 6Gb/s interface ensures the installed drives provide high quality, outstanding data processing performance.

Green & easy to manage

Hibernation mode can be manually configured to start automatically when the system has been inactive for a period of time. This not only saves energy but also extends the lifespan of hard drives. RX1217RP/RX1217 will also smartly power on/off with the attached RackStation, so no user intervention is needed to keep this system running smartly and efficiently.

About the RX1217

Synology Expansion Unit RX1217/RX1217RP delivers an effortless solution for data volume expansion and data backup for Synology 2U RackStation NAS. With additional 12 drive bays, RX1217/RX1217RP seamlessly expands the storage capacity of the connected Synology NAS on-the-fly. Synology RX1217/RX1217RP is backed with Synology's 5-year limited warranty. Synology Live Chat available - https://www.synology.com/en-global

Key points

Plug-n-use design for seamless storage space upgrade
Online volume expansion on the fly
Managed from Synology DiskStation Manager (DSM)
Model backed with Synology Replacement Service (SRS) - Conditions apply. Refer to the Synology Website
Applied Models RS4017xs+ RS3617xs+ RS3614xs+ RS3413xs+ RS3617xs RS3617RPxs RS3614(RP)xs RS3412(RP)xs RS3411(RP)xs RS2416(RP)+ RS2414(RP)+ RS2212(RP)+ RS2211(RP)+
Additional Service and Warranty Packages available - ASK your MMT Account Manager for more details.
Model requires the additional purchase of a Rail Kit for installation in a Server Rack

Specifications

As published by Synology for the RX1217. Confirm the latest data sheet before relying on a figure for a tender.

Applied Models
Supports creating volumes across different units	21 series: RS4021xs+, RS3621xs+, RS3621RPxs, RS2821RP+, RS2421RP+, RS2421+ 19 series: RS1619xs+ 18 series: RS3618xs, RS2818RP+, RS2418RP+, RS2418+ 17 series: RS4017xs+, RS3617xs+, RS3617RPxs, RS3617xs 16 series: RS2416RP+, RS2416+ 14 series: RS3614xs+, RS3614RPxs, RS3614xs, RS2414RP+, RS2414+ 13 series: RS3413xs+ 12 series: RS3412RPxs, RS3412xs, RS2212RP+, RS2212+ 11 series: RS3411RPxs, RS3411xs, RS2211RP+, RS2211+
Storage
Drive Bays	12
Drive Type	3.5" SATA HDD 2.5" SATA HDD 2.5" SATA SSD
External Ports
Expansion Port	1
Appearance
Size (Height × Width × Depth)	88 mm x 430.5 mm x 664 mm
Size (Height x Width x Depth) (with server ears)	88 mm x 482 mm x 696 mm
Weight	12.7 kg
Rack Installation Support	4-post 19" rack (Synology Rail Kit - )
Power
Power Recovery	Synchronized with the Synology RackStation
Power Supply Unit / Adapter	500 W
AC Input Power Voltage	100V to 240V AC
Power Frequency	50/60 Hz, Single Phase
Power Consumption	68.60 W (Access) 27.45 W (HDD Hibernation)
British Thermal Unit	234.23 BTU/hr (Access) 93.73 BTU/hr (HDD Hibernation)
Temperature
Operating Temperature	5°C to 35°C (40°F to 95°F)
Storage Temperature	-20°C to 60°C (-5°F to 140°F)
Operating Humidity	8% to 80% RH
Storage Humidity	5% to 95% RH
Others
System Fan	80 mm x 80 mm x 3 pcs
Noise Level	54.6 dB(A)
Certification
	FCC CE BSMI EAC RCM KC
Warranty
	5 Years
Environment
	RoHS Compliant
Packaging Content
	Main Unit × 1 Accessory Pack × 1 AC Power Cord × 1 Expansion Cable: Infiniband X 1 Quick Installation Guide × 1
Optional Accessories
	Enterprise Series 3.5" SATA HDD: Plus Series 3.5" SATA HDD: Enterprise Series 2.5" SATA SSD: Rail Kit Sliding:

Shipping

In-stock items leave our Australian warehouse within one business day. Order-in items usually arrive in 3 to 7 business days from the distributor. Shipping is calculated at checkout from the weight of your order (this item: 32 kg).
