RX expansion · RX1222SAS

Synology RX1222SAS 12-bay expansion unit

Name: Synology RX1222SAS 12-bay expansion unit
Brand: Synology
SKU: RX1222SAS
Price: 5070.93 AUD
Availability: BackOrder

Plug-and-play capacity expansion for Synology servers

$5,070.93inc. GST

Available to orderShipped from distributor

Australian stock, GST tax invoice
Genuine Synology, full local warranty
Dispatched in 1 business day when in stock
Ask a question about this model

Bays: 12

Data sheet and downloads on synology.com

Accommodate massive storage growth

Expand your Synology rackmount SAS storage 12 bays at a time, for up to 84 additional 3.5"/2.5" SAS/SATA drives with a maximum of seven Synology RX1222sas expansion units. Add volumes when and where needed without interrupting services, thanks to Synology DiskStation Manager (DSM)’s online volume expansion and powerful volume management options.

Easy setup and management

Connect the RX1222sas through the included expansion cable and start managing the additional storage in minutes with Storage Manager and other intuitive tools in Synology DSM. Online volume expansion enables you to add a new volume or expand RAID volumes without reformatting drives.

Built with service uptime in mind

RX1222sas’s hot-swappable drive trays, fans, and power supplies reduce the impact of maintenance on service availability, while the redundant power supply units keep your system online even in case one power source fails.

5-year warranty

At Synology, we are committed to product innovation and quality. Synology guarantees a robust and reliable data management experience with a 5-year limited warranty, providing responsive technical support and hardware replacement services to maximize your return on investment.

About the RX1222SAS

Accommodate massive storage growth Expand your Synology rackmount SAS storage 12 bays at a time, for up to 84 additional 3.5"/2.5" SAS/SATA drives with a maximum of seven Synology RX1222sas expansion units.1 Add volumes when and where needed without interrupting services, thanks to Synology DiskStation Manager (DSM)’s online volume expansion and powerful volume management options.

Key points

Hardware & Compatibility
Drive Bays: 12
Supported Drive Types:
3.5" SAS HDD
2.5" SAS SSD
3.5" SATA HDD
2.5" SATA SSD
Hot Swappable Drives: Yes
RAID Management: Managed through Synology DSM
Supported Host NAS Models: SA3610, SA3600, SA3410, SA3400 (see official compatibility list)
DSM Version Requirement: 6.2.4-25556 Update 3, 7.0.1-42218 Update 2, or later

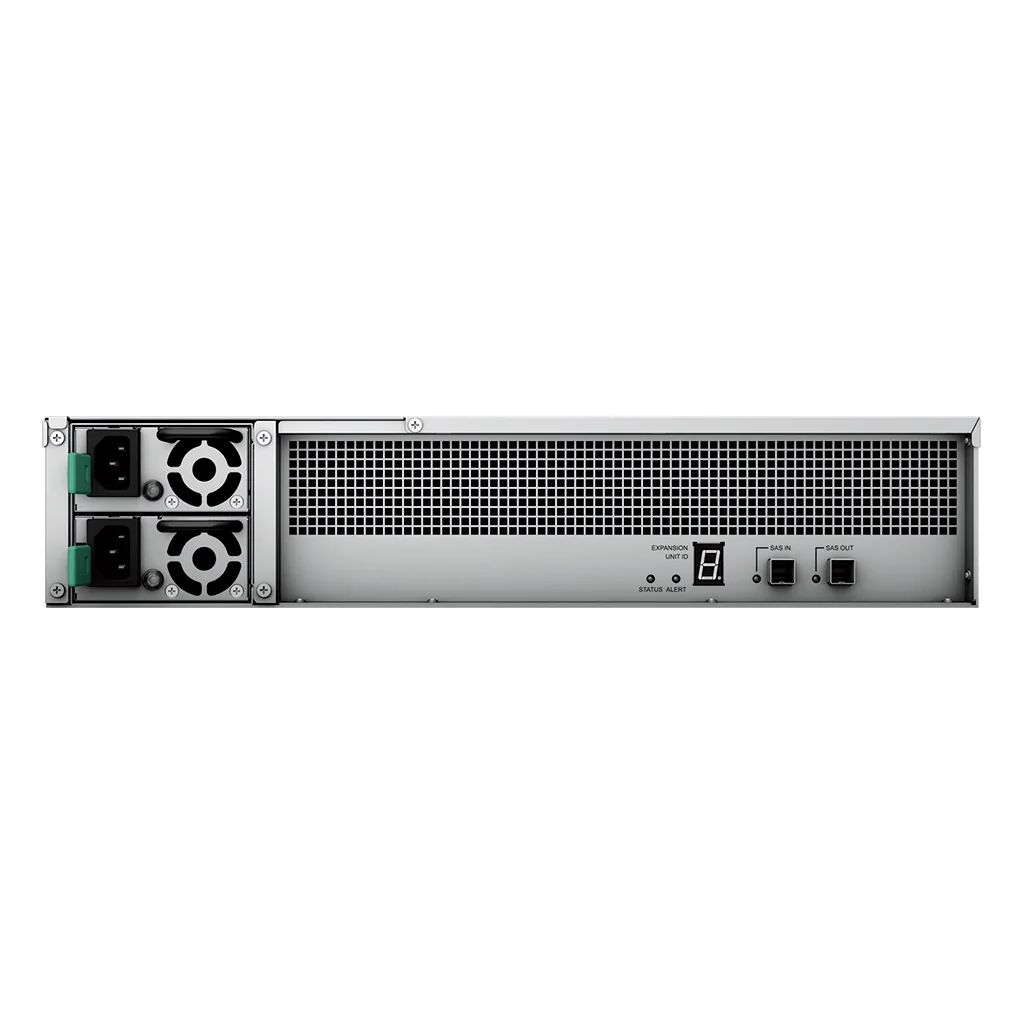

External Ports
SAS IN-port: 1
SAS OUT-port: 1

Specifications

As published by Synology for the RX1222SAS. Confirm the latest data sheet before relying on a figure for a tender.

Applied Models
Supports creating volumes across different units	FS series: FS6400, FS3600, FS3400 SA series: SA3610, SA3600, SA3410, SA3400 26 series: RS11626xs+
Storage
Drive Bays	12
Drive Type	3.5" SAS HDD 2.5" SAS SSD 3.5" SATA HDD 2.5" SATA SSD
External Ports
SAS IN-port	1
SAS OUT-port	1
Appearance
Size (Height × Width × Depth)	88 mm x 430.5 mm x 692 mm
Size (Height x Width x Depth) (with server ears)	88 mm x 482 mm x 724 mm
Weight	13.5 kg
Rack Installation Support	4-post 19" rack (Synology Rail Kit - )
Power
Power Supply Unit / Adapter	500 W
AC Input Power Voltage	100V to 240V AC
Power Frequency	50/60 Hz, Single Phase
Power Consumption	194.4 W (Access) 82.56 W (HDD Hibernation)
British Thermal Unit	663.48 BTU/hr (Access) 281.77 BTU/hr (HDD Hibernation)
Temperature
Operating Temperature	0°C to 35°C (32°F to 95°F)
Storage Temperature	-20°C to 60°C (-5°F to 140°F)
Operating Humidity	8% to 80% RH
Storage Humidity	5% to 95% RH
Others
System Fan	80 mm x 80 mm x 4 pcs
Noise Level	54.5 dB(A)
