RX expansion · RX1223RP

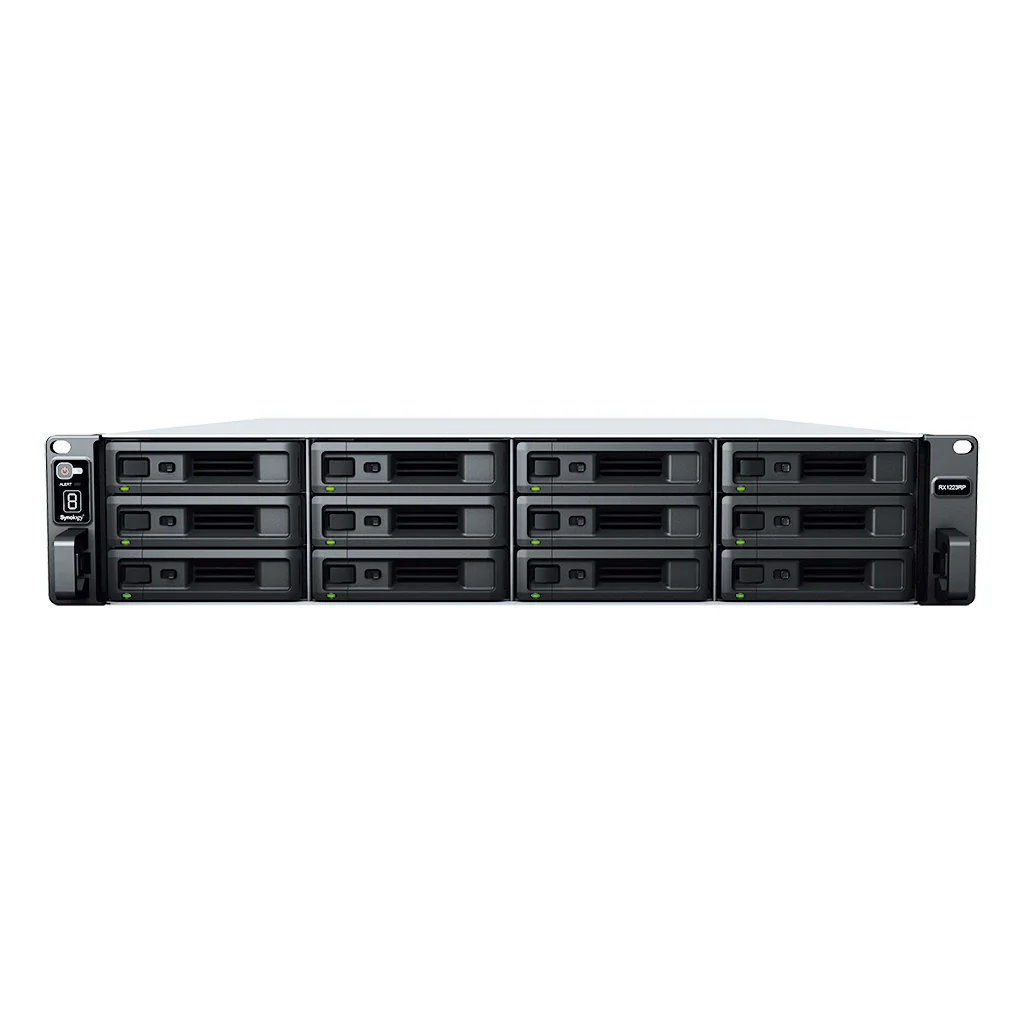

Synology RX1223RP 12-bay expansion unit

Name: Synology RX1223RP 12-bay expansion unit
Brand: Synology
SKU: RX1223RP
Price: 4999.00 AUD
Availability: InStock

Reliable storage expansion with redundant power

$4,999.00inc. GST

Only 2 left

Australian stock, GST tax invoice
Genuine Synology, full local warranty
Dispatched in 1 business day when in stock
Ask a question about this model

Bays: 12

Data sheet and downloads on synology.com

Seamless 12-bay capacity expansion

Add up to 96 storage bays to compatible units with Synology Expansion Unit RX1223RP. Enlarge or create new volumes without system or service downtime thanks to online storage expansion.

Expand storage on the fly

RX1223RP provides simple storage expansion with 12 drive bays for 3.5”/2.5” SATA HDD/SDD drives.

Redundant design for high reliability

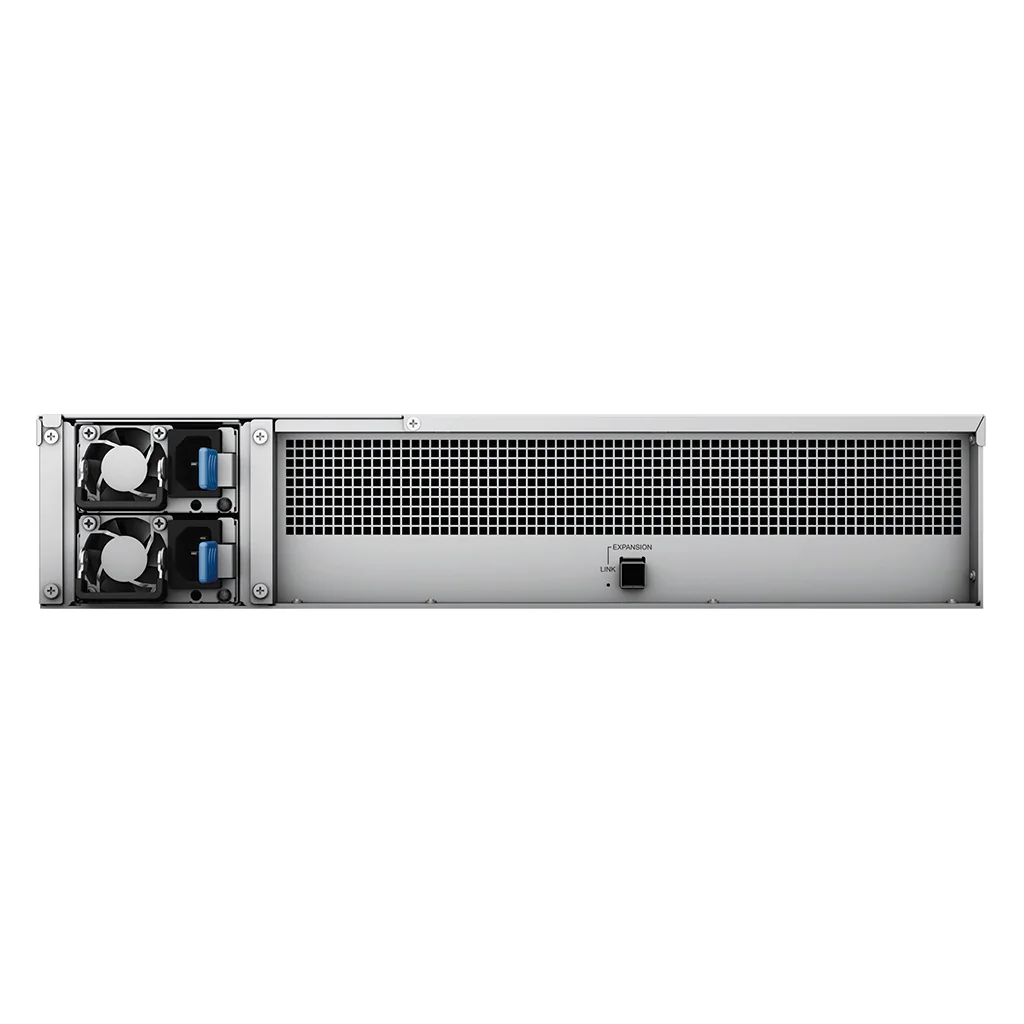

Modular drive trays and system fans enable easy and quick replacement, reducing the impact of maintenance on service availability. Redundant power supply units keep your data online in the event one power source fails.

Simple deployment and management

Plug-and-play design means the RX1223RP is ready to use as soon as it is connected to a host device.

Synology has you covered

The RX1223RP is backed by Synology's 5-year limited warranty, including technical support and hardware replacement services to maximize your return on investment and ensure continued high-quality performance.

About the RX1223RP

Synology Expansion Unit RX1223RP delivers an effortless solution for data volume expansion and data backup for Synology 2U RackStation NAS. With additional 12 drive bays, RX1223RP seamlessly expands the storage capacity of the connected Synology NAS on-the-fly. Synology RX1223RP is backed with Synology's 5-year limited warranty.

Key points

Model requires the additional purchase of a Rail Kit for installation in a Server Rack
RX1223RP Compatible Models SA series: SA6400 23 series: RS2423RP+, RS2423+

Specifications

As published by Synology for the RX1223RP. Confirm the latest data sheet before relying on a figure for a tender.

Applied Models
Supports creating volumes across different units	SA series: SA6400 23 series: RS2423RP+II, RS2423RP+, RS2423+
Storage
Drive Bays	12
Drive Type	3.5" SATA HDD 2.5" SATA SSD
External Ports
Expansion Port	1
Appearance
Size (Height × Width × Depth)	88 mm x 430.5 mm x 692 mm
Size (Height x Width x Depth) (with server ears)	88 mm x 482 mm x 724 mm
Weight	13.9 kg
Rack Installation Support	4-post 19" rack (Synology Rail Kit - )
Power
Power Recovery	Synchronized with the Synology RackStation
Power Supply Unit / Adapter	550 W
AC Input Power Voltage	100V to 240V AC
Power Frequency	50/60 Hz, Single Phase
Power Consumption	93.59 W (Access) 30.73 W (HDD Hibernation)
British Thermal Unit	319.34 BTU/hr (Access) 104.86 BTU/hr (HDD Hibernation)
Temperature
Operating Temperature	0°C to 35°C (32°F to 95°F)
Storage Temperature	-20°C to 60°C (-5°F to 140°F)
Operating Humidity	8% to 80% RH
Storage Humidity	5% to 95% RH
Others
System Fan	80 mm x 80 mm x 4 pcs
Noise Level	54.3 dB(A)
