RX expansion · RXD1219SAS

Synology RXD1219SAS 12-bay expansion unit

Name: Synology RXD1219SAS 12-bay expansion unit
Brand: Synology
SKU: RXD1219SAS
Price: 8119.00 AUD
Availability: BackOrder

Reliable and highly scalable SAS storage expansion unit for your Synology servers

$8,119.00inc. GST

Available to orderShipped from distributor

Australian stock, GST tax invoice
Genuine Synology, full local warranty
Dispatched in 1 business day when in stock
Ask a question about this model

Bays: 12

Data sheet and downloads on synology.com

On-the-fly SAS expansion up to 12 additional bays

RXD1219sas is a 2U expansion unit designed to work automatically when connected, providing an effortless storage space upgrade solution for your Synology servers . You can add up to 12 additional 2.5" / 3.5" SAS drive bays on the fly when connected directly with a mini-SAS HD cable.

Designed for maximum reliability

The redundant power supplies ensure maximum service uptime. On the rare occasion when a failure occurs, you can instantly replace the hot-swappable drive trays, and with the key system components modularized, SAS modules and system fans can also be replaced with ease.

High-performance data transmission

The mini-SAS HD provides high bandwidth connectivity to achieve maximum throughput during data transfer between your Synology server and RXD1219sas. It allows the drives in the connected RXD1219sas to operate as if they are the internal drives of the Synology server with no data latency.

5-year warranty

At Synology, we are committed to product innovation and quality. Synology guarantees a robust and reliable data management experience with a 5-year limited warranty, providing responsive technical support and hardware replacement services to maximize your return on investment.

About the RXD1219SAS

Synology RXD1219sas is a 2U expansion unit, providing an easy storage space upgrade solution for your Synology servers. It can add up to 12 additional 2.5" / 3.5" SAS drive bays on the fly when connected directly with a mini-SAS HD cable. Synology RXD1219sas is backed by Synology's 5-year limited warranty.

Key points

Plug-and-play design for seamless storage space upgrade
12 additional SAS interface drive bays available for online volume expansion on the fly
Mini-SAS HD connectivity enabling high performance data transmission
Redundant power supplies that maximize service uptime
Fast rack fixing lock support with Synology Rail Kit RKS1317

Specifications

As published by Synology for the RXD1219SAS. Confirm the latest data sheet before relying on a figure for a tender.

Applied Models
Supports creating volumes across different units	SA series: SA3400D, SA3200D
Supports creating volumes on a single unit only	UC series: UC3400, UC3200
Storage
Drive Bays	12
Drive Type	2.5” dual port SAS SSD 2.5” dual port SAS HDD 3.5” dual port SAS HDD
External Ports

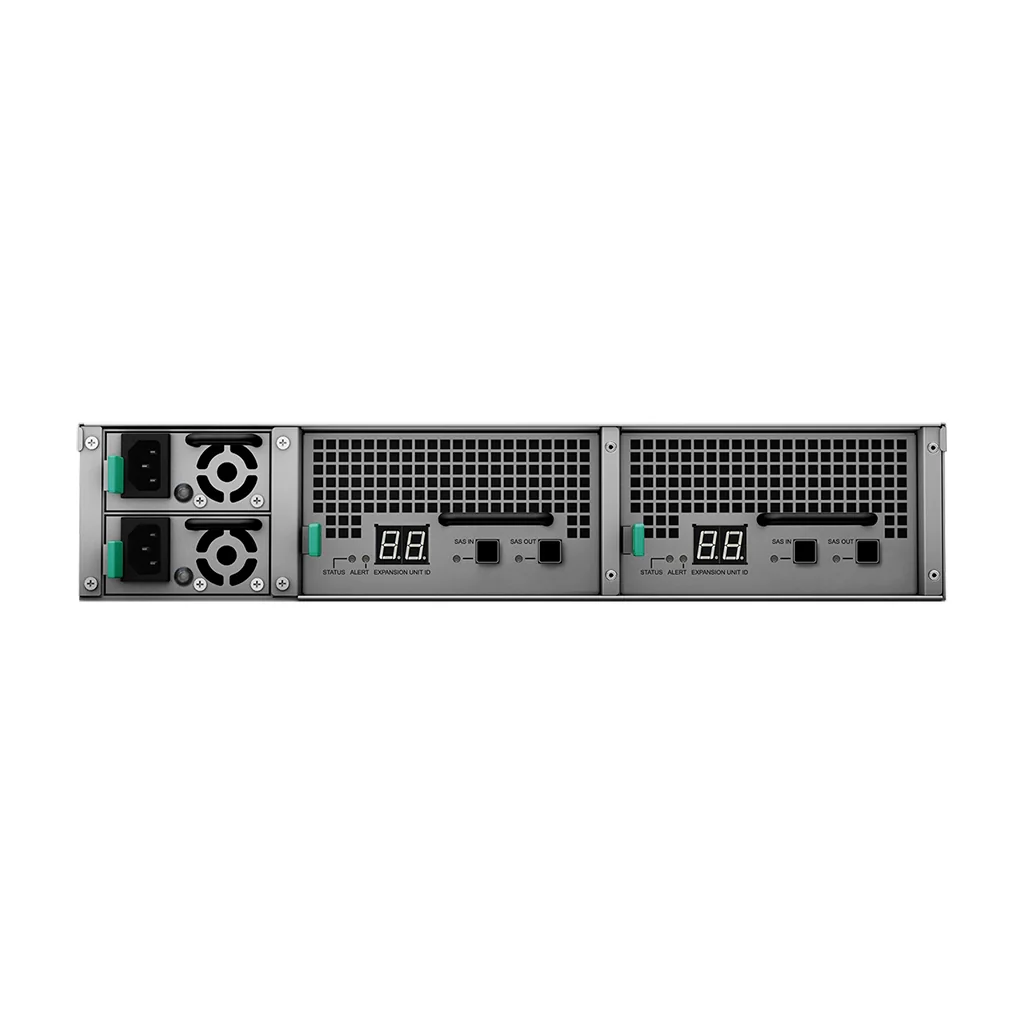

SAS IN-port	2
SAS OUT-port	2
Appearance
Size (Height × Width × Depth)	88 mm x 430.5 mm x 692 mm
Size (Height x Width x Depth) (with server ears)	88 mm x 482 mm x 724 mm
Weight	18.2 kg
Rack Installation Support	4-post 19" rack (Synology Rail Kit - )
Power
Power Supply Unit / Adapter	500 W
AC Input Power Voltage	100V to 240V AC
Power Frequency	50/60 Hz, Single Phase
Power Consumption	299.79 W (Access)
British Thermal Unit	1022.93 BTU/hr (Access)
Temperature
Operating Temperature	0°C to 35°C (32°F to 95°F)
Storage Temperature	-20°C to 60°C (-5°F to 140°F)
Operating Humidity	8% to 80% RH
Storage Humidity	5% to 95% RH
Others
System Fan	60 mm x 60 mm x 4 pcs
Noise Level	60.9 dB(A)
