SA series · SA3610

Synology SA3610 12-bay storage system

Name: Synology SA3610 12-bay storage system
Brand: Synology
SKU: SA3610
Price: 18999.00 AUD
Availability: BackOrder

Flexible petabyte-scale storage for growing storage needs

$18,999.00inc. GST

Available to orderShipped from distributor

Australian stock, GST tax invoice
Genuine Synology, full local warranty
Dispatched in 1 business day when in stock
Ask a question about this model

Processor: Intel Xeon D-1567
Memory: 16 GB DDR4 ECC RDIMM
Bays: 12 × 3.5" SAS/SATA HDD or 2.5" SAS/SATA SSD
Max bays with expansion: 96 (RX1222sas × 7)
1GbE LAN ports: 4
10GbE LAN ports: 2

Data sheet and downloads on synology.com

Flexibly expand storage capacity

Scale up your SA3610 and SA3410 flexibly to meet growing data demands whenever needed. Increase your storage capacity by adding up to seven 12-bay RX1222sas expansion units as your deployment grows.

Networking capabilities

Built-in dual 10GbE RJ-45 ports allow for high-speed network transmission right out of the box. Users can also boost network redundancy and bandwidth by adding optional 10/25/40GbE and Fibre Channel adapter cards into the two available PCIe 3.0 expansion slots.

Centralized monitoring and management

Monitor and manage your Synology fleet from a central interface, on-prem or in the cloud.

Synology has got you covered

The SA3610 and SA3410 are backed by Synology's 5-year limited warranty, including technical support and hardware replacement services to maximize your return on investment and ensure continued high-quality performance.

About the SA3610

The extensive scaling capabilities of the SA3610 enable enterprise data centers, large production studios, and growing businesses to meet their increasing data storage needs by accessing over 1 PB of raw storage capacity on demand. SA3610 delivers stable high throughput, perfect for smooth ingestion of large data volumes, including backups, and video recording or serving tasks. Hardware and software safeguards ensure maximum data and service availability, as well as reliable recovery options in case of disaster or attack.

Key points

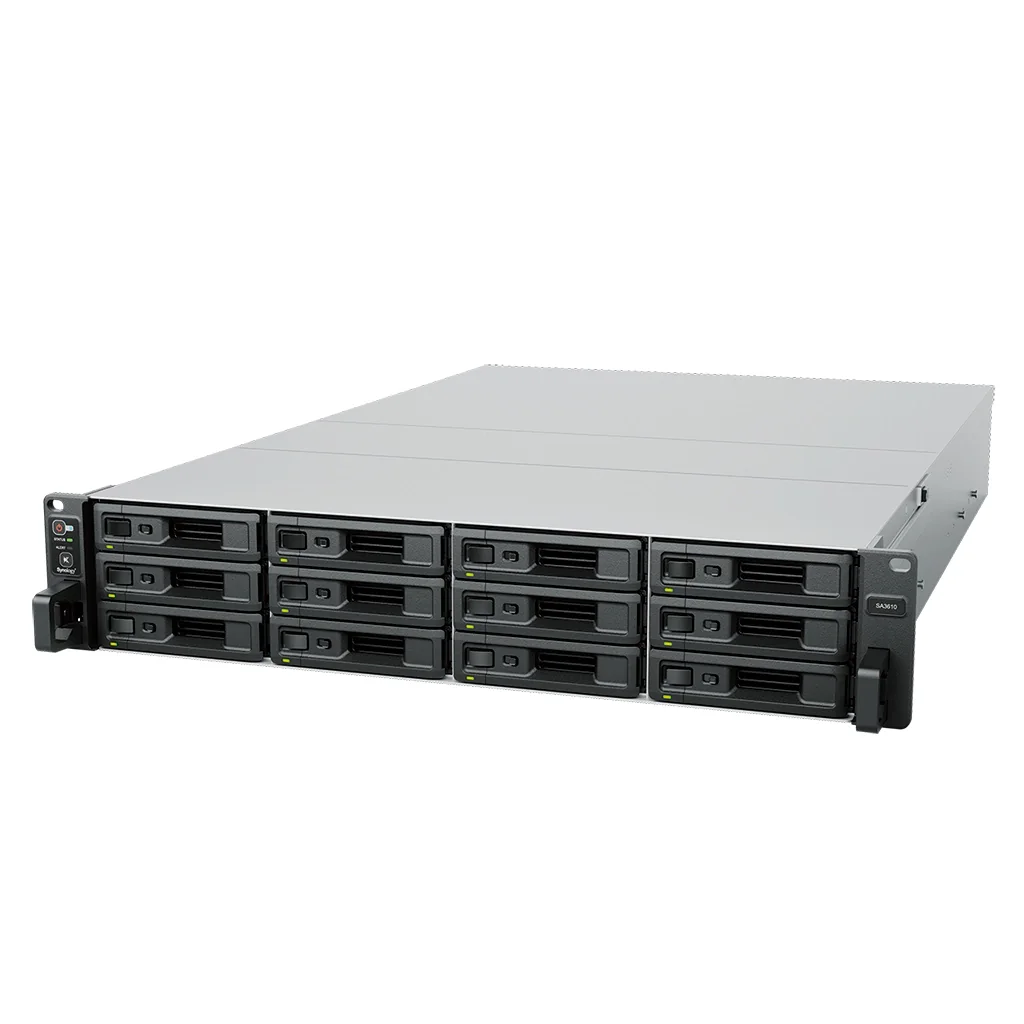

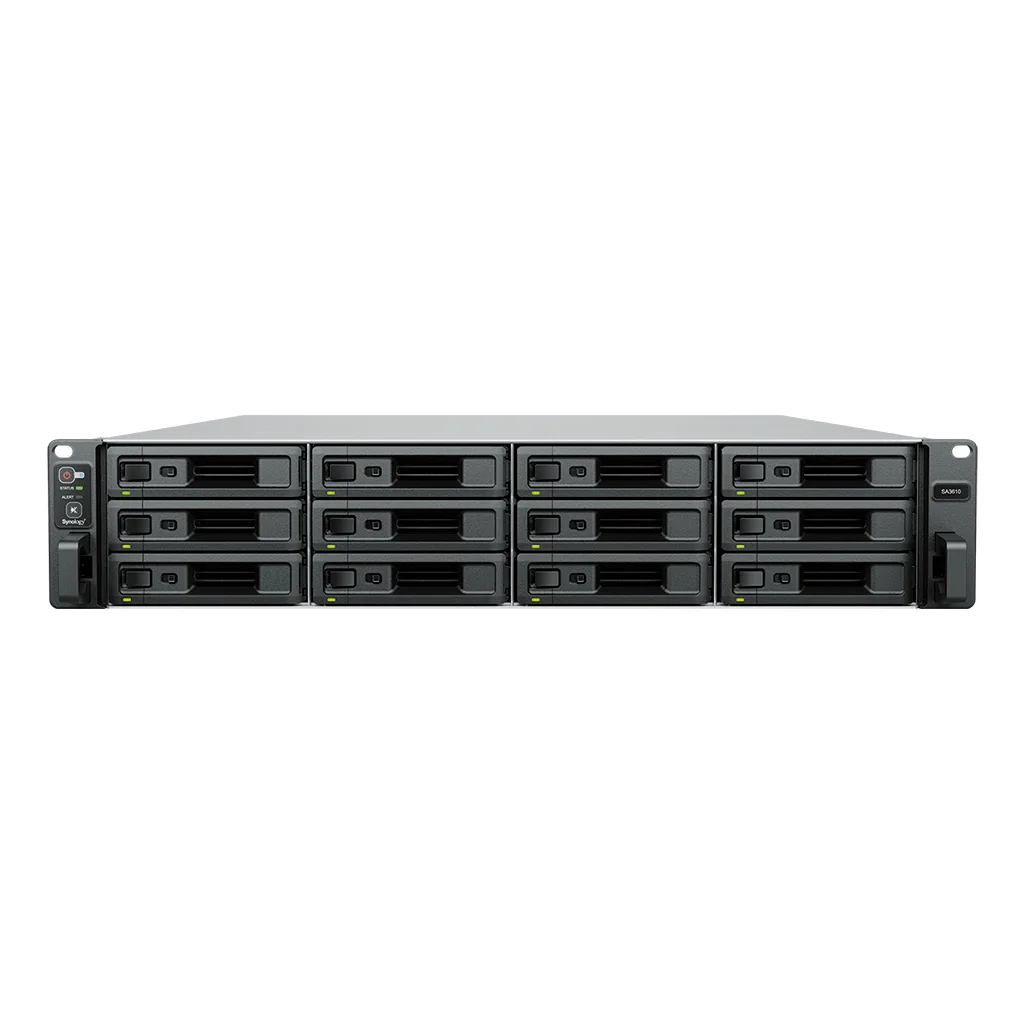

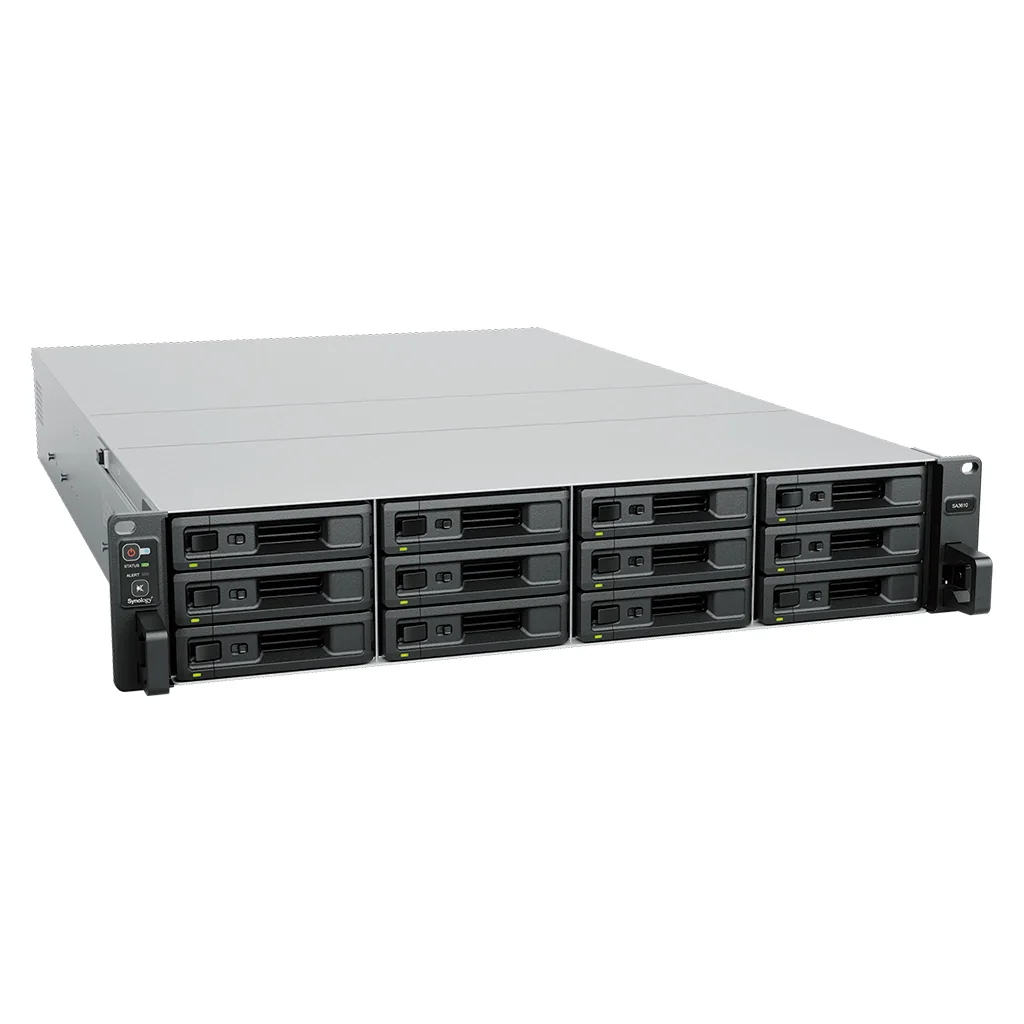

12-bay 2U rackmount NAS
Intel Xeon D-1567 12-core / 24-thread processor
16 GB DDR4 ECC RDIMM memory (expandable to 128 GB)
Dual 10GbE and quad 1GbE RJ-45 network ports
Supports SSD read/write cache acceleration
Dual PCIe Gen3 x8 expansion slots for high-speed networking and storage upgrades
Expandable up to 96 drive bays with Synology RX1222sas expansion units
Supports up to 1 PB single volume size and enterprise-scale storage deployments

Specifications

As published by Synology for the SA3610. Confirm the latest data sheet before relying on a figure for a tender.

CPU
CPU Model	Intel Xeon D-1567
CPU Quantity	1
CPU Cores	12
CPU Threads	24
CPU Architecture	64-bit
CPU Frequency	2.1 (base) / 2.7 (turbo) GHz
Memory
System Memory	16 GB DDR4 ECC RDIMM
Memory Module Pre-installed	16 GB (16 GB × 1)
Total Memory Slots	4
Maximum Memory Capacity	128 GB (32 GB × 4)
Storage
Drive Bays	12 × 3.5" SAS/SATA HDD or 2.5" SAS/SATA SSD
Maximum Drive Bays with Expansion Unit	96 (RX1222sas × 7)

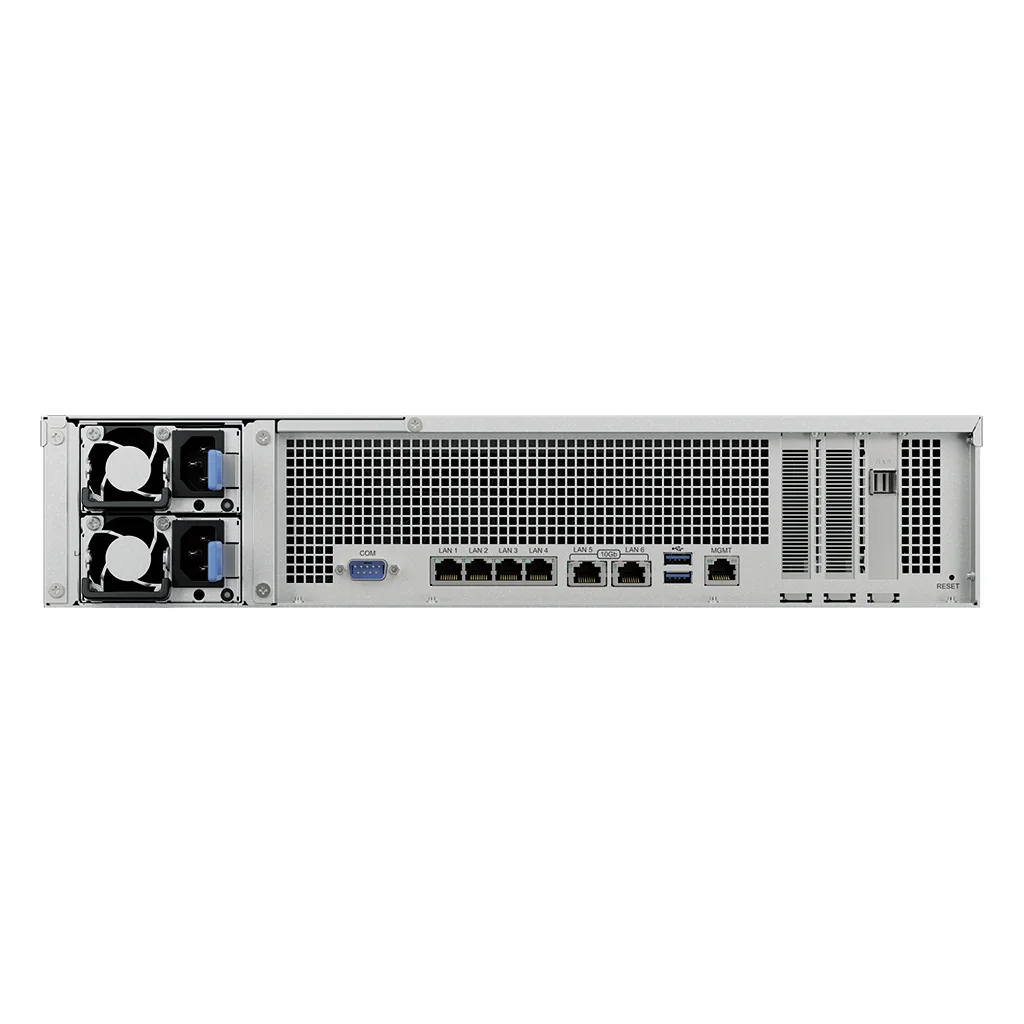

External Ports
RJ-45 1GbE LAN Port	4
RJ-45 10GbE LAN Port	2
Out-of-Band Management LAN Port	1
Max. Number of LAN Ports	15
USB 3.2 Gen 1 Port	2
Expansion Port	1
Expansion Port Type	Mini-SAS HD
PCIe
PCIe Expansion	2 × Gen3 x8 slots (x8 link)
Appearance
Form Factor (RU)	2U
Size (Height × Width × Depth)	88 mm × 482 mm × 724 mm
Weight	14.5 kg
Rack Installation Support	4-post 19" rack (Synology Rail Kit - )
Others
System Fan	80 mm × 80 mm × 4 pcs
Fan Speed Mode	Full-Speed Mode Cool Mode Quiet Mode
Noise Level	49.8 dB(A)
Power Supply Unit / Adapter	550 watts
AC Input Power Voltage	100V to 240V AC
Power Frequency	50/60 Hz, Single Phase
Power Consumption	137.54 watts (Access) 58.23 watts (HDD Hibernation)
British Thermal Unit	469.30 BTU/hr (Access) 198.68 BTU/hr (HDD Hibernation)
Temperature
Operating Temperature	0°C to 35°C (32°F to 95°F)
Storage Temperature	-20°C to 60°C (-5°F to 140°F)
Operating Humidity	8% to 80% RH
Storage Humidity	5% to 95% RH
Certification
	FCC CE BSMI VCCI RCM UKCA EAC CCC KC UL
Warranty
	5 Years
Environment
	RoHS Compliant
Packaging Content
	Main Unit × 1 Accessory Pack × 1 AC Power Cord × 2 Quick Installation Guide × 1
Optional Accessories
	DDR4 ECC RDIMM: / Expansion Units: Enterprise Series 3.5" SAS HDD: Enterprise Series 3.5" SATA HDD: Enterprise Series 2.5" SATA SSD: M.2 SSD & 10GbE Combo Adapter Card: M.2 SSD Adapter Card: 25GbE Network Interface Card: 10GbE Network Interface Card: / / Rail Kit Sliding:
