Unified Controller · UC3200

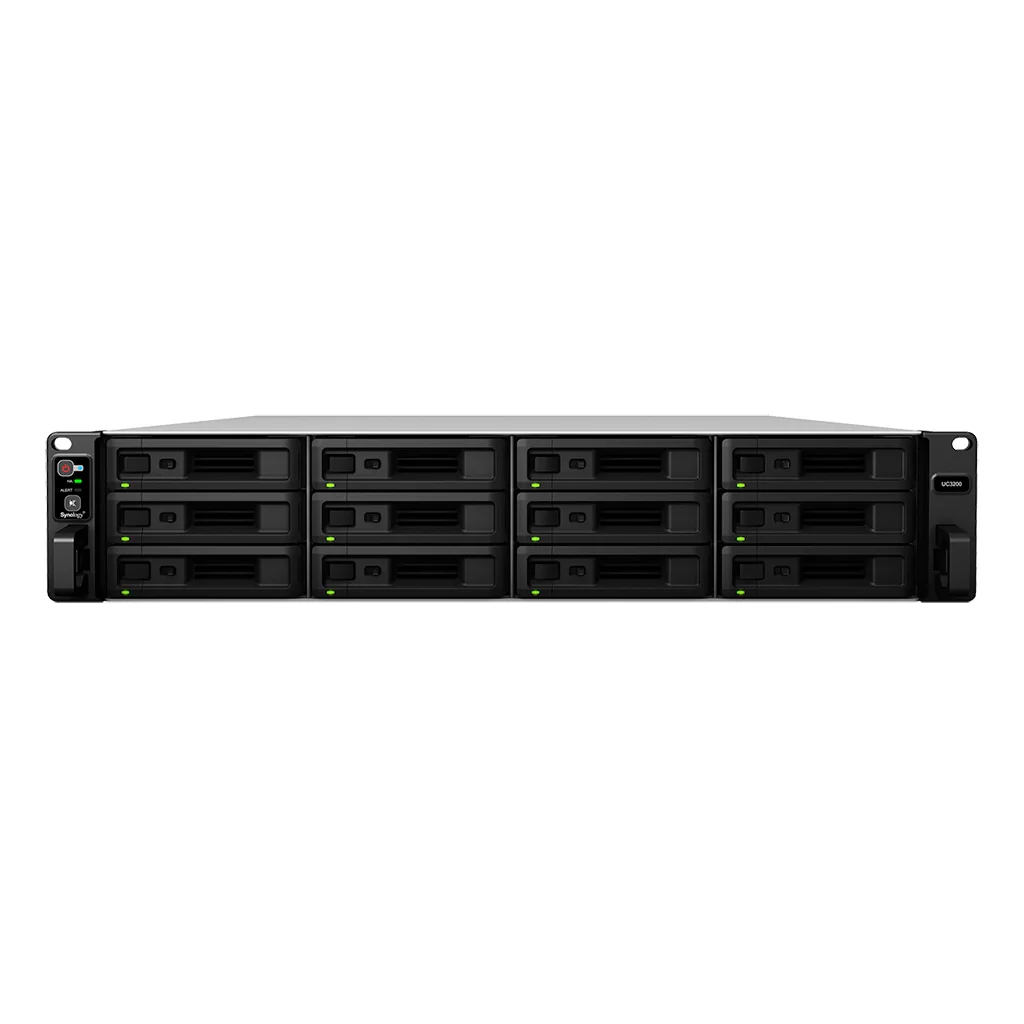

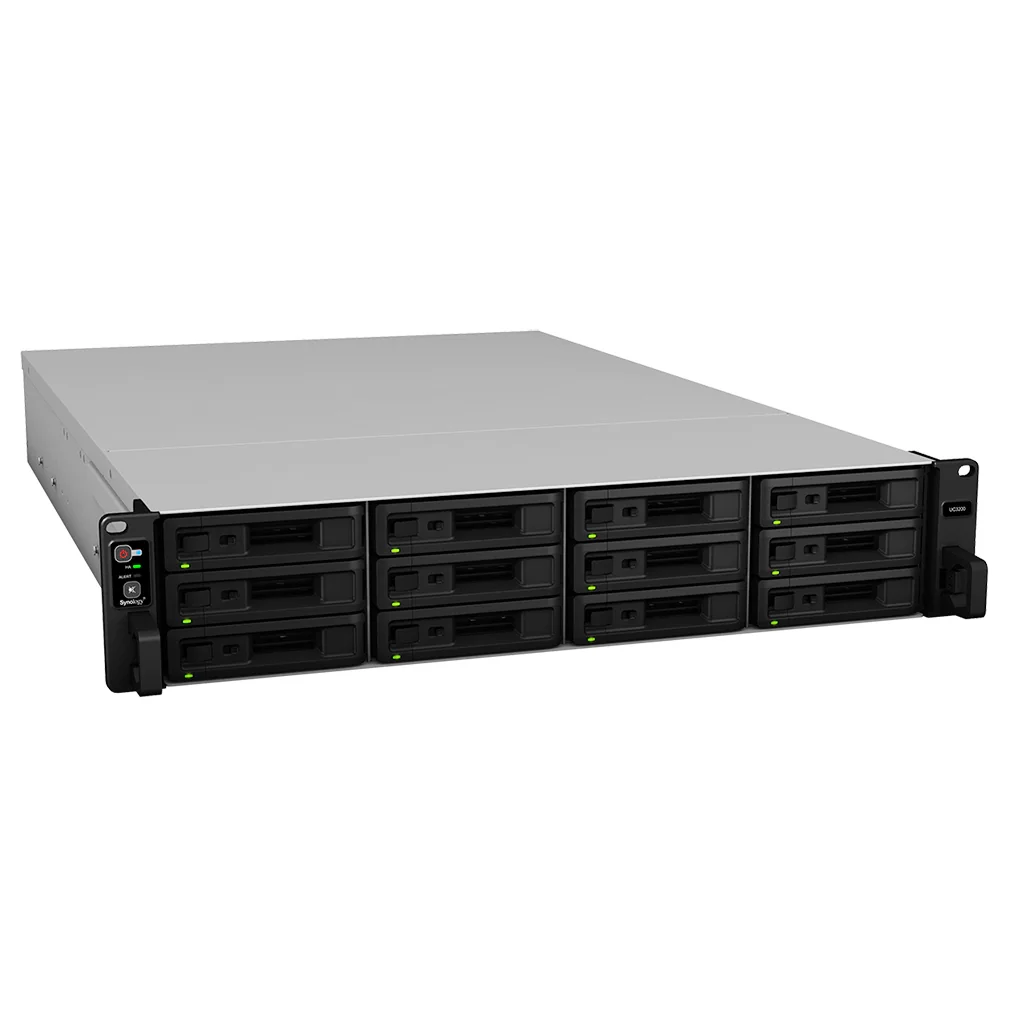

Synology UC3200 12-bay unified controller
Active-active SAN for mission-critical environments
$16,238.60inc. GST
Available to orderShipped from distributor
- Australian stock, GST tax invoice
- Genuine Synology, full local warranty
- Dispatched in 1 business day when in stock
- Ask a question about this model
- Processor
- Intel Xeon D-1521
- Memory
- 8 GB DDR4 ECC UDIMM (per controller)
- Bays
- 12
- Max bays with expansion
- 36 (RXD1219sas x 2)
- 1GbE LAN ports
- 2 (with Link Aggregation / Failover support) (per controller)
- 10GbE LAN ports
- 1 (per controller)
Delivering reliable, highly available SAN services
Realizing high-availability architecture in just one single chassis, the two controllers in Synology UC3200 work simultaneously and can automatically fail over to each other in the event of disaster, delivering services without any interruptions.
A system built for iSCSI and Fibre Channel
DSM UC, an operating system designed to ease the learning curve, allows you to manage the two controllers from one single portal. The built-in monitor applications display the status at a glance and send prompt notifications when important events occur, so that IT administrators can stay alert to potential problems and respond in the shortest time possible.
A unified interface for intuitive management Cutting-edge LUN features Advanced LUN functionality significantly improves VM performance and offers lightning-fast snapshot creation, recovery, and cloning, as well as VMware VAAI and Windows ODX support. Intuitive management A streamlined management interface makes connection and permission management exceptionally easy, even in large-scale SAN environments. For large and small deployments Support for iSCSI as well as Fibre Channel means that Synology storage systems integrate as easily in smaller setups as in enterprise environments. Disaster-proof your critical data
Snapshot Replication is put in place with the support of Btrfs file system, offering schedulable and near-instantaneous data protection. Supporting up to 4,096 system-wide snapshots for local volumes or offsite servers, UC3200 brings application-aware snapshot protection and instant recovery of virtual machines in iSCSI LUNs in the event of a disaster.
5-year warranty
At Synology, we are committed to product innovation and quality. Synology guarantees a robust and reliable data management experience with a 5-year limited warranty, providing responsive technical support and hardware replacement services to maximize your return on investment.
About the UC3200
Synology UC3200 is designed for high-availability SAN environments, Synology Unified Controller UC3200 offers active-active architecture for non-distruptive iSCSI service. It provides resilient data protection solutions with a simplified management interface while maximising service uptime for critical services. UC3200 is backed by Synology's 5-year limited warranty Note - aged stock stock on stock on hand only. Enquire for a Project Quote
Key points
- High performance, active-active storage solution to provide non-disruptive iSCSI services
- Over 140,000 4K Random Write IOPS enterprise-class performance with low latency
- Flexible capacity able to scale up to 36 drives with RXD1219sas expansion units
- Virtualization-ready with VMware vSphere, Microsoft Hyper-V, Citrix XenServer and OpenStack Cinder compatibility
- Resilient cache protection mechanism to prevent data loss
- Instant data protection with built-in snapshot and replication technologies
- Simple and unified user interface to effortlessly manage data and storage tasks
- Backed by Synology's 5-year limited warranty
- Processor
- Armed with Intel® Xeon® D-1521 4-core 2.4 GHz processor burst up to 2.7 GHz, UC3200’s dual CPUs provide enterprise-class performance of 140,000 4K random write IOPS with low latency.
- 4 x DDR4 memory slots
- 8GB ECC UDIMM, expandable up to 64GB to boost system performance.
- Fan
- Redundant, modularized fans for easy maintenance and replacement, minimizing service downtime.
Specifications
As published by Synology for the UC3200. Confirm the latest data sheet before relying on a figure for a tender.
| Controller | |
|---|---|
| Number of Controller Module | 2 |
| CPU | |
| CPU Model | Intel Xeon D-1521 |
| CPU Quantity | 1 (per controller) |
| CPU Core | 4 |
| CPU Architecture | 64-bit |
| CPU Frequency | 2.4 (base) / 2.7 (turbo) GHz |
| Memory | |
| System Memory | 8 GB DDR4 ECC UDIMM (per controller) |
| Memory Module Pre-installed | 8 GB (8 GB x 1) (per controller) |
| Total Memory Slots | 4 (per controller) |
| Maximum Memory Capacity | 64 GB (16 GB x 4) (per controller) |
| Storage | |
| Drive Bays | 12 |
| Maximum Drive Bays with Expansion Unit | 36 (RXD1219sas x 2) |
| Compatible Drive Type | 2.5” dual port SAS SSD 2.5” dual port SAS HDD 3.5” dual port SAS HDD |

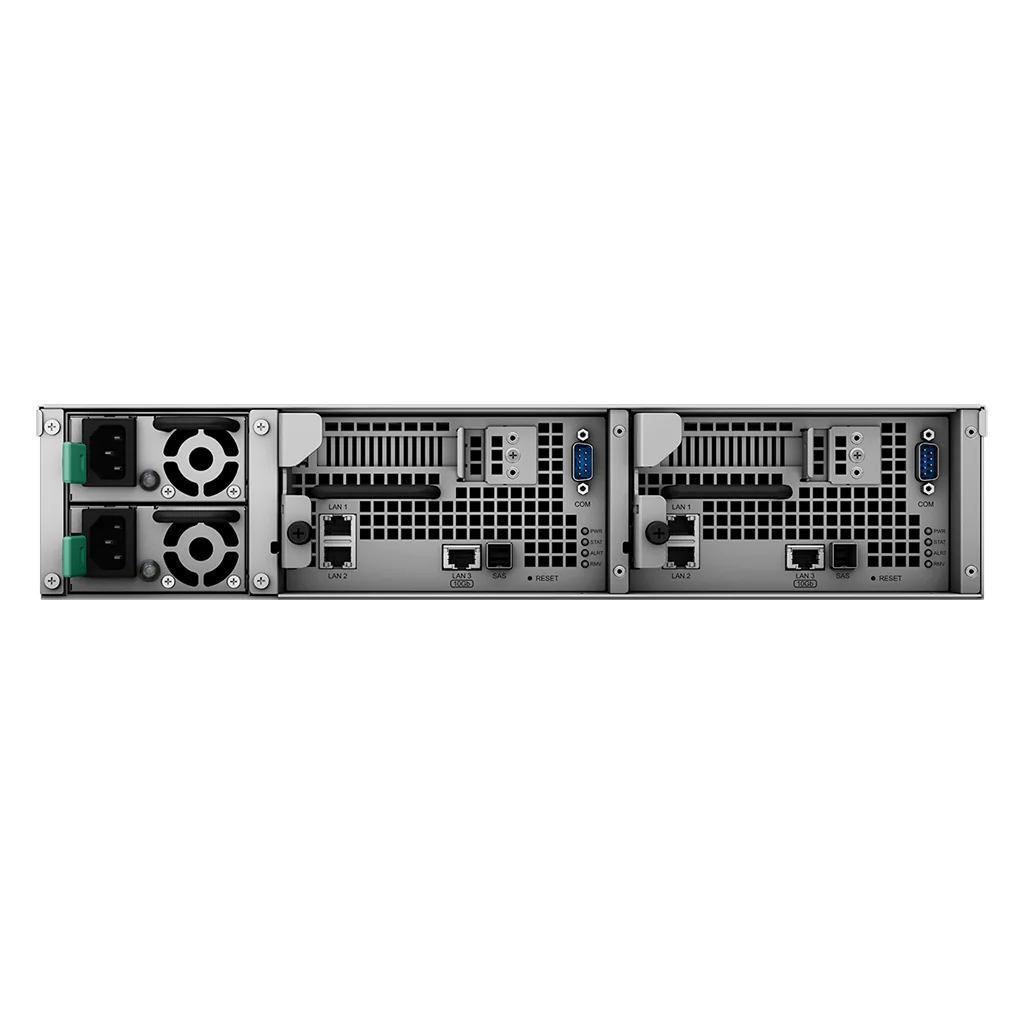

| External Ports | |
| RJ-45 1GbE LAN Port | 2 (with Link Aggregation / Failover support) (per controller) |
| RJ-45 10GbE LAN Port | 1 (per controller) |
| PCIe | |
| PCIe Expansion | 1 x Gen3 x8 slot (x8 link) (per controller) |
| Add-In-Card Support | 10GbE NIC 25GbE NIC FC HBA |
| Internal Drives | Btrfs |
| Appearance | |
| Size (Height x Width x Depth) | 88 mm x 430.5 mm x 692 mm |
| Size (Height x Width x Depth) (with server ears) | 88 mm x 482 mm x 724 mm |
| Weight | 19.7 kg |
| Rack Installation Support | 4-post 19" rack (Synology Rail Kit - ) |
| Others | |
| System Fan | 60 mm x 60 mm x 2 (per controller) |
| Fan Speed Mode | Full-Speed Mode Cool Mode Quiet Mode |
| Noise Level | 51.3 dB(A) |
| Power Supply Unit / Adapter | 500W |
| AC Input Power Voltage | 100 V to 240 V AC |
| Power Frequency | 50/60Hz, Single Phase |
| Power Consumption | 417.48 W (Access) |
| British Thermal Unit | 1425.45 BTU/hr (Access) |
| Temperature | |
| Operating Temperature | 0°C to 35°C (32°F to 95°F) |
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) |
| Relative Humidity | 5% to 95% RH |
| Warranty | |
| Optional Accessories | |
| Storage Management | |
| Maximum Single Volume Size | 200 TB (32 GB memory required) 108 TB |
| Maximum Internal Volume Number | 32 |
| Maximum iSCSI Target Number | 128 |
| Maximum LUN | 128 |
| Maximum Number of Snapshots per Advanced LUN | 256 |
| Supported RAID Type | Basic JBOD RAID F1 RAID 0 RAID 1 RAID 5 RAID 6 RAID 10 |
| RAID Migration | Basic to RAID 1 Basic to RAID 5 RAID 1 to RAID 5 |
| Volume Expansion with Larger HDDs | RAID F1 RAID 1 RAID 5 RAID 6 RAID 10 |
| Volume Expansion by Adding a HDD | JBOD RAID F1 RAID 5 RAID 6 |
| Global Hot Spare Supported RAID Type | RAID F1 RAID 1 RAID 5 RAID 6 RAID 10 |
| Account & Shared Folder | |
| Maximum Local User Accounts | 65 |
| Virtualization | |
| VMware vSphere | ESXi 8.0 U2, ESXi 8.0 U1, ESXi 8.0, ESXi 7.0 U3, ESXi 7.0 U2, ESXi 7.0 U1, ESXi 7.0, ESXi 6.7 U3, ESXi 6.7 U2, ESXi 6.7 U1, ESXi 6.7, ESXi 6.5 U3, ESXi 6.5 U2, ESXi 6.5 U1, ESXi 6.5 |
| Microsoft Hyper-V | Windows Server 2022, Windows Server 2019, Windows Server 2016 |
| Citrix XenServer | XenServer 7 |
| OpenStack | Cinder |
| Snapshot Replication | |
| Maximum Number of Replication | 32 |
| Maximum of System Snapshots | 4,096 |
| General Specifications | |
| Networking Protocols | iSCSI Telnet SSH SNMP Fibre Channel |
| Supported Language | English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svenska, Nederlands, Русский, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Český, ภาษาไทย, 日本語, 한국어, 繁體中文, 简体中文 |
