Unified Controller · UC3400

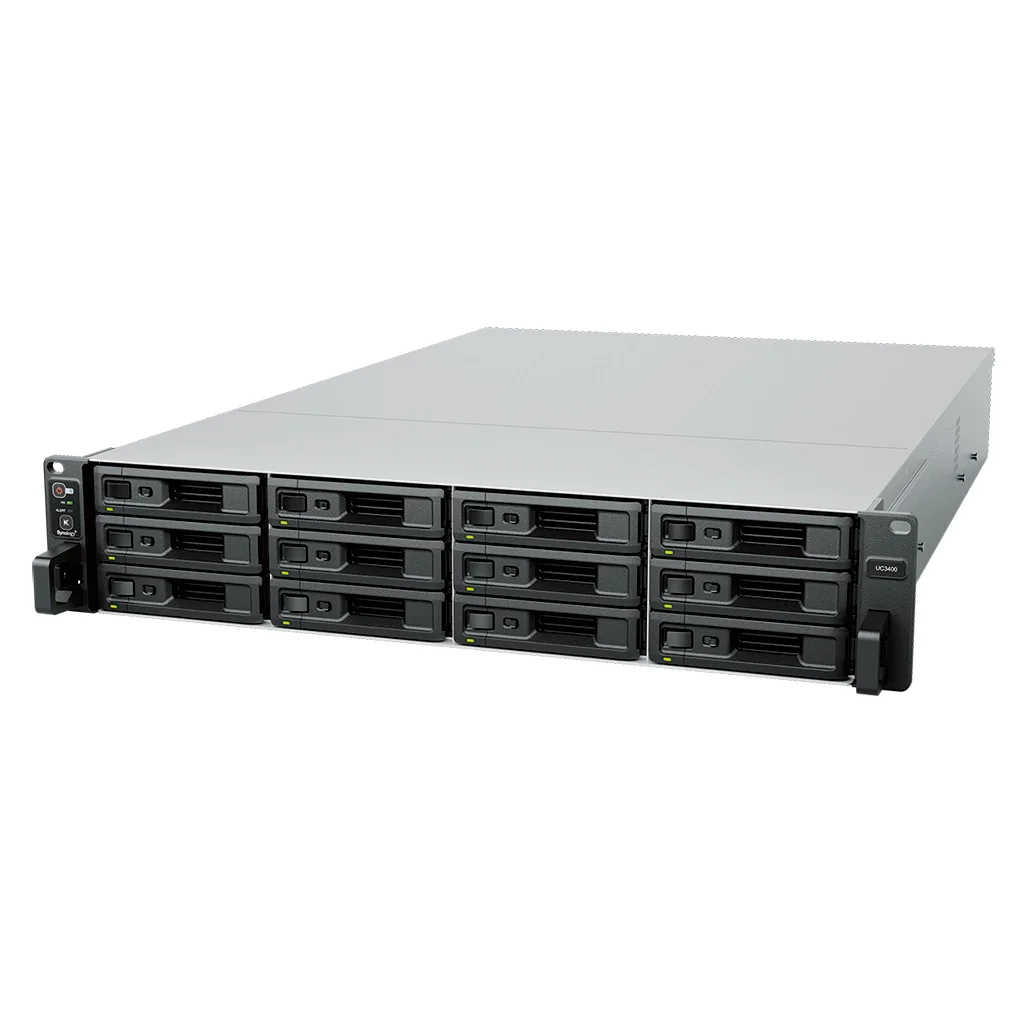

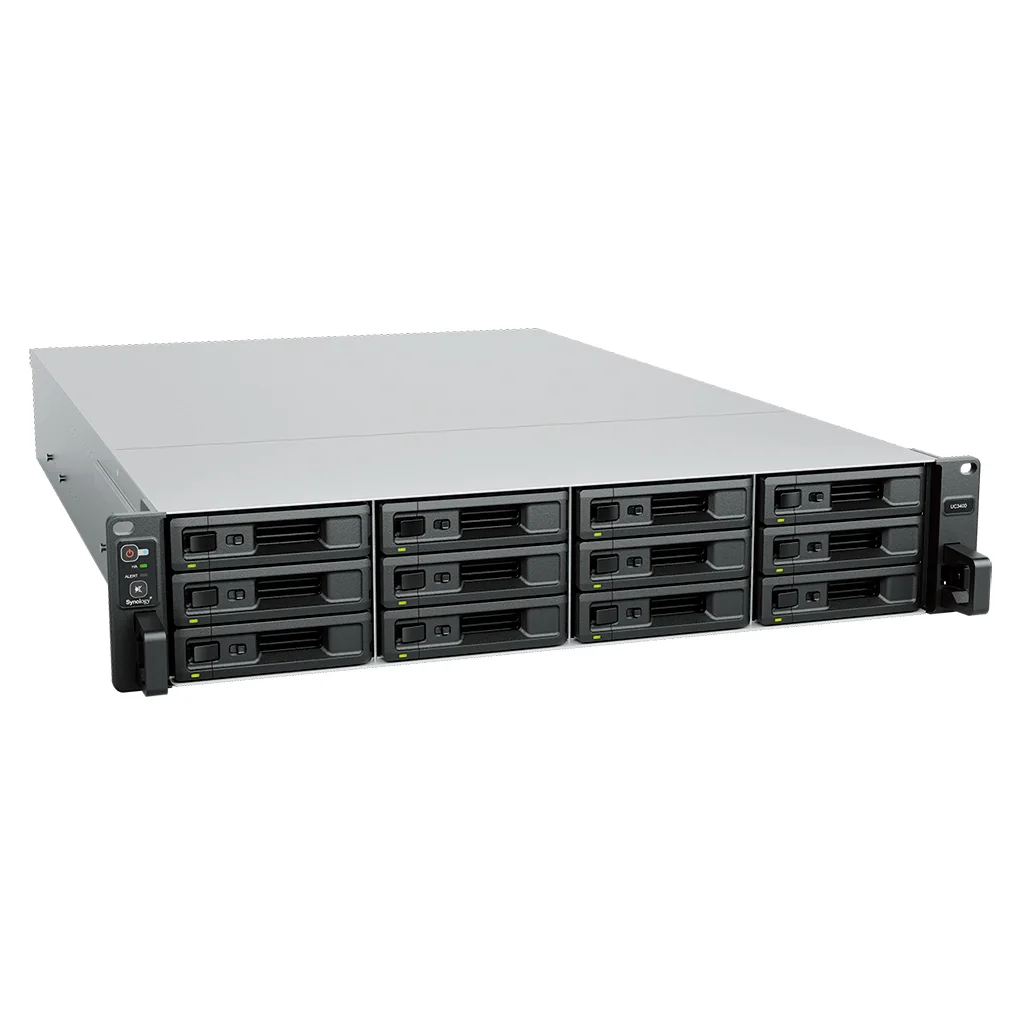

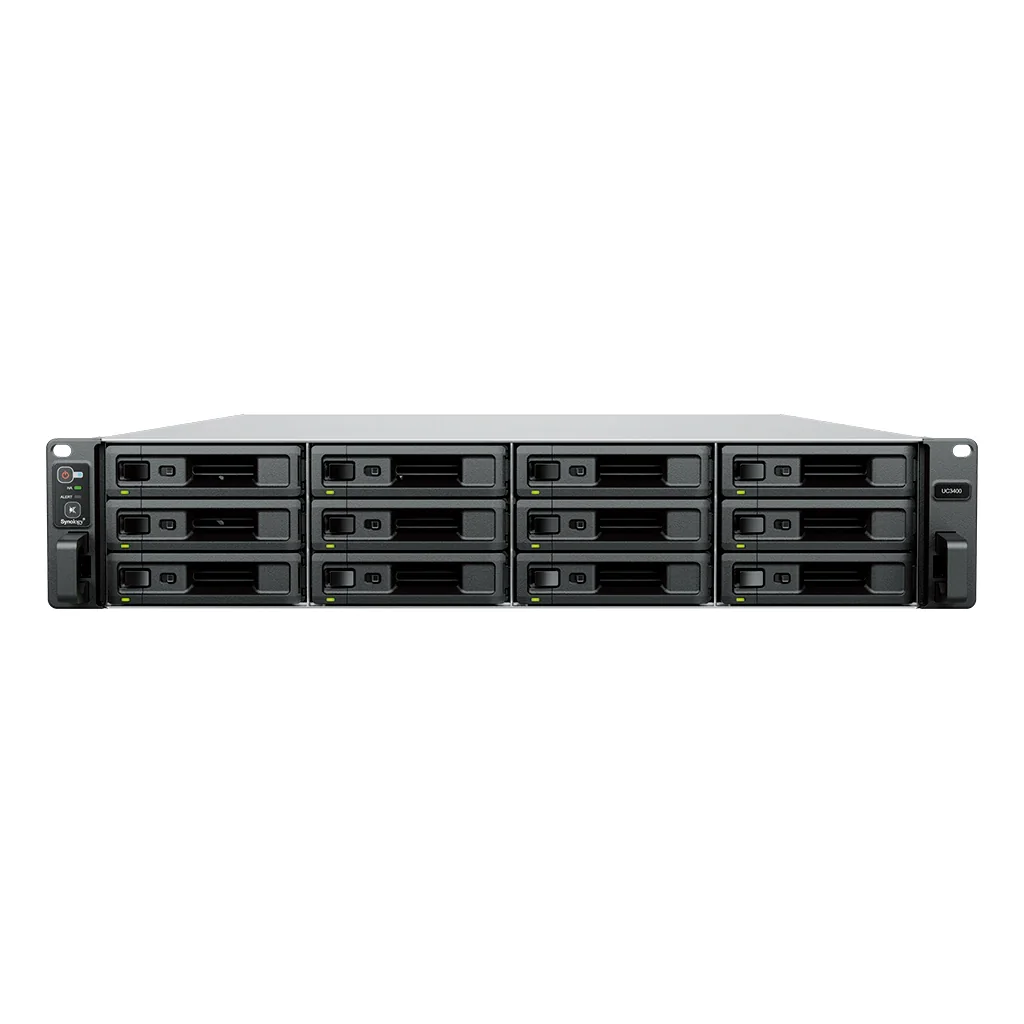

Synology UC3400 12-bay unified controller

Name: Synology UC3400 12-bay unified controller
Brand: Synology
SKU: UC3400
Price: 20849.00 AUD
Availability: BackOrder

Active-active SAN for mission-critical environments

$20,849.00inc. GST

Available to orderShipped from distributor

Australian stock, GST tax invoice
Genuine Synology, full local warranty
Dispatched in 1 business day when in stock
Ask a question about this model

Processor: Intel Xeon D-1541
Memory: 8 GB DDR4 ECC UDIMM (per controller)
Bays: 12
Max bays with expansion: 36 (RXD1219sas x 2)
1GbE LAN ports: 2 (with Link Aggregation / Failover support) (per controller)
10GbE LAN ports: 1 (per controller)

Data sheet and downloads on synology.com

Reliability and High Availability

Active-active dual controllers work simultaneously to ensure zero downtime in the event of a controller failure while the non-transparent bridge (NTB) enables inter-domain communication to maximize the protection of in-flight data.

Active-Active SAN with enterprise-class performance

Designed for mission-critical environments, UC3400 is a high-availability SAN solution supporting Fibre Channel (FC) and iSCSI protocols. With over 180,000 4K random write IOPS, it supports a wide range of demanding workloads.

Flexible network options

Boost network from 10GbE and dual 1GbE RJ-45 ports to 10/25 Gb Ethernet cards or 16 Gb Fibre channel host bus adapters on each controller.

Storage expansion

Simple capacity expansion of up to 576 TB of raw storage is available with two Synology RXD1219sas Expansion Units.

5-year warranty

At Synology, we are committed to product innovation and quality. Synology guarantees a robust and reliable data management experience with a 5-year limited warranty, providing responsive technical support and hardware replacement services to maximize your return on investment.

About the UC3400

Synology UC3400 is designed for high-availability SAN environments, featuring an active-active architecture that ensures uninterrupted block storage services, while providing resilient data protection and a simplified management interface. With its ability to maximize service uptime for critical services, the UC3400 is ideal for organizations that require a mission-critical storage system.

Key points

Over 690,000/180,000 4K random read/write IOPS3 support high-performance applications
Virtualization-Ready Compatible with VMware vSphere, Microsoft Hyper-V, Citrix XenServer, and OpenStack Cinder
Flexible capacity able to scale up to 36 drives with RXD1219sas expansion units
Resilient cache protection mechanism to prevent data loss
Instant data protection with built-in snapshot and replication technologies
Simple and unified user interface to effortlessly manage data and storage tasks
Backed by Synology's 5-year limited warranty

Specifications

As published by Synology for the UC3400. Confirm the latest data sheet before relying on a figure for a tender.

Controller
Number of Controller Module	2
CPU
CPU Model	Intel Xeon D-1541
CPU Quantity	1 (per controller)
CPU Core	8
CPU Architecture	64-bit
CPU Frequency	2.1 (base) / 2.7 (turbo) GHz
Memory
System Memory	8 GB DDR4 ECC UDIMM (per controller)
Memory Module Pre-installed	8 GB (8 GB x 1) (per controller)
Total Memory Slots	4 (per controller)
Maximum Memory Capacity	64 GB (16 GB x 4) (per controller)
Storage
Drive Bays	12
Maximum Drive Bays with Expansion Unit	36 (RXD1219sas x 2)
Compatible Drive Type	2.5” dual port SAS SSD 3.5” dual port SAS HDD

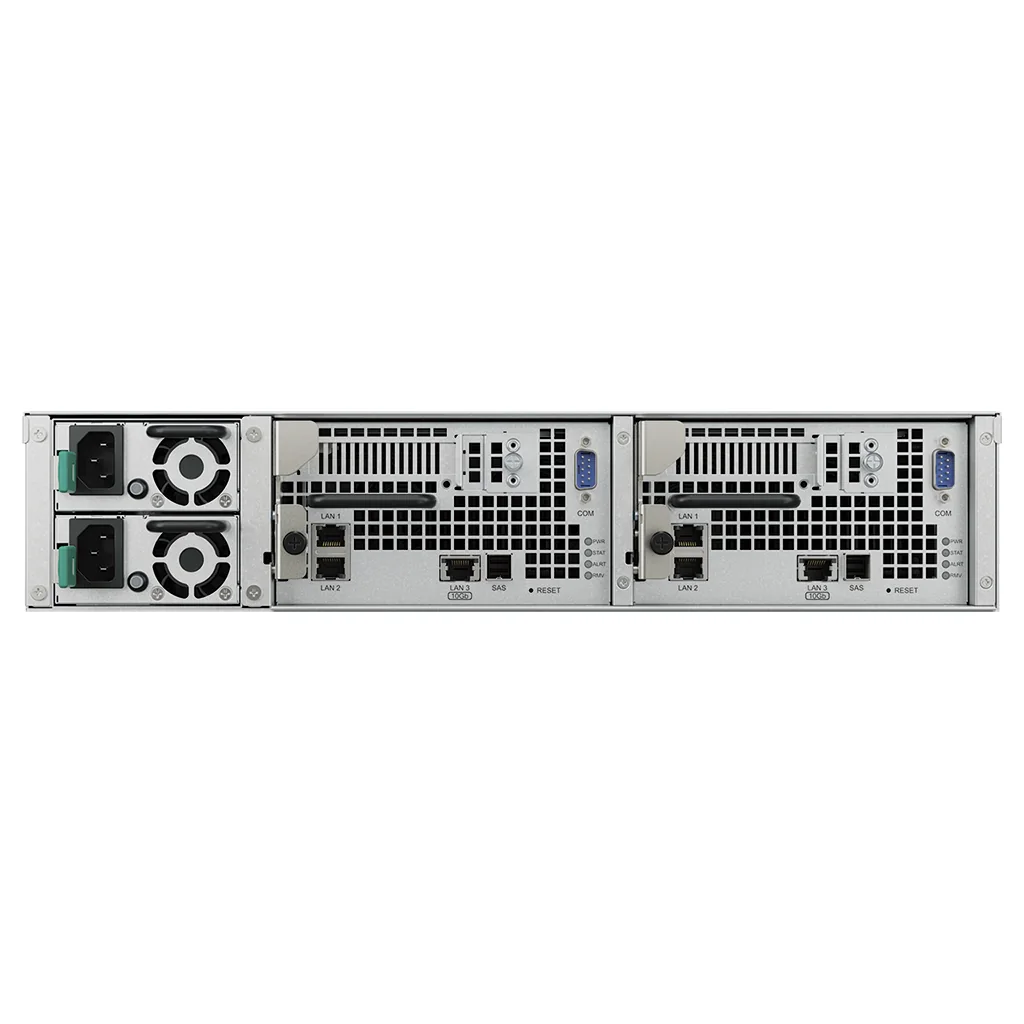

External Ports
RJ-45 1GbE LAN Port	2 (with Link Aggregation / Failover support) (per controller)
RJ-45 10GbE LAN Port	1 (per controller)
PCIe
PCIe Expansion	1 x Gen3 x8 slot (x8 link) (per controller)
Add-In-Card Support	10GbE NIC 25GbE NIC FC HBA

Internal Drives	Btrfs
Appearance
Size (Height x Width x Depth)	88 mm x 430.5 mm x 692 mm
Size (Height x Width x Depth) (with server ears)	88 mm x 482 mm x 724 mm
Weight	19.7 kg
Rack Installation Support	4-post 19" rack (Synology Rail Kit - )
Others
System Fan	60 mm x 60 mm x 2 (per controller)
Fan Speed Mode	Full-Speed Mode Cool Mode Quiet Mode
Noise Level	51.3 dB(A)
Power Supply Unit / Adapter	500W
AC Input Power Voltage	100 V to 240 V AC
Power Frequency	50/60Hz, Single Phase
Power Consumption	239.25 W (Access)
British Thermal Unit	816.35 BTU/hr (Access)
Temperature
Operating Temperature	0°C to 35°C (32°F to 95°F)
Storage Temperature	-20°C to 60°C (-5°F to 140°F)
Relative Humidity	5% to 95% RH
Warranty
Optional Accessories
Storage Management
Maximum Single Volume Size	200 TB (32 GB memory required) 108 TB
Maximum Internal Volume Number	32
Maximum iSCSI Target Number	128
Maximum LUN	128
Maximum Number of Snapshots per Advanced LUN	256
Supported RAID Type	Basic JBOD RAID F1 RAID 0 RAID 1 RAID 5 RAID 6 RAID 10
RAID Migration	Basic to RAID 1 Basic to RAID 5 RAID 1 to RAID 5
Volume Expansion with Larger HDDs	RAID F1 RAID 1 RAID 5 RAID 6 RAID 10
Volume Expansion by Adding a HDD	JBOD RAID F1 RAID 5 RAID 6
Global Hot Spare Supported RAID Type	RAID F1 RAID 1 RAID 5 RAID 6 RAID 10
Account & Shared Folder
Maximum Local User Accounts	65
Virtualization
VMware vSphere	ESXi 8.0 U2, ESXi 8.0 U1, ESXi 8.0, ESXi 7.0 U3, ESXi 7.0 U2, ESXi 7.0 U1, ESXi 7.0, ESXi 6.7 U3, ESXi 6.7 U2, ESXi 6.7 U1, ESXi 6.7, ESXi 6.5 U3, ESXi 6.5 U2, ESXi 6.5 U1, ESXi 6.5
Microsoft Hyper-V	Windows Server 2022
Citrix XenServer	XenServer 8, Citrix Hypervisor 8.2 LTSR CU1
OpenStack	Cinder
Snapshot Replication
Maximum Number of Replication	64
Maximum of System Snapshots	4,096
General Specifications
Networking Protocols	iSCSI Telnet SSH SNMP Fibre Channel
Supported Language	English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svenska, Nederlands, Русский, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Český, ภาษาไทย, 日本語, 한국어, 繁體中文, 简体中文

Shipping

In-stock items leave our Australian warehouse within one business day. Order-in items usually arrive in 3 to 7 business days from the distributor. Shipping is calculated at checkout from the weight of your order (this item: 28.64 kg).
