Deep Learning NVR · DVA1622

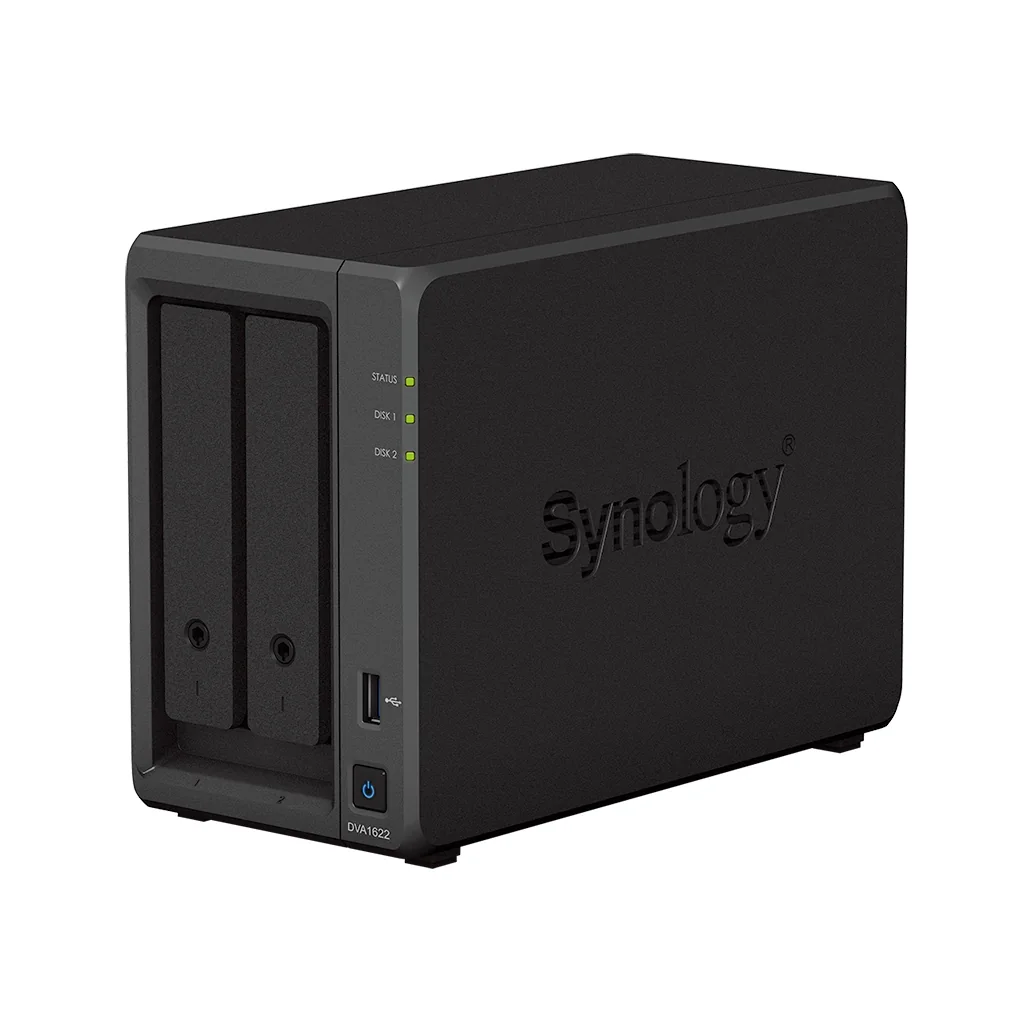

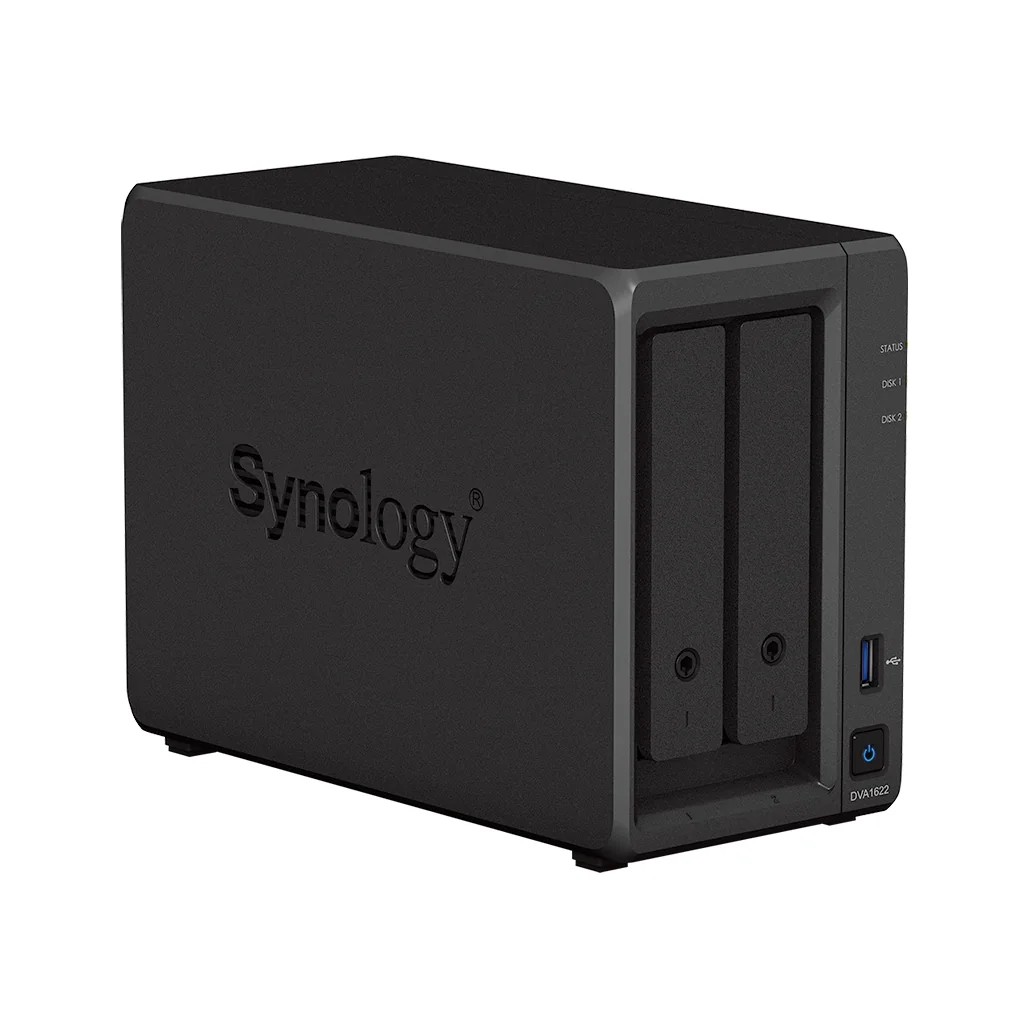

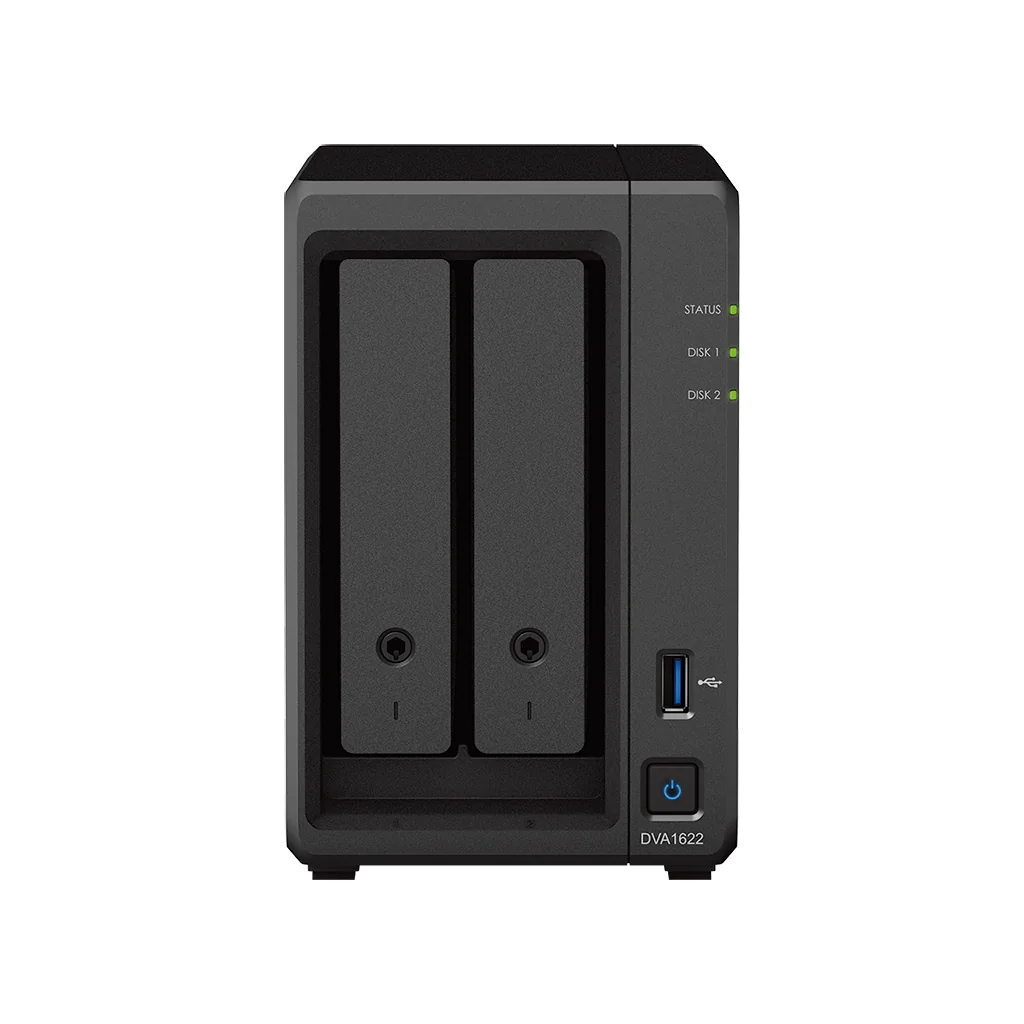

Synology DVA1622 deep learning NVR

Name: Synology DVA1622 deep learning NVR
Brand: Synology
SKU: DVA1622
Price: 2000.60 AUD
Availability: InStock

AI-powered surveillance tailored for compact deployments

$2,000.60inc. GST

In stock, 4 available

Australian stock, GST tax invoice
Genuine Synology, full local warranty
Dispatched in 1 business day when in stock
Ask a question about this model

Processor: Intel Celeron J4125
Memory: 6 GB DDR4 non-ECC
Bays: 2
1GbE LAN ports: 1

Data sheet and downloads on synology.com

Smarter surveillance

Combine the comprehensive video management features in with advanced analytics to speed up incident response and collect better business intelligence.

Flexible monitoring capabilities

Leverage highly configurable options and automation features to act quickly when potentially dangerous situations arise.

Comprehensive access options

Enjoy a uniform monitoring experience wherever you are and adapt your surveillance system to your needs — not the other way around.

About the DVA1622

Synology NVR DVA1622 is a 2-bay desktop recording server that gives home and small business users access to fast, smart, and accurate video surveillance powered by deep learning-based algorithms. Built-in automated event detection helps safeguard properties by detecting people, vehicles, or objects and alerting staff when selfconfigured rules or thresholds are breached.

Key points

A compact two-bay NDAA compliant surveillance solution with AI-powered video analytic capability to replace NVR1218
Standalone network video recorder with 4K HDMI output, supporting H.264/H.265 camera feed playback.
Supports up to 16 camera feeds with 2 real-time deep video analytic tasks.
Backed by the latest Surveillance Station 9.0 supporting face recognition, license plate recognition, people and vehicle detection, people and vehicle counting, and intrusion detection.
8 Surveillance Device Licenses included by default.
Powered by Intel Celeron J4125 4-core processor and equipped with 6 GB DDR4 memory (non-upgradable).

Specifications

As published by Synology for the DVA1622. Confirm the latest data sheet before relying on a figure for a tender.

CPU
CPU Model	Intel Celeron J4125
CPU Architecture	64-bit
CPU Frequency	Quad Core 2.0 (base) / 2.7 (burst) GHz
Video Outputs
Video Outputs	HDMI X 1
Supported Video Resolution	1080p 60Hz
Memory
System Memory	6 GB DDR4 non-ECC
Memory Module Pre-installed	6 GB (2 GB + 4 GB)
Storage
Drive Bays	2
Compatible Drive Type	3.5" SATA HDD 2.5" SATA SSD
External Ports
RJ-45 1GbE LAN Port	1
USB 3.0 Port	2
Appearance
Size (Height x Width x Depth)	166 mm x 106 mm x 223 mm
Weight	1.51 kg
Others
System Fan	92 mm x 92 mm x 1 pcs
Fan Speed Mode	Cool Mode Quiet Mode Full-Speed Mode
Noise Level	18.4 dB(A)
Power Supply Unit / Adapter	60 W
AC Input Power Voltage	100 V to 240 V AC
Power Frequency	50/60 Hz, Single Phase
Power Consumption	19.93 W (Access) 4.02 W (HDD Hibernation)
British Thermal Unit	67.96 BTU/hr (Access) 13.71 BTU/hr (HDD Hibernation)
Temperature
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20°C to 60°C (-5°F to 140°F)
Relative Humidity	5% to 95% RH
Warranty
Video Analysis
Deep Video Analytics Features	People and vehicle detection (with license plate recognition) People counting Vehicle counting Intrusion detection Face recognition
Deep Video Analytics Tasks	People and vehicle detection (with license plate recognition): up to 2 tasks People counting: up to 2 tasks Vehicle counting: up to 2 tasks Intrusion detection (detecting specific objects): up to 2 tasks Face recognition: up to 1 task
Maximum Number of Registrations Supported by Face Database	10,000
General Specifications
Default Licenses	8
Suggested Maximum IP Cameras and Total FPS (H.264)	720p: 16 channels, 480 FPS 1080p: 16 channels, 285 FPS 3M: 16 channels, 160 FPS 5M: 12 channels, 120 FPS 4K: 8 channels, 80 FPS
Suggested Maximum IP Cameras and Total FPS (H.265)	720p: 16 channels, 480 FPS 1080p: 16 channels, 350 FPS 3M: 16 channels, 190 FPS 5M: 12 channels, 120 FPS 4K: 8 channels, 80 FPS
Video Codecs	H.264 H.264+ H.265 H.265+ MJPEG MPEG-4 MxPEG (not supported by Deep Video Analytics tasks)
Audio Codecs	AMR G711 G726 PCM

Internal Drives	Btrfs ext4
External Drives	Btrfs ext4 ext3 FAT NTFS HFS+ exFAT

Maximum Single Volume Size	108 TB
Maximum Internal Volume Number	64
Supported RAID Type	Synology Hybrid RAID Basic JBOD RAID 0 RAID 1
RAID Migration	Basic to RAID 1
Volume Expansion with Larger HDDs	Synology Hybrid RAID RAID 1
Volume Expansion by Adding a HDD	Synology Hybrid RAID

File Protocol	SMB/AFP/NFS/FTP/WebDAV

Maximum Local User Accounts	2,048
Maximum Local Groups	256
Maximum Shared Folder	512

Networking Protocols	SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV
Supported Browsers	Google Chrome
Supported Language	English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svenska, Nederlands, Русский, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Český, ภาษาไทย, 日本語, 한국어, 繁體中文, 简体中文

Maximum Connections	40
