Deep Learning NVR · DVA7400

Synology DVA7400 deep learning NVR

$18,299.00inc. GST

Available to orderShipped from distributor

Australian stock, GST tax invoice
Genuine Synology, full local warranty
Dispatched in 1 business day when in stock
Ask a question about this model

Processor: AMD V1780B
Memory: 16GB DDR4 ECC UDIMM
Bays: 12
10GbE LAN ports: 2

About the DVA7400

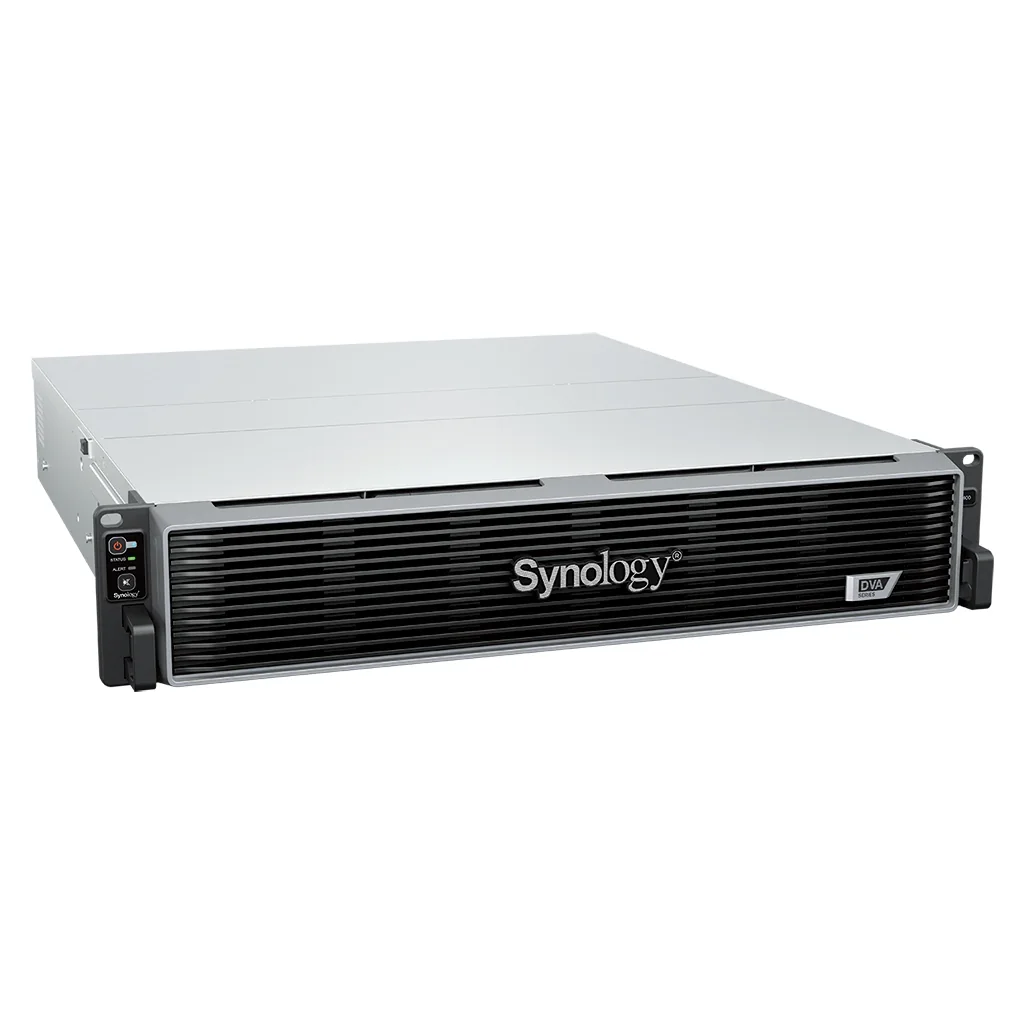

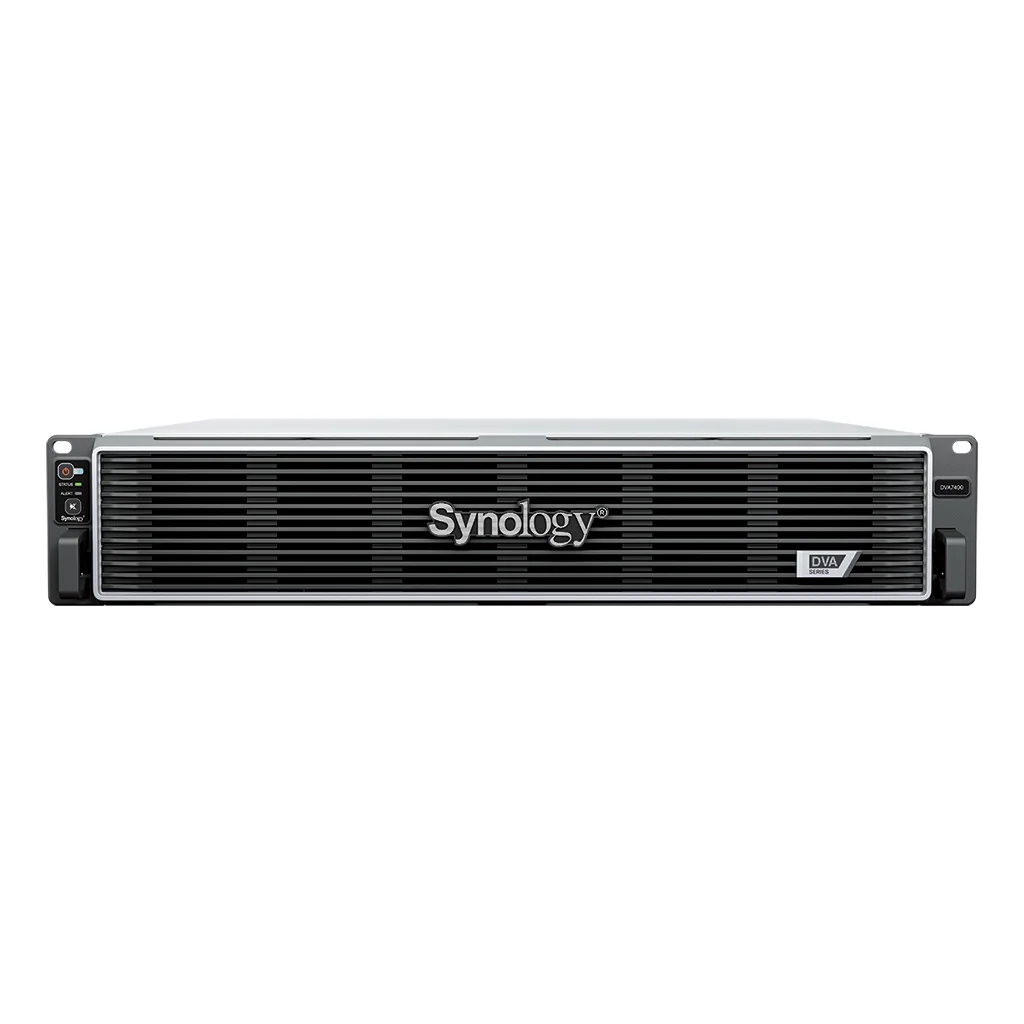

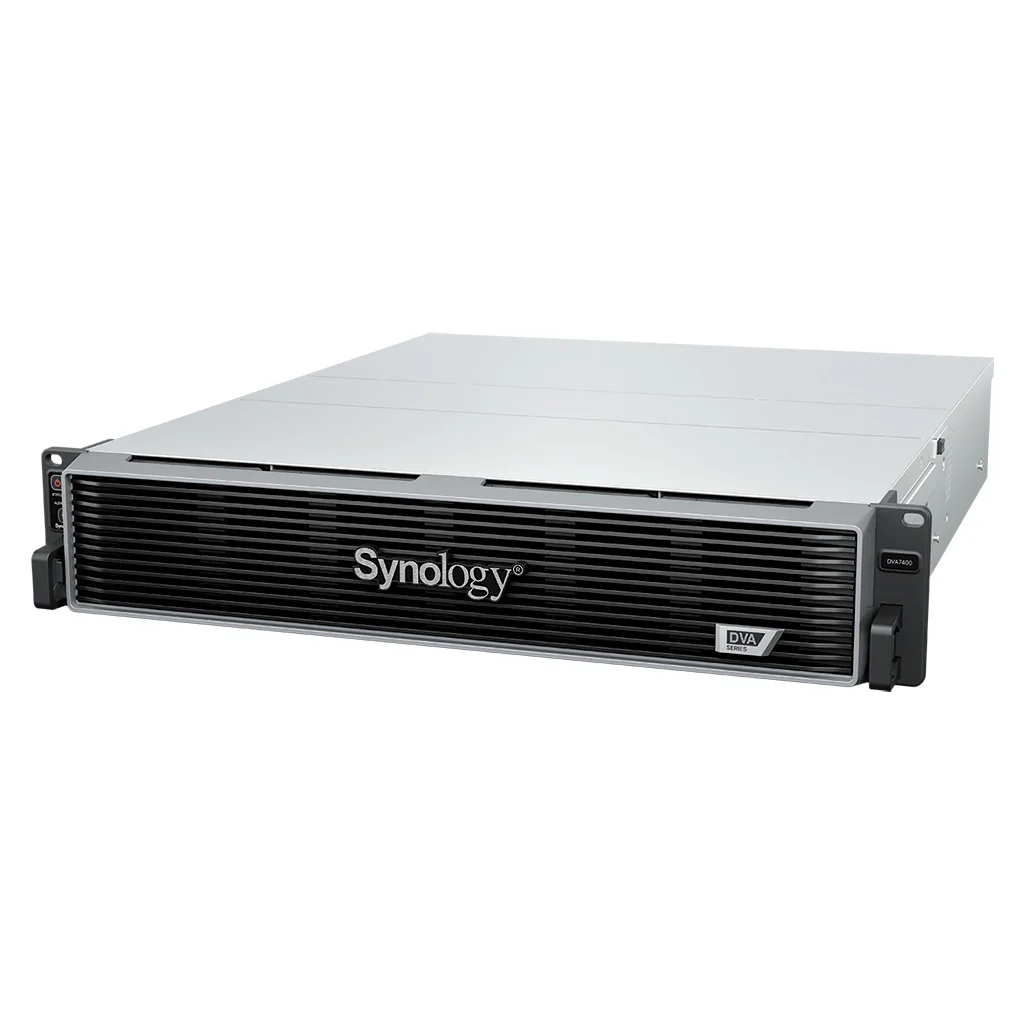

The Synology DVA7400 is a high-performance 12-bay rackmount NVR engineered for high-density monitoring environments that demand advanced AI analysis.

Key points

12-bay rackmount Deep Learning NVR
AMD V1780B quad-core processor
16 GB DDR4 memory (expandable to 32 GB)
Supports up to 100 IP camera channels
Up to 40 simultaneous AI video analytics tasks
Built-in Semantic Video Search with natural language queries
Dual 10GbE RJ-45 ports plus dedicated 1GbE management port
Advanced AI features including Face Recognition, License Plate Recognition, Intrusion Detection, and People & Vehicle Counting
Supports up to 200 TB single volume capacity
Semantic Video Search: Locate subjects across multiple cameras within seconds using natural language queries
Attribute Search: Filter by visual characteristics like clothing colour or vehicle type to immediately locate specific subjects
AI-Powered Analytics: License Plate Recognition, People & Vehicle Detection, and People & Vehicle Counting are all supported
High-Concurrency AI: Support up to 100 IP cameras and handle 40 simultaneous real-time video analytics tasks
Unified Centralized Management: Integrate fully with Surveillance Station for streamlined cross-site management and instant event handling

Specifications

As published by Synology for the DVA7400. Confirm the latest data sheet before relying on a figure for a tender.

CPU
CPU Model	AMD V1780B
CPU Architecture	64-bit
CPU Frequency	Quad Core 3.35 (base) / 3.6 (turbo) GHz
Memory
System Memory	16GB DDR4 ECC UDIMM
Memory Module Pre-installed	16GB
Total Memory Slots	2
Maximum Memory Capacity	32 GB (16 GB x 2)
Storage
Drive Bays	12
Compatible Drive Type	3.5" SATA HDD 2.5" SATA SSD
External Ports
Out-of-Band Management LAN Port	1
RJ-45 10GbE LAN Port	2
USB 3.0 Port	2
Appearance
Size (Height × Width × Depth)	88 mm x 482 mm x 578 mm
Weight	12.24 kg
Others
System Fan	60 mm x 60 mm x 38 mm x 3 pcs
Fan Speed Mode	Cool Mode Quiet Mode Full-Speed Mode
Noise Level	51.8 dB(A)
Power Supply Unit / Adapter	800 W
AC Input Power Voltage	100 V to 240 V AC
Power Frequency	50/60 Hz, Single Phase
Power Consumption	131.12 W (Access) 51.95 W (HDD Hibernation)
British Thermal Unit	447.12 BTU/hr (Access) 177.15 BTU/hr (HDD Hibernation)
Temperature
Operating Temperature	0°C to 35°C (32°F to 95°F)
Storage Temperature	-20°C to 60°C (-5°F to 140°F)
Relative Humidity	5% to 95% RH
Warranty
Video Analysis
Deep Video Analytics Features	Semantic Video Search Attribute Search People and vehicle detection (with license plate recognition) People counting Vehicle counting Intrusion detection Face recognition
Deep Video Analytics Tasks	People and vehicle detection: up to 40 tasks People counting: up to 40 tasks Vehicle counting: up to 40 tasks Intrusion detection: up to 40 tasks Face recognition: up to 20 tasks License plate recognition: up to 20 tasks
Semantic Video Search	up to 1,440 events per hour
Maximum Number of Registrations Supported by Face Database	10,000
General Specifications
Default Licenses	2
Maximum IP Cameras and Total FPS (H.264)	1080p: 100 channels, 1500 FPS 3M: 85 channels, 850 FPS 5M: 60 channels, 600 FPS 4K: 40 channels, 400 FPS
Maximum IP Cameras and Total FPS (H.265)	1080p: 100 channels, 3000 FPS 3M: 100 channels, 1400 FPS 5M: 85 channels, 850 FPS 4K: 50 channels, 500 FPS
Video Codecs	H.264 H.264+ H.265 H.265+ MJPEG MPEG-4
Audio Codecs	AMR G711 G726 PCM

Internal Drives	Btrfs
External Drives	Btrfs ext4 ext3 FAT32 NTFS HFS+ exFAT

Maximum Single Volume Size	108 TB 200 TB (32 GB memory required)
Maximum Internal Volume Number	32
Supported RAID Type	Synology Hybrid RAID Basic JBOD RAID 0 RAID 1 RAID 5 RAID 6 RAID 10
RAID Migration	Basic to RAID 1 Basic to RAID 5 RAID 1 to RAID 5 RAID 5 to RAID 6
Volume Expansion with Larger HDDs	Synology Hybrid RAID RAID 10 RAID 1 RAID 5 RAID 6
Volume Expansion by Adding a HDD	Synology Hybrid RAID JBOD RAID 5 RAID 6
Global Hot Spare Supported RAID Type	Synology Hybrid RAID RAID 1 RAID 5 RAID 6 RAID 10

File Protocol	SMB/AFP/NFS/FTP/WebDAV

Maximum Local User Accounts	2,048
Maximum Local Groups	256
Maximum Shared Folder	512

Networking Protocols	SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV
Supported Browsers	Google Chrome
Supported Language	English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svenska, Nederlands, Русский, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Český, ภาษาไทย, 日本語, 한국어, 繁體中文, 简体中文

Maximum Connections	40
