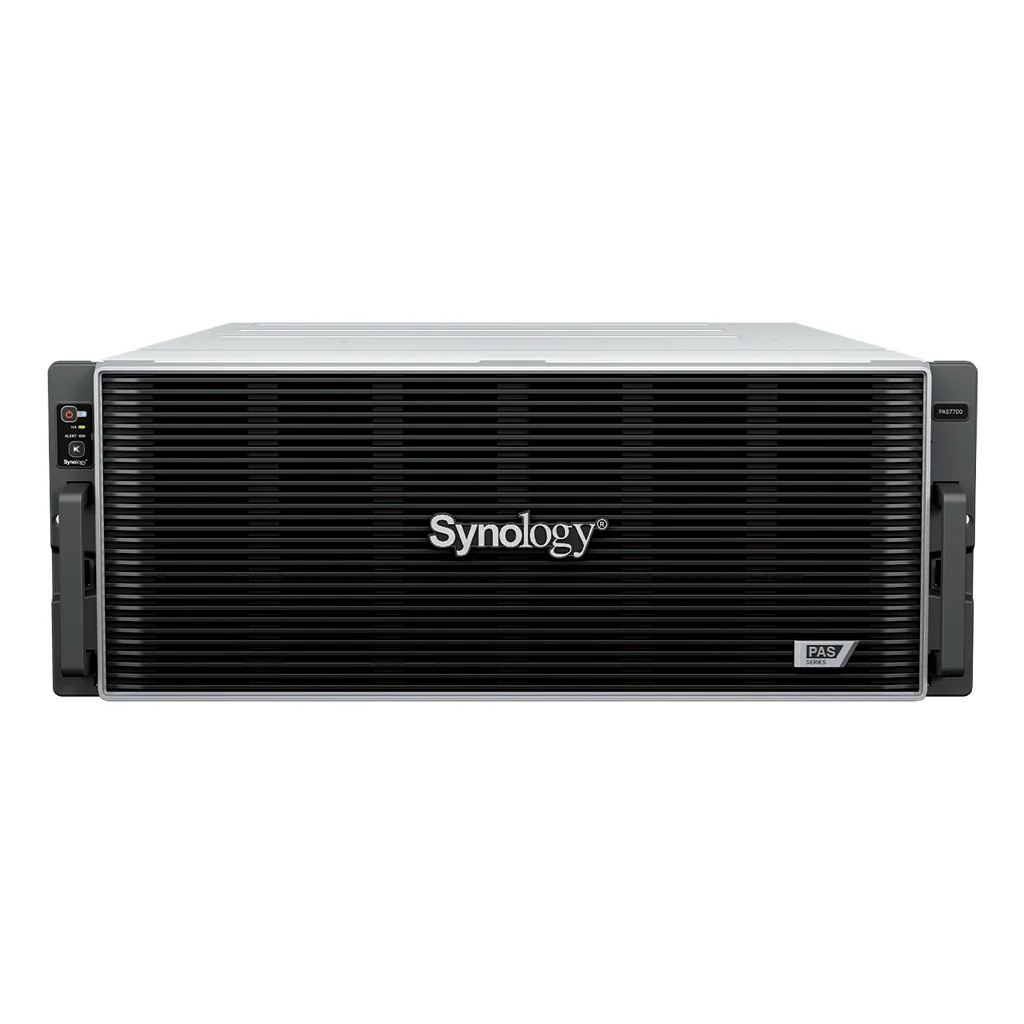

Synology PAS7700 SSD

Name: Synology PAS7700 SSD
Brand: Synology
SKU: PAS7700
Price: 136999.00 AUD
Availability: BackOrder

The Synology PAS7700 is an enterprise-grade, active-active NVMe all-flash storage system delivering up to 2M IOPS, 30GB/s throughput, and petabyte-scale capacity for mission-critical workloads.

$136,999.00inc. GST

Available to orderShipped from distributor

Australian stock, GST tax invoice
Genuine Synology, full local warranty
Dispatched in 1 business day when in stock
Ask a question about this model

Processor: AMD EPYC 7443P
Memory: 64 GB DDR4 ECC RDIMM (per controller)
Bays: 48
Max bays with expansion: 216 (PAX224 x 7)
1GbE LAN ports: 1 (per controller)
10GbE LAN ports: 2 (per controller)

Data sheet and downloads on synology.com

About the PAS7700

The Synology PAS7700 is a 48-bay NVMe storage platform engineered for enterprise workloads that require continuous availability, extremely high performance, and scalability without service interruption. Utilizing an activeactive architecture, it supports block and file protocols, petabyte-scale expansion, nondisruptive system upgrades, and support for Synology’s productivity suite and data management applications.

Key points

48-bay 4U NVMe all-flash storage system
Dual AMD EPYC 7443P 24-core processors (one per controller)
64 GB DDR4 ECC RDIMM memory per controller (expandable to 1 TB per controller)
Up to 2,000,000 4K random read/write IOPS
Active-active dual-controller architecture with dual 10GbE ports per controller
Supports NVMe-oF, NVMe-TCP, NVMe-FC, iSCSI, SMB, and NFS protocols
Expandable up to 216 NVMe SSD bays with Synology PAX224 expansion units
Supports up to 1.65 PB raw storage capacity

Specifications

As published by Synology for the PAS7700. Confirm the latest data sheet before relying on a figure for a tender.

Controller
Number of Controller Module	2
CPU
CPU Model	AMD EPYC 7443P
CPU Quantity	1 (per controller)
CPU Cores	24-core
CPU Architecture	64-bit
CPU Frequency	2.85 (base) / 4.0 (turbo) GHz
Memory
System Memory	64 GB DDR4 ECC RDIMM (per controller)
Memory Module Pre-installed	64 GB (64 GB x 1) (per controller)
Total Memory Slots	16 (per controller)
Maximum Memory Capacity	1024 GB (64 GB x 16) (per controller)
Storage
Drive Bays	48
Maximum Drive Bays with Expansion Unit	216 (PAX224 x 7)
Drive Type	2.5” U.3 NVMe SSD
External Ports
RJ-45 1GbE LAN Port	1 (per controller)
RJ-45 10GbE LAN Port	2 (per controller)
Out-of-Band Management LAN Port	1 (per controller)
Expansion Port	7 (per controller)
Expansion Port Type	Mini-SAS HD
PCIe
PCIe Expansion	1 x Gen4 x16 slot (x16link) 2 x Gen4 x8 slot (x8link) (per controller)
Appearance
Form Factor (RU)	4U
Size (Height × Width × Depth)	175.8 mm x 480.5 mm x 771 mm
Weight	38.2 kg
Rack Installation Support	4-post 19" rack (Synology Rail Kit - )
Others
System Fan	60 mm x 60 mm x 5 pcs
Fan Speed Mode	Full-Speed Mode Cool Mode Quiet Mode
Noise Level	66.1 dB(A)
Power Supply Unit / Adapter	2700W watts
AC Input Power Voltage	200V to 240V AC
Power Frequency	50/60 Hz, Single Phase
Power Consumption	1253.76 watts (Typical) 1460.64 watts (Full Loading)
British Thermal Unit	2668.97 BTU/hr (Typical)
Temperature
Operating Temperature	0°C to 35°C (32°F to 95°F)
Storage Temperature	-20°C to 60°C (-5°F to 140°F)
Relative Humidity	5% to 95% RH
Warranty
Optional Accessories
Storage Management
Maximum Single Volume Size	200 TB (32 GB memory required) 1 PB (64 GB memory required, for RAID 6 and RAID TP groups only)
Maximum Internal Volume Number	32
Supported RAID Type	RAID 5 RAID 6 RAID TP
File System
Internal Drives	Btrfs
File Services
File Protocol	SMB NFS
Maximum Number of SMB Connections (FSCT-Based) with RAM Expansion	12,800
Account & Shared Folder
Maximum Local User Accounts	16,000
Maximum Local Groups	512
Maximum Shared Folder	512
General Specifications
Supported Protocols	SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, NFS over RDMA, iSCSI, Fibre Channel, NVMe-FC, NVMe-TCP, NVMe over RDMA
Supported Browsers	Chrome Firefox Edge Safari
Supported Language	English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svenska, Nederlands, Русский, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Český, ภาษาไทย, 日本語, 한국어, 繁體中文, 简体中文
SAN Manager
Maximum iSCSI Target Number	256
Maximum NVMe-oF Subsystem Number	256
Maximum LUN	512
Maximum Namespace	512
Maximum vVols	1024
Snapshot Replication
Maximum Snapshots per Shared Folder	1,024
Maximum Snapshots per System	65,536
Maximum Number of Snapshots per Namespace	256
Maximum Number of Snapshots per LUN	256
Maximum of System Replication	256
Virtualization
VMware vSphere	ESXi 8.0 U3, ESXi 8.0 U2, ESXi 8.0 U1, ESXi 8.0
Microsoft Hyper-V	Windows Server 2025
Citrix XenServer	XenServer 8.4

Shipping

In-stock items leave our Australian warehouse within one business day. Order-in items usually arrive in 3 to 7 business days from the distributor. Shipping is calculated at checkout from the weight of your order (this item: 84 kg).
